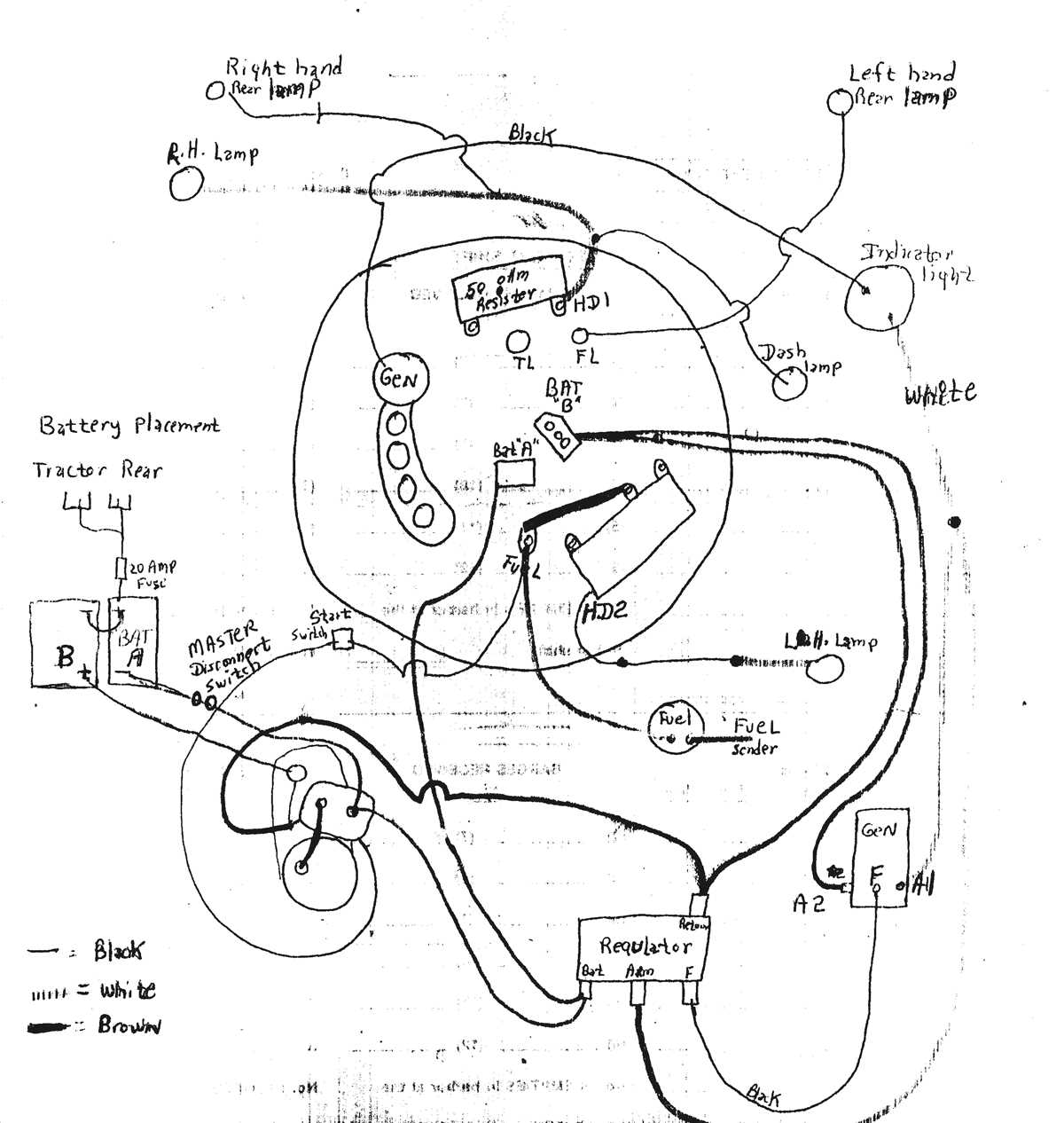

Use the factory electrical schematic matched to the exact tractor or mower model before touching any harness or connector. Machines from the well-known green-and-yellow manufacturer produced in Illinois often use 12-volt negative-ground systems, blade fuses rated between 10–30 A, and color-coded conductors that identify lighting, charging, ignition, and safety circuits. The correct circuit map allows quick identification of the alternator line, starter solenoid trigger lead, ignition switch terminals, and interlock switches tied to the seat, PTO, and brake pedal.
A reliable schematic usually shows terminal numbers, connector shapes, and conductor colors. For example, many compact tractors use red conductors for battery supply, black for ground, and yellow or orange lines for lighting circuits. Charging paths often run from the stator to a voltage regulator before reaching the battery. With the proper electrical layout, a technician can trace voltage loss through the starter relay, locate a damaged harness segment near the engine block, or verify continuity between the ignition key switch and the fuel shutoff solenoid.

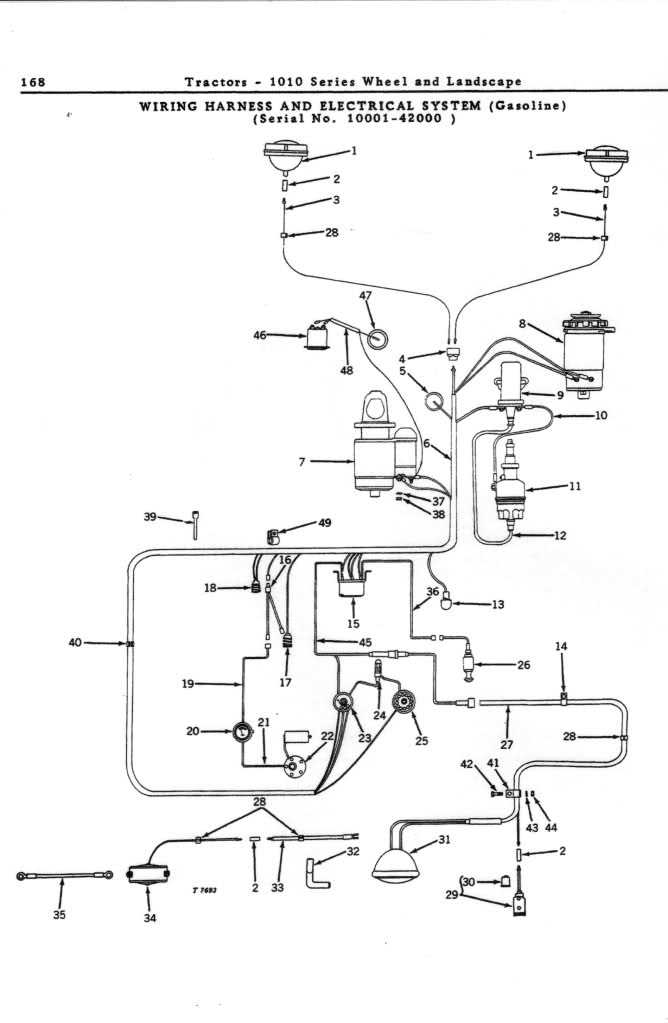

Printed service manuals for these agricultural machines also mark pin positions inside multi-plug connectors. That detail prevents incorrect reconnection after maintenance. When diagnosing faults such as no-start conditions, dim headlights, or a PTO clutch that refuses to engage, compare measured voltage at each node against the values implied by the schematic. A multimeter reading near 12.6 V at the battery and 13.8–14.4 V during engine operation confirms proper charging flow across the electrical network.
Technicians repairing tractors, lawn equipment, or utility vehicles from this brand gain speed and accuracy by studying the circuit blueprint before replacing parts. A clear electrical map reduces guesswork, reveals fuse protection paths, and highlights relay locations inside the dashboard panel or under the hood. With that reference, troubleshooting moves directly to the exact conductor, connector, or switch responsible for the malfunction.
Practical Guide for Reading and Using Tractor Electrical Schematics
Locate the correct electrical schematic for the exact tractor model and production year before tracing any circuit. Machines from the same series may use different harness routes, fuse ratings, and relay layouts. Use the identification plate on the frame or engine block to confirm the model code, then match it with the service manual section containing the electrical circuit map. Print the page or view it on a large screen so connector labels, pin numbers, and color codes remain readable while inspecting the machine.
Follow circuits by component sequence rather than by cable color alone. Many agricultural machines reuse identical color combinations across multiple subsystems such as lighting, PTO control, and starter control. Instead, read the schematic from the power source outward: battery → main fuse → ignition switch → relay → load device. This path reveals where voltage should appear at each stage. A multimeter set to DC voltage helps confirm whether power reaches each point exactly as indicated in the circuit layout.
Connector identifiers printed on the schematic are the fastest way to locate real harness junctions. Labels such as X12, C104, or P07 correspond to physical plugs placed along the loom or near control modules. These codes appear in the tractor service manual alongside small location drawings showing approximate mounting areas: under dashboard panel, left frame rail, behind instrument cluster. Matching the connector code on paper with the molded number on the plastic plug eliminates guesswork when multiple harness branches run through the same area.
Ground paths deserve the same attention as power lines. Many starting or sensor faults originate from poor grounding rather than damaged cables. The electrical schematic usually marks ground points with a symbol tied to frame locations like G101 or G205. Inspect these spots on the chassis for corrosion, loose bolts, or paint preventing metal contact. Measure resistance between the ground point and battery negative; values should stay close to 0 ohms. Anything above about 0.3 Ω often causes unstable sensor readings or intermittent relay operation.
Use the pin tables that accompany the circuit map whenever diagnosing electronic modules. Engine controllers, transmission units, and dashboard clusters rely on multi-pin connectors where each terminal has a defined signal: power supply, sensor return, communication line, or actuator output. The service documentation lists voltage expectations for many pins, such as 5 V reference for pressure sensors or 12 V ignition feed for control units. Compare real measurements with these values while the key switch is in OFF, ON, and START positions to isolate irregular signals.
Mark checked paths directly on the printed schematic using a pencil or highlighter. Trace the tested sections after confirming continuity or voltage presence. This visual tracking prevents repeated checks and quickly narrows the suspected section of the harness. Technicians working on complex agricultural machines often reduce troubleshooting time by dividing the electrical map into functional zones–charging system, lighting circuit, engine control, cab accessories–and verifying each zone separately until the faulty segment appears.
