Complete Guide to ISD1820 Voice Module Wiring and Component Setup

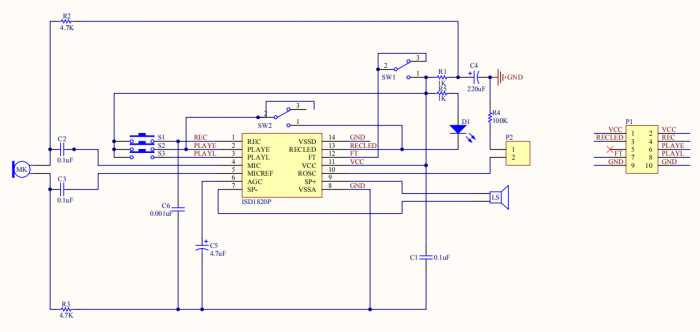

isd1820 circuit diagram

Connect a 3.3V to 5V DC supply to the module and ensure correct polarity to avoid damaging the internal memory chip. Use a 100µF capacitor across the supply terminals to stabilize voltage during playback.

Integrate a push-to-record switch for capturing short audio clips up to 10 seconds. Pair it with a 10kΩ pull-down resistor to prevent false triggering caused by floating inputs.

Wire the playback output to a small speaker rated 8Ω, 0.5W to 1W. Include a 100Ω series resistor if the speaker produces excessive volume, and ensure all connections are soldered or secured on a perfboard for stable operation.

Test each function individually by pressing the record and playback buttons to verify clear audio and consistent operation. Check the memory retention by disconnecting the power and confirming recorded clips remain intact.

Wiring and Assembly of the Voice Recording Module

Connect the power supply pins with correct polarity using a 3.3V to 5V DC source and add a 100µF capacitor across VCC and GND to stabilize voltage during playback. Ensure the push-to-record switch is connected to the REC input with a 10kΩ pull-down resistor to prevent accidental triggers and maintain signal integrity.

Attach the playback output to an 8Ω, 0.5W to 1W speaker and include a 100Ω series resistor if the output is too loud. Secure all connections on a perfboard or breadboard and test each function separately by recording short clips and verifying clear audio, confirming memory retention after power cycling.

Selecting Components for Voice Recording Module

Use a regulated 3.3V to 5V DC power supply to ensure stable operation of the memory and playback chip. Add a 100µF electrolytic capacitor across the supply to filter voltage spikes and maintain consistent audio quality during recording and playback.

Choose push-to-record and playback switches rated for low-voltage DC with minimal contact resistance. Include a 10kΩ pull-down resistor on the record input to prevent false triggering from floating pins and electrical noise.

  • Speaker: 8Ω, 0.5W–1W for clear output.
  • Series resistor: 100Ω to control volume when needed.
  • Perfboard or breadboard: for secure component mounting.
  • Connecting wires: 22–24 AWG solid core for reliable connections.
  • Optional capacitor: 0.1µF to filter high-frequency noise on audio lines.
