Connect switches and fixtures according to labeled terminals to prevent overloads and ensure stable current flow. Use insulated wire rated for 10–15 amps to match typical home setups. Verify connections with a multimeter before powering the system.
Separate live and neutral paths clearly to reduce the risk of short circuits. Mark each wire with color-coded tape or labels to track its function, especially in multi-branch layouts. Maintain at least 12 inches of spacing between parallel conductors to avoid interference.
Install fuses or miniature breakers at supply entry points to safeguard against spikes. Test each segment individually before final assembly, confirming that switches toggle loads without flickering or voltage drops.
Document the layout as you connect components with simple sketches or notes. This helps troubleshoot faults quickly and ensures any future modifications follow the correct flow of current.
Advanced Home Wiring Setup
Route switches and load points systematically to maintain clear separation between control lines and power feeds. Label each branch with identifiers to track which switches operate specific fixtures, reducing confusion during maintenance.
Use junction boxes at all branching nodes to contain connections and allow easy access. Ensure wires are stripped precisely 10–12 mm to prevent exposed metal, and secure each terminal screw to the manufacturer’s torque specification.
Testing and Verification
Check voltage continuity with a reliable multimeter before energizing the system. Simulate each switch position to confirm correct operation of all connected devices, noting any irregular current draw that could indicate loose connections or overloads.

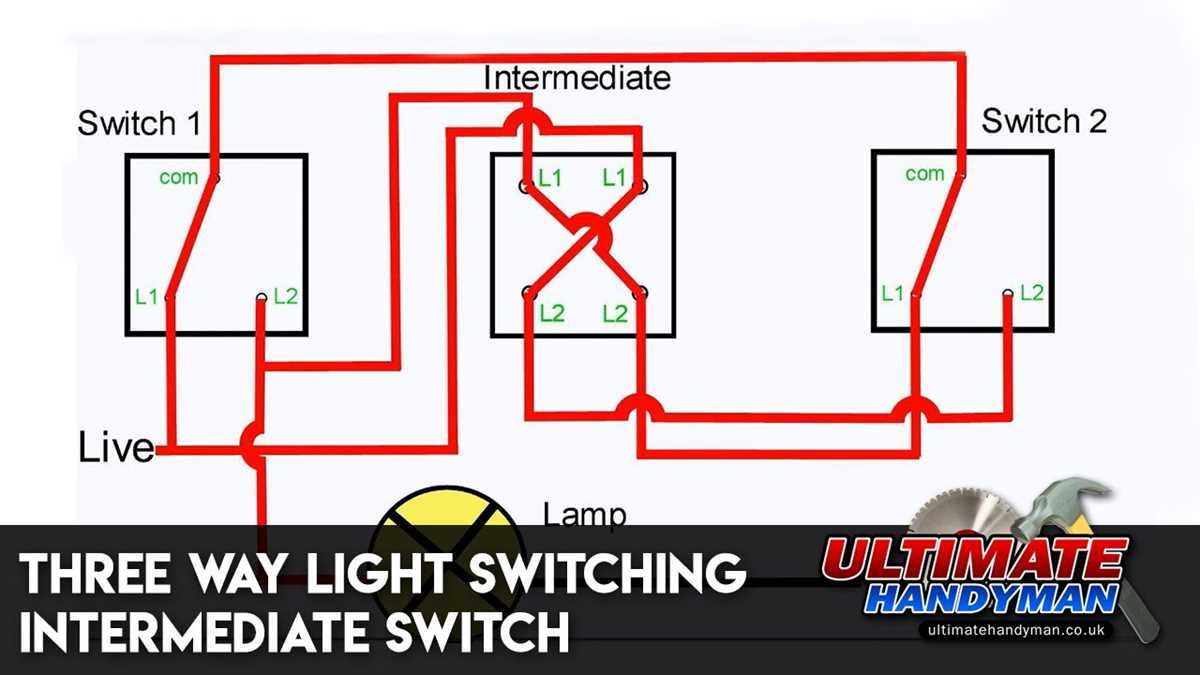

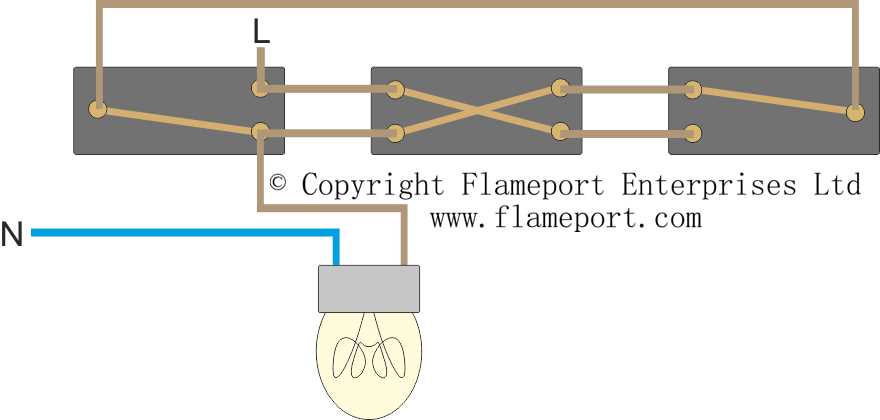

Wiring Connections for Switches and Bulbs
Connect each switch to its load terminal directly to maintain consistent voltage. Use color-coded wires for live, neutral, and ground paths, and secure all connections with screw terminals or push-fit connectors.
Follow proper sequence when linking multiple bulbs to a single control point:
- Run the live wire from the power source to the first switch.
- From the switch, extend the line to each bulb in series or parallel as required.
- Ensure neutral returns are continuous and never cross phases.
Install inline connectors in tight spaces to reduce strain on conductors. Bend wires gently and maintain at least 10 mm of exposed conductor at terminals to ensure stable contact.
Test each branch individually by applying low voltage first. Confirm that all switches operate their respective loads without flickering or voltage drop, noting any irregularities immediately.
Label every connection point clearly with tags or tape, particularly in multi-switch setups. This prevents errors during troubleshooting and future modifications while keeping the system organized and safe.
