If you’re looking to modify your guitar’s setup, using a combination of single-coil and humbucker pickups can significantly enhance its tonal range. This configuration is popular among players seeking versatility, offering both sharp, bright tones from the single-coils and the warmth and power from the humbucker. To make this setup work, it’s important to correctly wire the pickups for seamless integration and to avoid issues such as unwanted noise or tone loss.
The key to achieving a smooth transition between the pickups lies in understanding the proper connections. Start by ensuring that the humbucker is correctly grounded and wired to the switch. Next, connect the single-coils in such a way that their signals complement the humbucker, providing a balanced mix of tones. Each wire’s position within the switch is crucial, as it determines the tonal options available when you flick the selector.
It’s also common to run into problems with hum when combining different types of pickups. To minimize this, you may need to shield the cavities in the guitar body or use specific pots that help eliminate interference. Proper soldering techniques are also essential in preventing loose connections, which can cause inconsistent sound or complete failure of certain positions on the pickup selector.
HSS Pickup Setup Guide
To achieve the best tonal flexibility, start by connecting the humbucker to the bridge position and the single-coil pickups to the neck and middle positions. The humbucker should be wired in a way that it produces a full, powerful sound, while the single-coil pickups provide the bright, clean tones needed for rhythm and lead work.
When selecting the right switch, ensure that it’s capable of handling multiple pickup combinations. A 5-way switch is often the best choice, offering different tonal options depending on which pickups are activated. The first and fifth positions will activate the neck and bridge pickups respectively, while positions two, three, and four will engage combinations of the single-coil and humbucker pickups for varied tones.
Be mindful of the grounding process. Proper grounding helps avoid hum and electrical interference, which is especially important when using both single-coil and humbucker pickups. Connect the ground from the humbucker to the switch and ensure all other grounds are connected to the guitar’s main ground point.
If you’re experiencing unwanted noise, check the shielding. Applying shielding tape inside the control cavity can reduce electromagnetic interference, resulting in a cleaner sound. Additionally, a metal cover for the single-coil pickups can also help reduce hum.
Finally, ensure that the soldering connections are solid. Cold or loose solder joints can cause weak signals or erratic behavior when switching between pickup combinations. Take your time to ensure each connection is stable and properly insulated to prevent shorts or failures in the circuit.

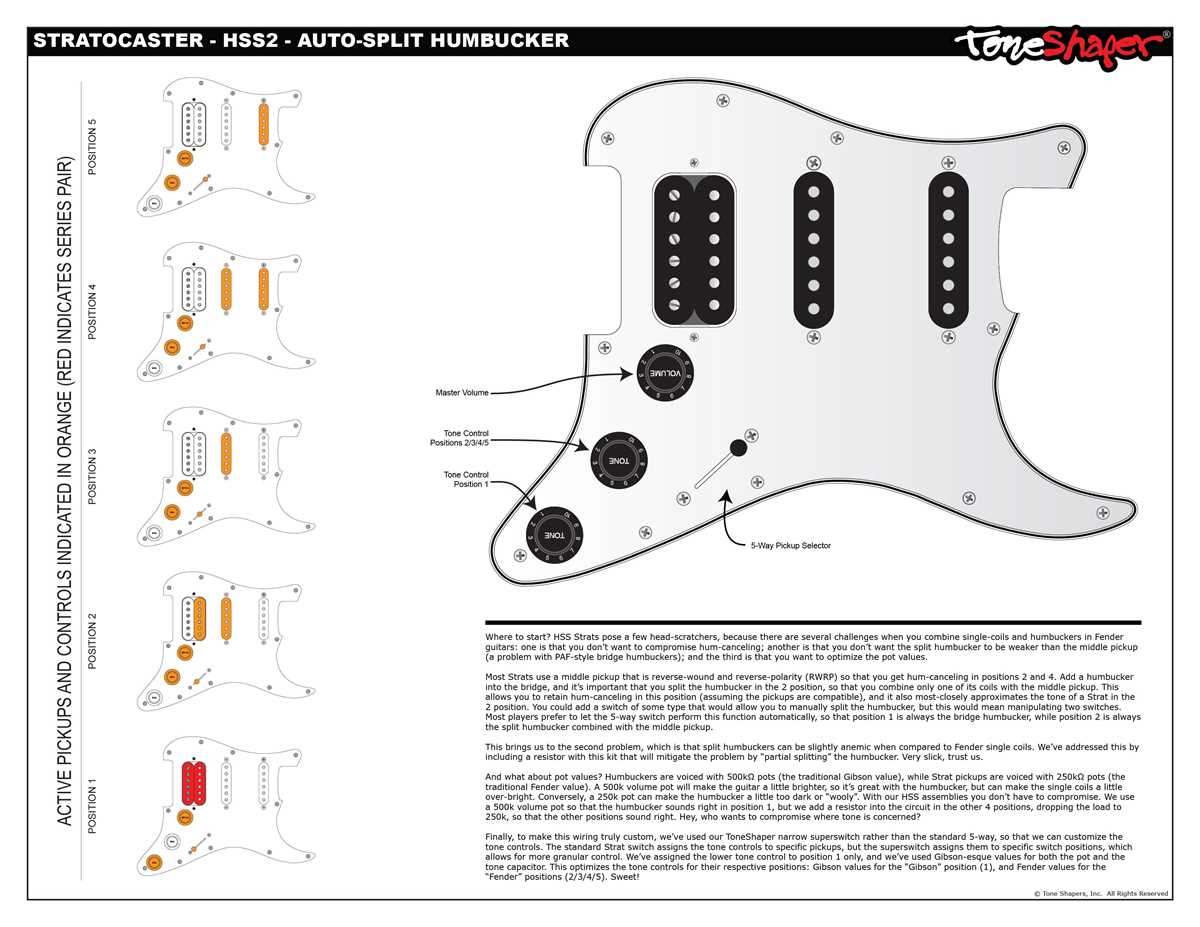

How to Wire an HSS Stratocaster Setup

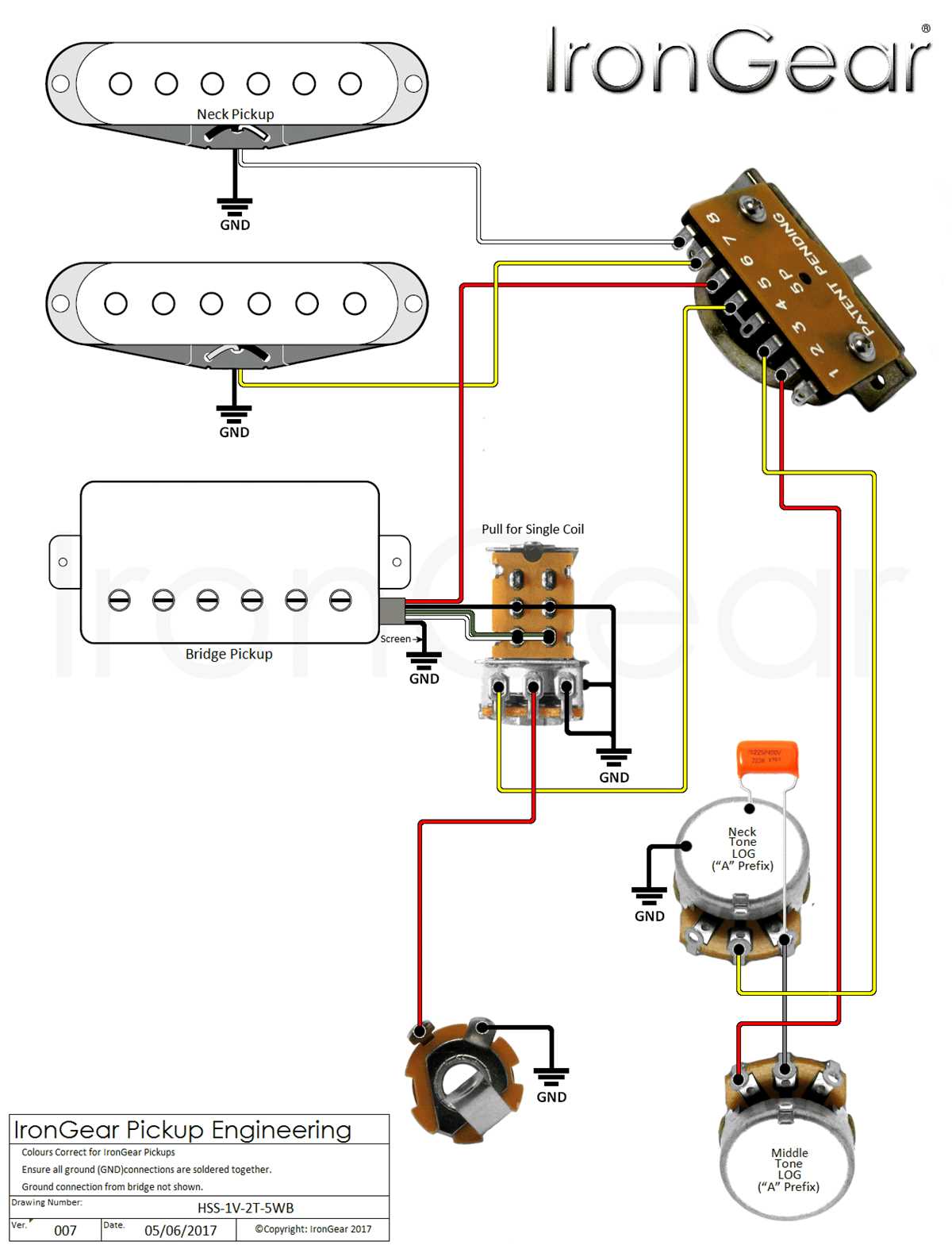

Begin by placing the humbucker in the bridge position. Connect the two wires from the humbucker: the hot (usually red or white) to the appropriate terminal on the switch and the ground (usually black) to the common ground point. For the neck and middle single-coil pickups, use the same procedure–hot wires to the switch terminals and ground wires to the main ground. The 5-way switch should handle all the necessary connections for the different combinations of pickups. Make sure the wiring of each pickup is correct, with no crossed connections or shorts that could cause unwanted feedback or hum.
Connecting the Tone and Volume Pots
Once the pickups are connected, wire the tone and volume pots to the switch. For the tone pot, connect the middle terminal to the hot wire from the switch and the outer terminal to the ground. The volume pot should be connected in a similar manner, with the hot wire from the switch going to the middle terminal and the outer terminal leading to the output jack. Double-check each connection to ensure there are no loose wires or short circuits. Proper soldering is key to maintaining a clean signal and preventing issues with inconsistent sound or tonal cuts.
