Understanding Electrical Schematics for Automotive Systems
Begin by familiarizing yourself with the common symbols used in automotive electrical layouts. Each part has a specific representation: a circle may indicate a fuse, while a square typically denotes a switch. Recognizing these symbols is the first step in interpreting any layout.

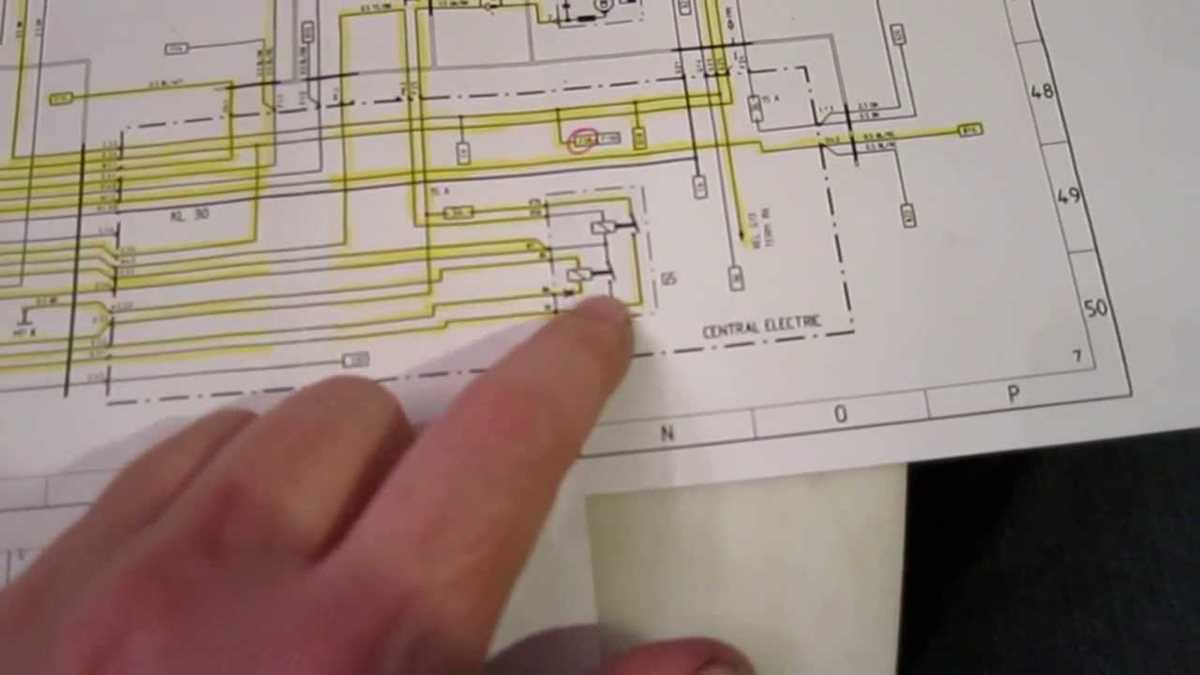

After you’ve learned the symbols, focus on the connections. The lines in the layout represent electrical paths. Pay attention to the way components are linked; this will help you understand how current flows through the system.

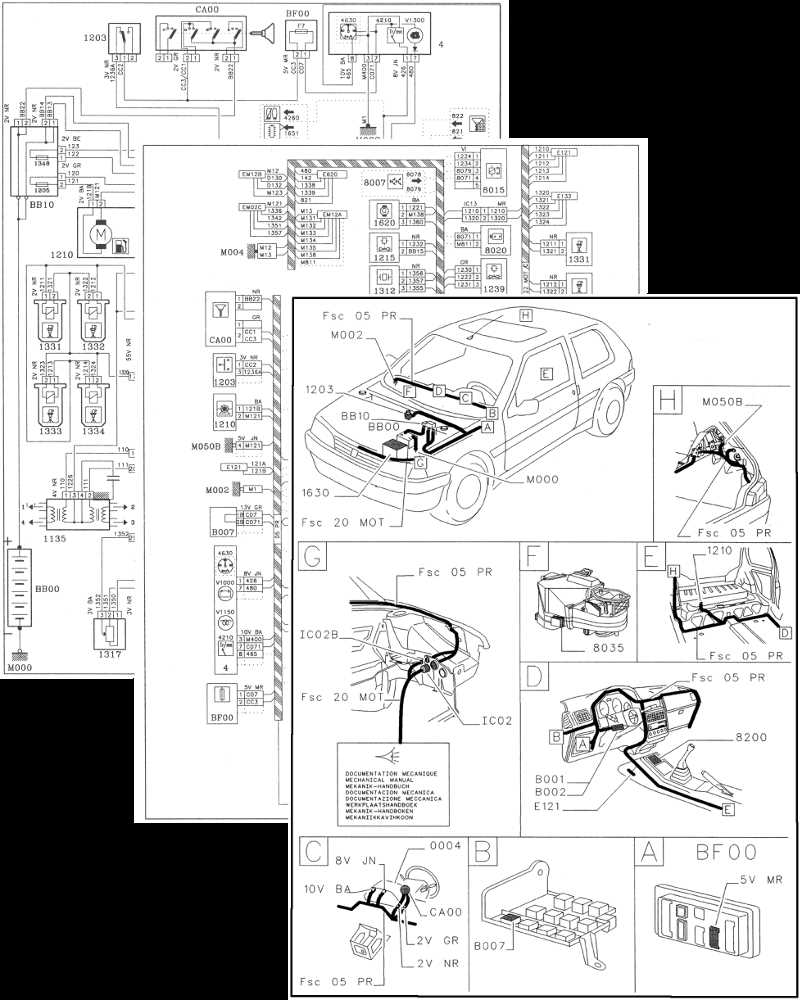

Examine the power source and follow the connections from there. This is the starting point of the system and will show you how electricity moves throughout the vehicle. Trace the flow to ensure all components are receiving the proper power.
Components that are located in parallel or series will be grouped in the layout. Identifying how these groups are connected is key to understanding how each part functions within the larger system. Note the differences between parallel and series connections for accurate troubleshooting.
When troubleshooting, isolate the section of the system you need to check. If a part is malfunctioning, following the connections from the power source to that specific component will help you pinpoint where the problem lies. Cross-check component ratings to ensure compatibility with the design.
Use the layout’s labeling to verify voltage and current specifications. Each component in the system may have specific power requirements. Ensure that these are correctly matched to avoid potential issues when the system is powered up.
Finally, use the layout to double-check the overall flow of energy. Make sure there are no short circuits or misrouted connections. Properly interpreting these layouts is crucial for safe and accurate repairs or modifications to the system.

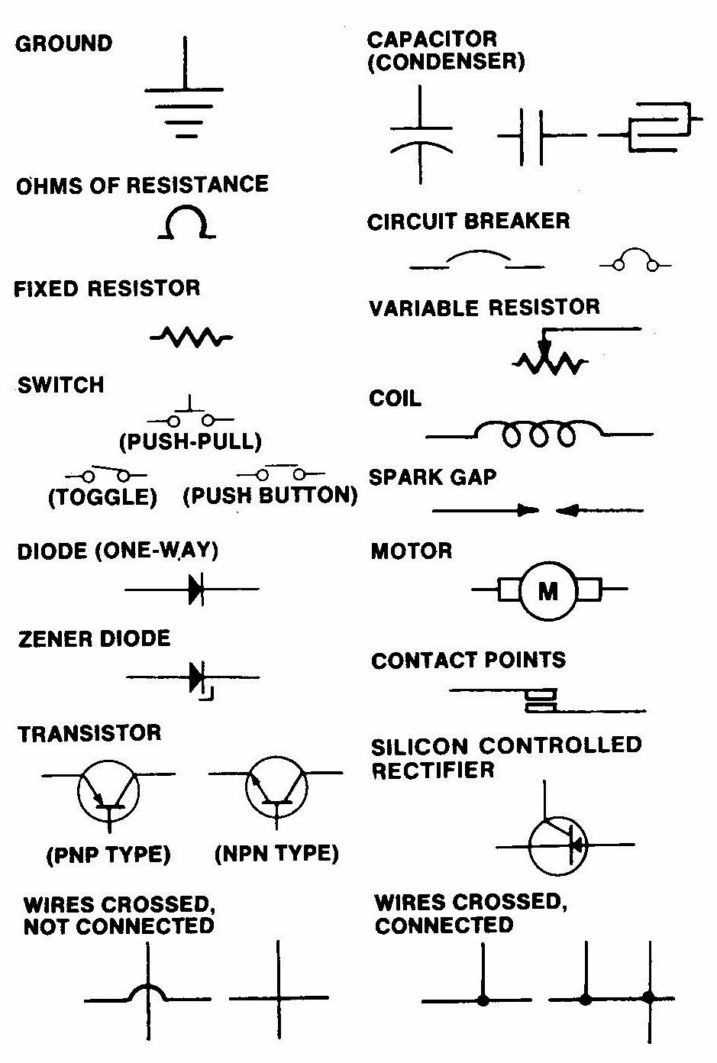

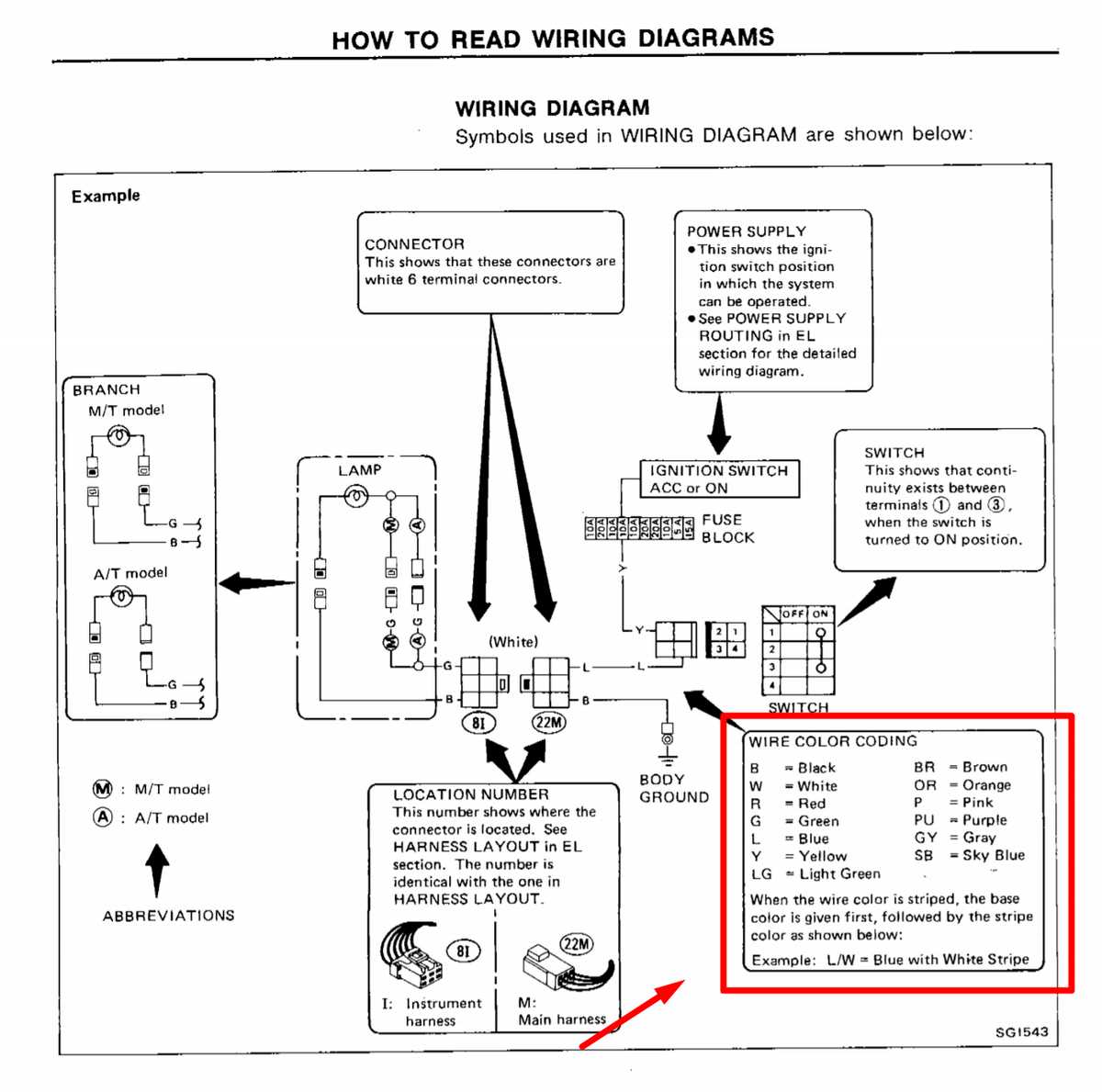

Understanding the Symbols Used in Automotive Electrical Layouts
The first step in interpreting any electrical layout is recognizing the symbols that represent different components. A circle typically indicates a fuse, while a rectangle can be used to represent a relay. Familiarizing yourself with these standard symbols will allow you to identify what each part does in the system.
Switches are often represented by a square, while a line crossing through it may show whether it is open or closed. When a switch is depicted with a diagonal line, it typically shows an open switch that doesn’t allow current to flow. Conversely, an unbroken line through the symbol often indicates a closed switch.
Resistors, which limit current, are symbolized by a jagged line. These resistors can be found in various locations in the system, controlling the current that passes through specific components. Their placement is critical for the proper functioning of any part that requires a controlled flow of power.
Connectors and junctions are typically marked with dots at the points where two or more wires join. These symbols are vital for understanding how power is routed through the system and where components are interconnected.
Finally, pay attention to the symbols used for ground connections. A ground is usually represented by a set of descending parallel lines, which indicate that the component is connected to the vehicle’s chassis or another grounded point, ensuring the proper return path for the electrical current.
