Verify the main connector terminals before attempting any adjustments. Identifying the correct terminals for power, ground, and illumination circuits prevents short circuits and ensures consistent operation.
Follow color codes on the harness carefully as most models use standard markings: red for constant power, yellow for dashboard illumination, and black for ground. Misplacing these can cause dashboard malfunctions or fuse blowouts.
Secure all fasteners and retainers after connecting the control unit. Loose connections lead to flickering lamps or intermittent lighting failures during acceleration or turns.
Test each function individually after installation. Rotate the rotary control or toggle levers to confirm high beams, low beams, and parking lamps respond correctly without drawing excessive current.
Inspect for corrosion or frayed conductors along the assembly harness. Even minor oxidation can increase resistance, reduce output, and accelerate component wear.
Control Panel Connector Layout for Pickup Lighting Systems
Confirm the main connector orientation before attaching any terminals. Align the locking tabs correctly to prevent bent pins and ensure all circuits engage simultaneously.
Label each lead with masking tape and permanent marker during disassembly. Red leads usually carry constant voltage, green handles low beam circuits, and white is commonly ground. This method avoids accidental cross-connections.
Route the assembly along factory harness paths to minimize strain on conductors. Avoid sharp bends and contact with hot engine components or moving suspension parts, which can damage insulation over time.
Use a multimeter to verify continuity before reassembling panels. Check that illumination intensity and high/low toggling respond correctly; even minor resistance spikes can cause flicker or dim lights.
Secure all mounting clips and covers after installation. Loose retention can allow connectors to vibrate free during operation, leading to intermittent circuit failures and unnecessary troubleshooting later.

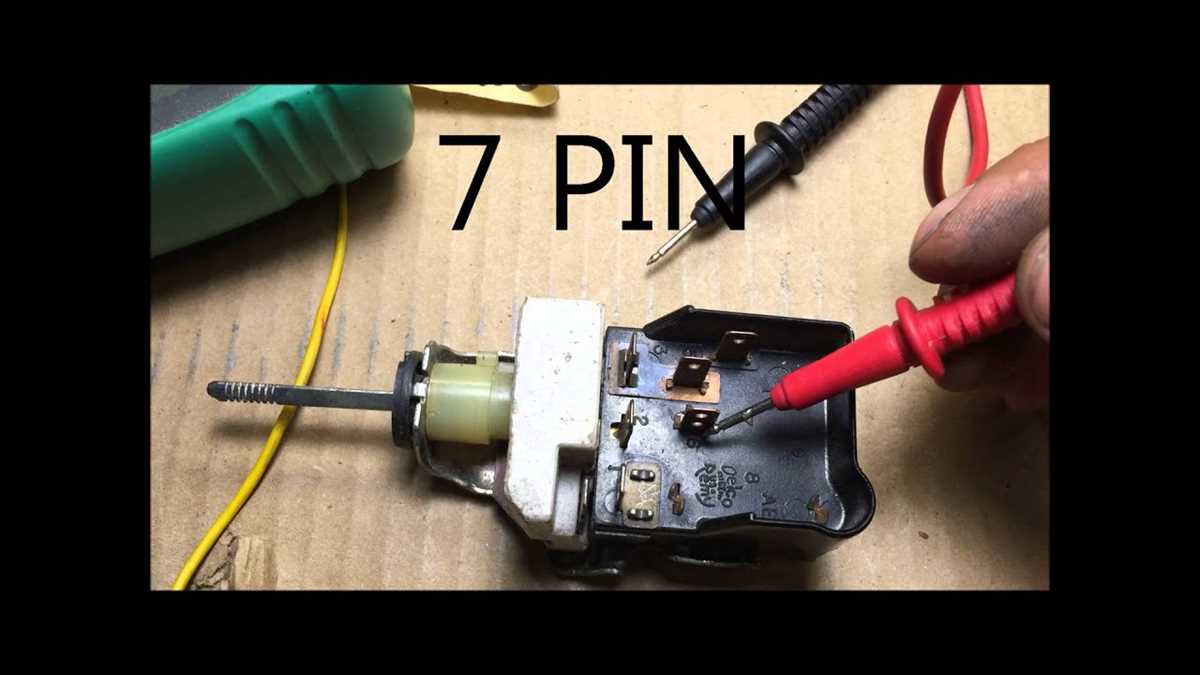

Identifying Leads and Connectors on Pickup Lighting Controls
Check the color coding of each conductor before detaching the control unit. Red usually carries continuous power, black serves as ground, and blue or yellow handles auxiliary illumination circuits.
Inspect connector pins for corrosion or bending. Even slight oxidation can create resistance that dims lamps or causes intermittent operation. Clean contacts with electrical contact cleaner before reconnection.
Verify connector shapes and locking mechanisms to ensure proper mating. Rectangular connectors typically hold multiple circuits, while round pins may handle individual functions like parking or signal lamps.
Document terminal positions with a sketch or photo during removal. This helps prevent misrouting leads, avoids short circuits, and ensures that all functions respond correctly after reassembly.
