When designing a magnetic field detection system, start by selecting the right components. These devices can be directly integrated into microcontroller boards or used with dedicated signal processing circuits to detect the presence or variation of magnetic fields.
Ensure proper power supply connections. Many of these components require stable voltage levels to function correctly. Always check the datasheet to understand the specific voltage requirements and whether additional circuitry is needed for regulation.
Pay attention to signal filtering. Magnetic sensors often output weak signals that need amplification or smoothing to be useful in a digital system. Using resistors, capacitors, and operational amplifiers can help optimize the signal for accurate readings.
Lastly, make sure to account for environmental factors such as temperature, magnetic interference, or noise, which could affect the accuracy of your setup. Proper shielding and grounding techniques can mitigate many of these challenges.
Magnetic Field Sensor Design Guide
To begin designing a magnetic field detection setup, ensure you select a component with the right sensitivity and output characteristics for your application. Choose between analog or digital outputs depending on the precision needed and the complexity of the system you’re integrating it into.
Consider the power supply requirements. These components typically operate on low-voltage DC supplies, but it’s important to verify the voltage range and tolerance in the component’s datasheet. Use a voltage regulator if needed to ensure stable operation.

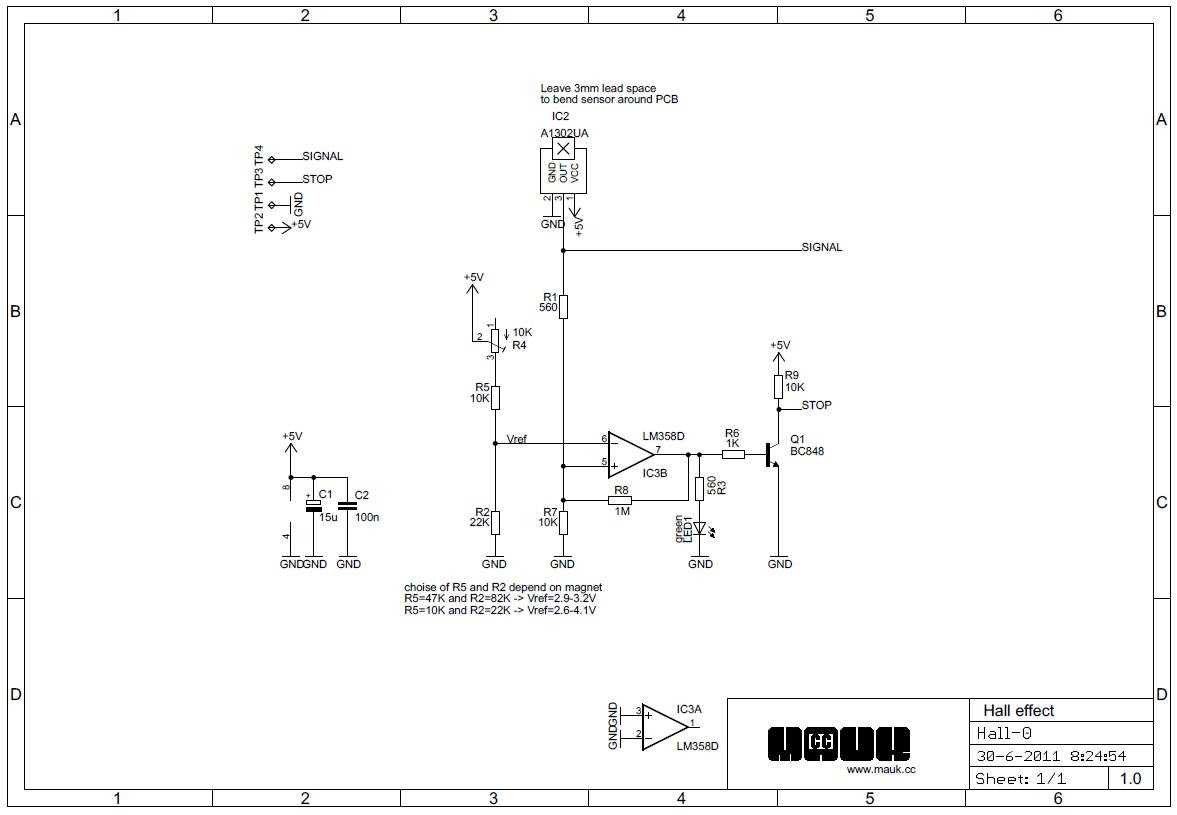

Incorporate amplifiers or signal conditioning circuits to boost the weak output signal from the sensor. Operational amplifiers are often used to increase signal strength before it reaches the microcontroller or processing system.
Make sure to address the load resistance. The output of many magnetic field sensors is influenced by the load it is driving. Select an appropriate load resistor to match the output capabilities of the sensor and the desired voltage levels.
Design proper filtering to remove noise from the signal. Magnetic sensors can pick up interference, especially in industrial or high-power environments. Use capacitors or low-pass filters to smooth the output and reduce high-frequency noise.
Pay close attention to the layout of your setup, especially the grounding. A clean ground plane is crucial for minimizing electrical noise. Keep the magnetic sensor’s wiring short and well shielded to avoid interference from other electronic components in the system.
Ensure the system is calibrated correctly. Magnetic sensors may require calibration to adjust for the strength and direction of the magnetic field. Use known magnetic fields or a test setup to verify the accuracy of the system’s output.
Lastly, plan for thermal management. High temperatures can affect the performance of the sensor. Use heat sinks, thermal pads, or passive cooling methods if the system is expected to operate in a high-temperature environment to maintain consistent performance.

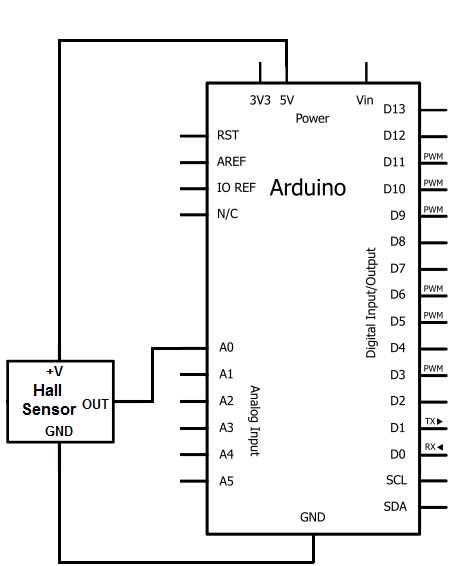

How to Connect a Magnetic Field Sensor to Microcontrollers
To connect a magnetic field detector to a microcontroller, start by identifying the sensor’s output type. If the sensor provides a digital signal, connect it directly to a digital input pin on the microcontroller. For analog output sensors, you will need an analog-to-digital converter (ADC) if the microcontroller does not have a built-in ADC.
Next, ensure the power supply matches the voltage requirements of both the sensor and the microcontroller. Most sensors operate on 3.3V or 5V, so use a stable voltage regulator if your power source varies. Double-check the current requirements to avoid overloading the microcontroller’s supply pin.
When connecting the output pin from the detector to the microcontroller, use pull-up or pull-down resistors to ensure reliable digital signal readings. For analog sensors, ensure the voltage range is within the ADC input limits of the microcontroller.
Use proper grounding for both the sensor and the microcontroller. Connect the ground pins of the sensor and the microcontroller together to prevent signal noise and ensure stable operation. Consider adding decoupling capacitors near the power pins of both components to filter out power supply noise.
Finally, program the microcontroller to read the signal from the sensor. If using a digital signal, check the pin state for HIGH or LOW. For analog sensors, use the ADC to convert the signal into a digital value, and process the data accordingly in the program. Be sure to calibrate the setup if necessary to ensure accurate readings based on the magnetic field strength and orientation.
