Ensure the ignition coil is correctly aligned with the power source terminals to prevent voltage drops and unstable spark delivery. Use a multimeter to verify continuity across all main leads before applying current.
Connect the lighting system in parallel with proper fusing to safeguard the circuit against short circuits and overloads. Verify that the headlamp, indicators, and brake lights respond correctly to switch operation.
Route ground connections directly to the frame to minimize resistance and prevent flickering issues. Avoid shared grounding points with high-current components to maintain consistent performance of electrical accessories.
Label each wire using color coding or tags to simplify future maintenance and troubleshooting. Confirm that all connectors are securely fastened and insulated to prevent accidental disconnections or corrosion over time.

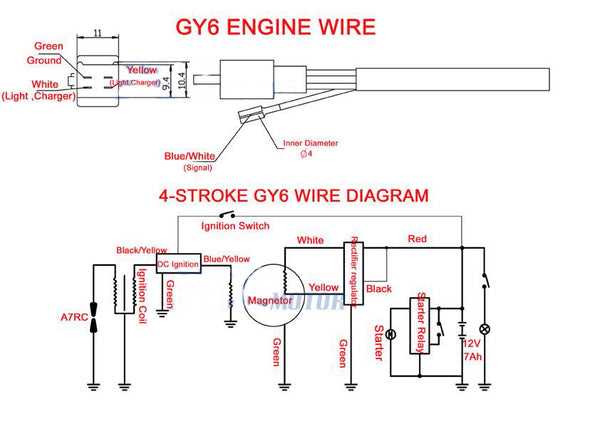

Complete electrical connection plan for small engine motorbike
Start by securing the main power source and battery terminals. Ensure the positive lead is connected to a properly rated fuse between 10A and 15A before reaching the main switch. The negative lead should be firmly grounded to the frame to prevent voltage drops and interference.
Organize lighting and indicator connections in a systematic layout. Run separate fused lines to the headlamp, brake light, and turn signals. Use color-coded insulation for easy identification and verify each switch controls the correct function. Maintain separation between high-current lines and low-current control lines to avoid interference and overheating.
For ignition and auxiliary components, follow these steps:
- Connect the ignition coil directly through the main switch to the battery, ensuring inline protection with a fuse.
- Install engine stop and starter switches inline with ignition control for safety during operation.
- Connect the charging system output to the battery through a diode to prevent reverse current flow.
- Use frame-mounted grounding points for all components to stabilize voltage and prevent erratic operation.
Understanding key wiring points for ignition and power supply
Connect the main battery lead to the ignition switch with an inline fuse rated between 10A and 15A. Ensure the positive terminal runs through the fuse before reaching the switch to protect the system from short circuits. Ground the negative terminal directly to the engine frame for stable voltage and to minimize electrical noise.

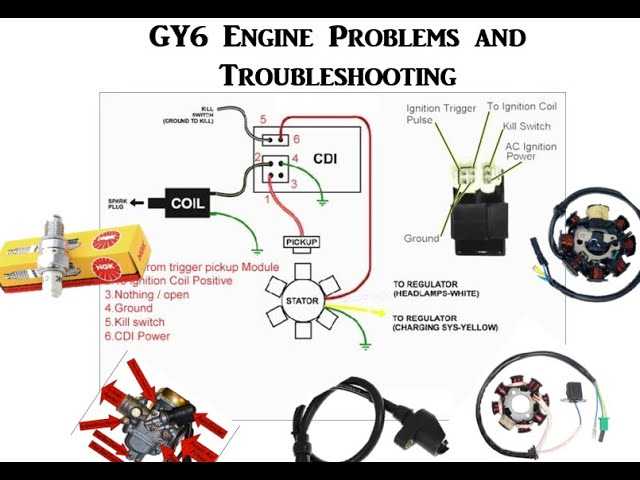

Identify the ignition coil connections carefully. The coil’s primary lead should attach directly to the switch output, while the secondary lead runs to the spark plug. Confirm that all high-voltage lines are insulated properly and routed away from heat sources to prevent degradation and misfires.
For auxiliary power, distribute 12V lines separately to lighting and indicators. Use color-coded insulation for headlamp, brake light, and signal lamps, and incorporate individual fuses for each line. This approach prevents a fault in one component from affecting the entire electrical system.
Check all grounding points thoroughly. Secure each connection with clean, corrosion-free metal contact to ensure consistent current flow. Frame-mounted bolts with lock washers often provide the most reliable grounding for ignition and accessory circuits, reducing voltage drops and improving starting reliability.
