Verify the sequence of the terminal links before making any adjustments. Using a multimeter, check that the power supply aligns with the control board inputs, and ensure that the blower relay receives the correct voltage to prevent overheating or short circuits.
Mark each conductor distinctly to avoid cross-connections. Color-coding or labeling wires according to the manufacturer’s schematic prevents accidental swapping between the high-voltage and low-voltage lines, which can damage the ignition module.
Maintain proper insulation and spacing throughout the assembly. Avoid running control lines parallel to main power cables without a separation of at least six inches to reduce electromagnetic interference that can disrupt sensor readings and operational timing.
Test continuity and signal flow after all connections are secured. Trigger each stage manually and monitor the thermostat response, ensuring the heating element activates only at the intended intervals and the fan cycles appropriately for optimal performance.
Secure mounting of the control components prevents vibration-induced loosening. Use strain reliefs on flexible leads and fasteners that prevent dislodging during routine maintenance or seasonal temperature swings.

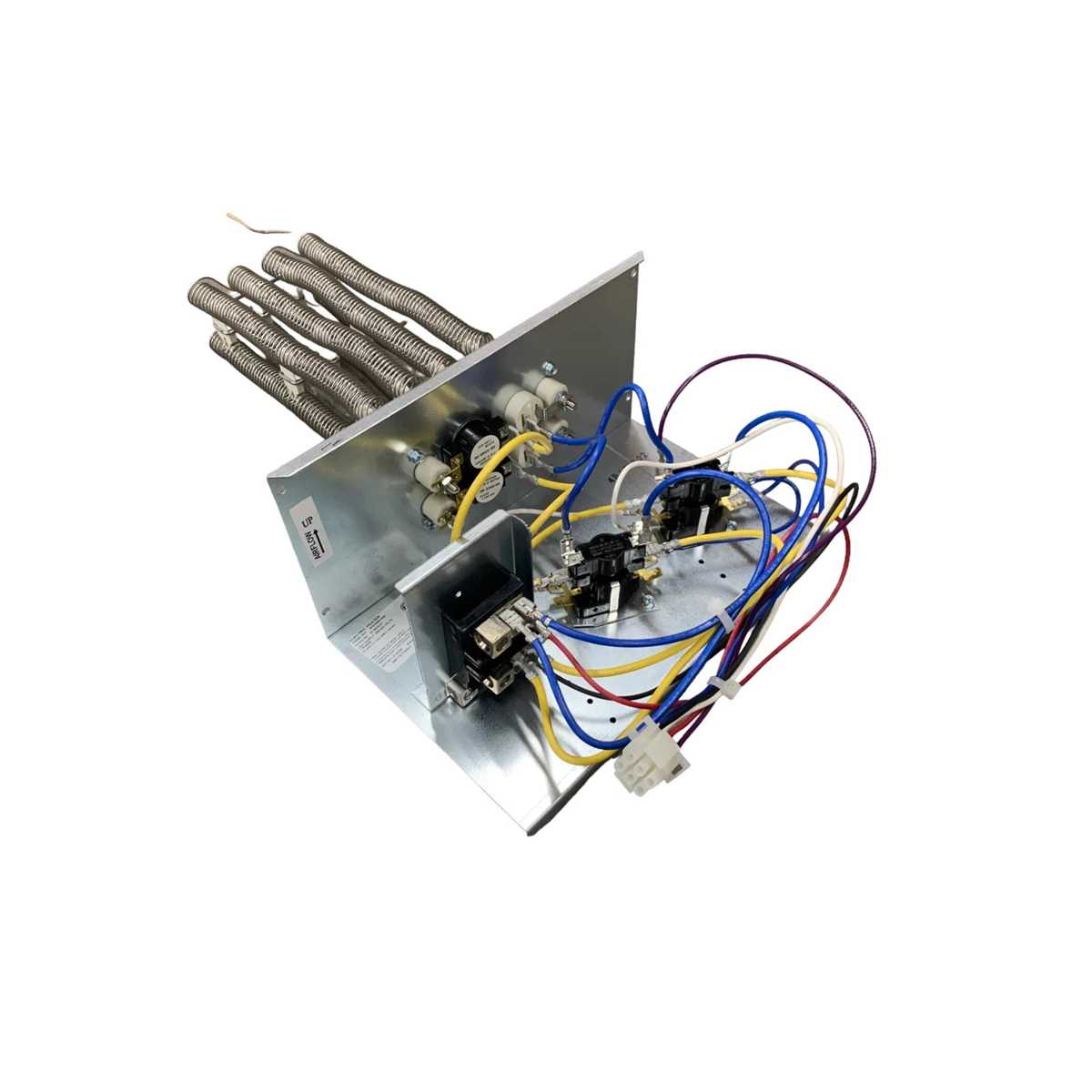

Heat Control Module Connection Guide
Begin by linking the auxiliary coil to the terminal marked “X1” on the furnace control panel. Ensure the small-gauge wire is secured under the screw and tightened firmly to prevent intermittent power loss. Avoid routing conductors near high-voltage lines to reduce electromagnetic interference.
Next, pair the temperature relay to the auxiliary unit using the red and white leads. Confirm that the red wire feeds the transformer while the white wire returns to the limit switch. Misrouting these lines can trigger safety lockouts or prevent the blower from activating correctly.
Finally, test the circuit by setting the thermostat to call for heat. Measure voltage across the relay terminals–expect 24 volts AC when engaged. Any significant deviation may indicate a faulty contact or loose connection, which should be corrected before sealing the panel.
Identifying Wire Colors and Terminal Connections on Residential Furnace Modules
Attach the red conductor to the R terminal to supply 24V power, while the white lead goes to W for the main relay. The green wire must always connect to G to control the blower motor, and the yellow strand links to Y for compressor or cooling activation. Use a multimeter to verify continuity and voltage at each connection before securing screws to prevent misfires or short circuits.
For systems with additional conductors, blue usually connects to C as the common transformer side, and brown may act as a secondary call or trigger depending on model specifics. Mark each wire clearly and route them without tension to avoid insulation damage. Tighten terminals just enough to secure wires while maintaining proper contact, preventing intermittent operation or terminal wear over time.
