To wire a combined outlet and circuit protector properly, start by identifying the correct terminals. Begin by connecting the line terminals to the incoming power supply, ensuring a secure and tight connection to prevent faults. Then, connect the load terminals to the wires leading to the connected devices, such as outlets or lights, ensuring proper grounding throughout the setup.
Next, pay attention to the neutral wire, which should be carefully aligned with the appropriate terminal. Miswiring the neutral can cause the unit to trip, as it directly impacts the safety mechanism. Test each connection for continuity before proceeding with the final installation.
Once everything is connected, check the protection feature by pressing the test button on the device. The unit should trip, cutting power to the load side. Reset the system by pressing the reset button and verifying that the output is functioning as expected.
Wiring a Combined Outlet and Circuit Protector

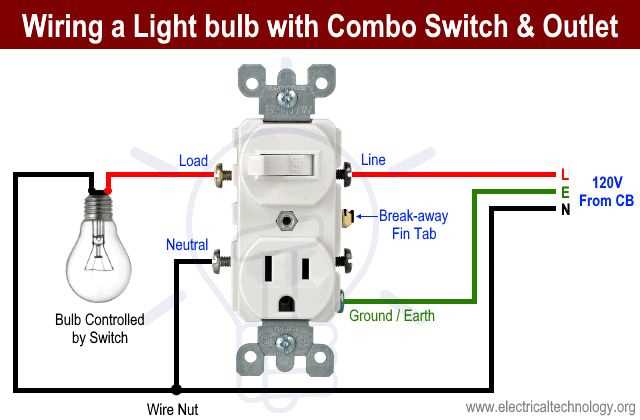

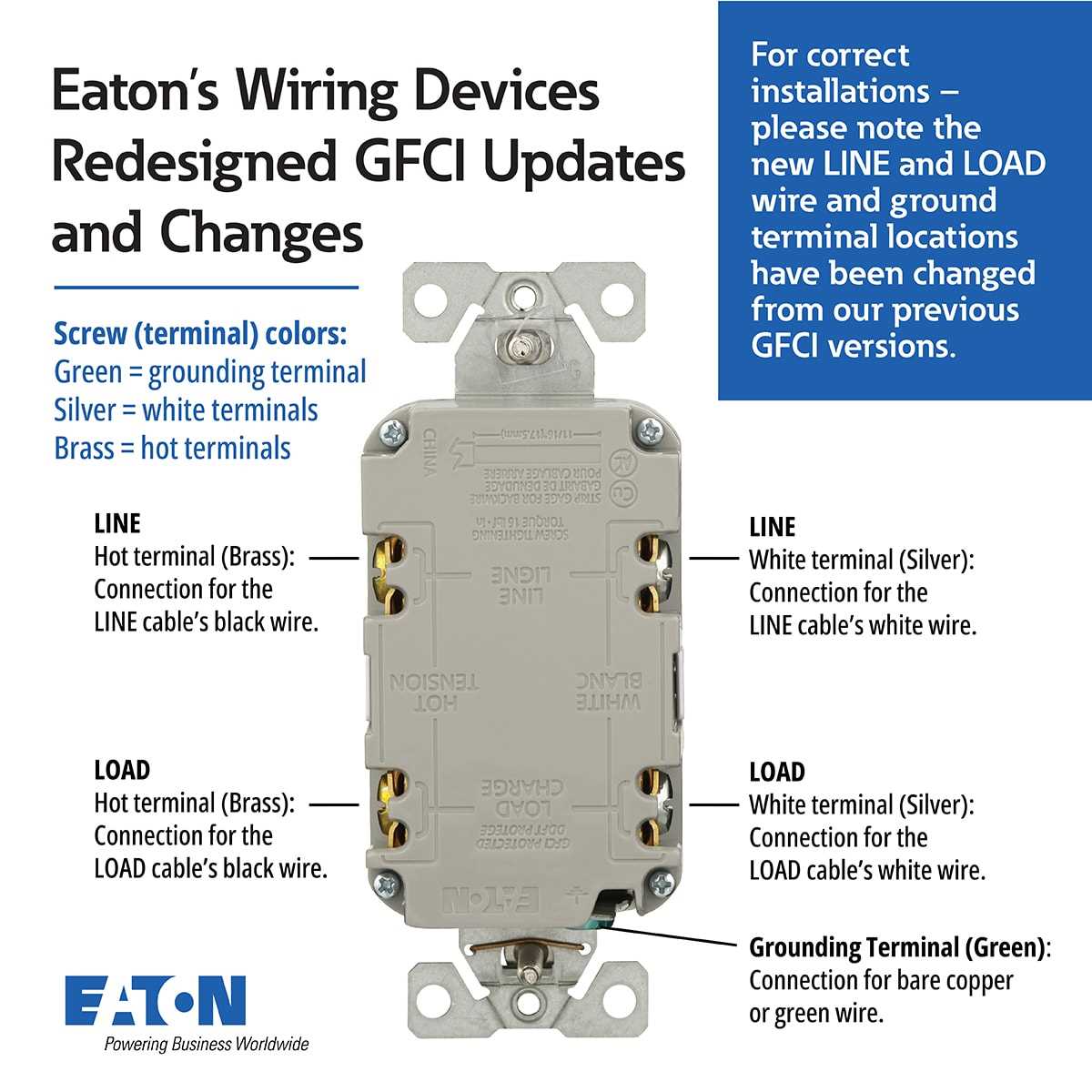

Begin by ensuring that the incoming supply wires are correctly attached to the line terminals of the unit. The black (hot) wire should connect to the terminal marked with a brass or gold color, while the white (neutral) wire connects to the silver terminal. For added safety, always double-check these connections before proceeding to the next step.
Next, you will need to connect the load terminals to the wires leading to the devices you plan to protect. The black (hot) wire should be connected to the load’s brass terminal, while the white (neutral) wire should connect to the corresponding silver terminal. Always ensure that the grounding wire is securely attached to the ground terminal to prevent electrical hazards.
Once the connections are made, it’s critical to verify functionality. Use the test button to simulate a fault condition and verify that the unit trips and cuts power to the load side. Afterward, press the reset button to restore power. This process ensures that the unit is properly set up to protect your system and devices from electrical issues.

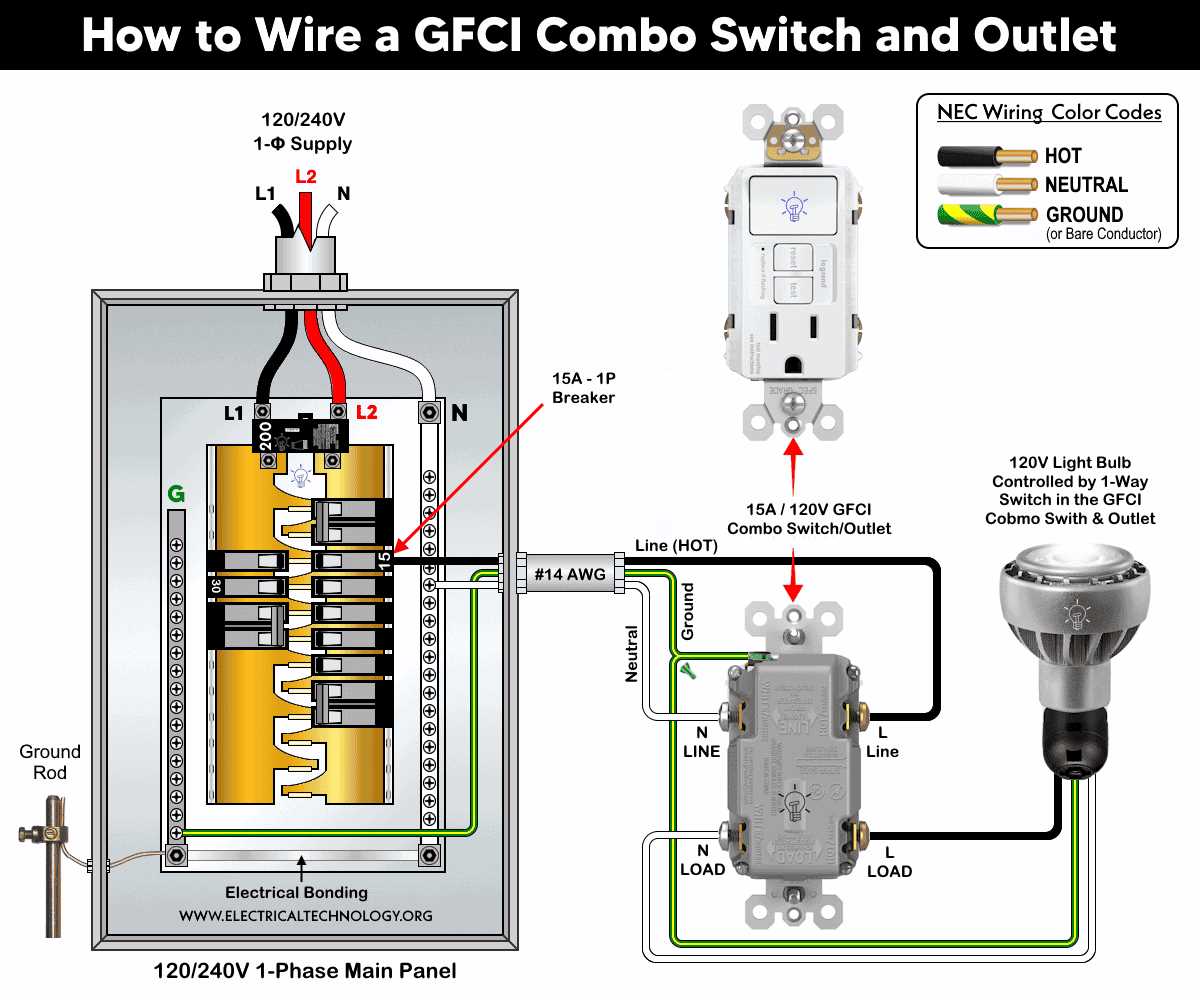

Step-by-Step Instructions for Wiring a GFCI Switch Combo
Start by turning off the power at the breaker box. This is crucial to ensure safety during the entire installation process. Use a voltage tester to double-check that there is no live current in the existing outlet or wiring before beginning the installation.
Next, remove the existing outlet or device from the electrical box. Carefully disconnect the wires, making sure to note the connections. Label the incoming hot (black) and neutral (white) wires for easy reference. If there is a ground wire, disconnect it as well.
Connecting the Line Terminals
Connect the incoming hot wire to the brass terminal and the neutral wire to the silver terminal on the new unit. The hot wire should be inserted securely into the terminal, and the neutral wire should also be tightly connected to ensure a good electrical connection. Make sure the wires are stripped correctly, with enough exposed copper to make a solid contact.
Attaching the Load Terminals
Now, connect the hot and neutral wires leading to the load side. The hot wire connects to the brass terminal, and the neutral wire attaches to the silver terminal. Be sure to tighten the screws firmly to avoid any loose connections, which could lead to electrical hazards.
For the ground connection, attach the bare or green wire to the ground terminal. Ensure that this wire is securely attached and has good contact with the terminal. Proper grounding is crucial for safety and preventing electrical shock.
Once everything is connected, secure the device back into the electrical box and fasten it using the screws. Finally, restore power and test the device. Press the test button to confirm the protection feature works, then press the reset button to ensure the device is fully functional.
