To create a classic distortion effect, start by using a transistor-based design that will clip the audio signal. Choose components that allow for high gain to create the signature “fuzz” sound. Begin with a simple transistor amplifier circuit, using a low-gain transistor for the input and a higher-gain transistor for the output.
Next, ensure you have a proper feedback loop to enhance the signal distortion. A resistor network can help control the amount of gain and ensure that the output remains stable without excessive noise. Adding a potentiometer for adjusting the gain allows for greater flexibility in shaping the tone of the sound.
Additionally, the power supply is a crucial part of the design. Ensure you use a stable voltage regulator to prevent fluctuations that could affect the pedal’s performance. Adding capacitors for smoothing out any power noise will also help in producing a cleaner and more reliable output.

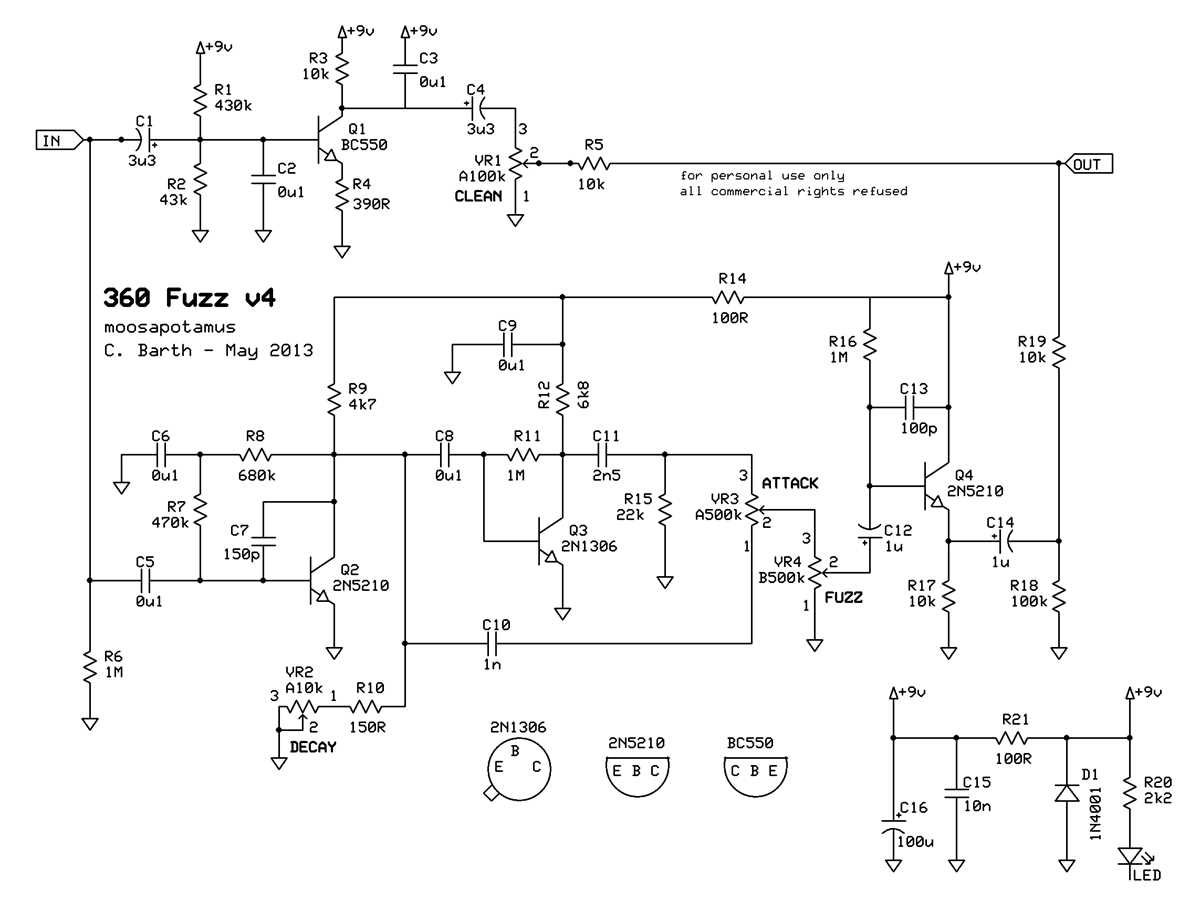

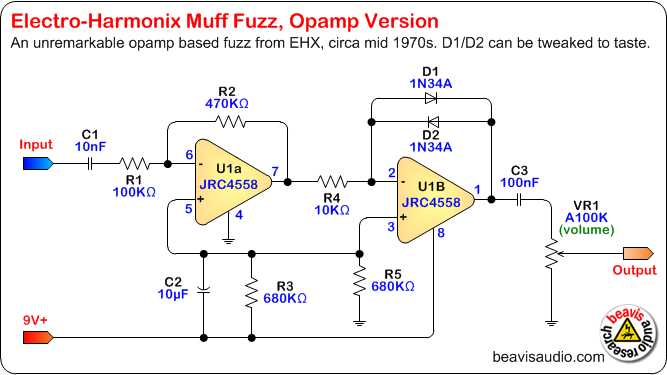

Fuzz Circuit Diagram
To design a solid distortion effect, begin with a transistor-based amplifier for signal amplification. Using a high-gain transistor at the output stage will provide the necessary distortion. Start with a common-emitter configuration to ensure the signal is adequately clipped to achieve the desired effect.
Include a resistor network that adjusts the feedback loop to control the level of gain and distortion. The amount of gain determines how saturated the signal becomes, so a variable resistor (potentiometer) allows real-time control over the effect’s intensity. This setup is crucial for fine-tuning the sound in a live environment.
Power stability is often overlooked, but a regulated voltage source is critical to avoid signal fluctuations. Adding capacitors for filtering will help smooth out any power supply noise, which might interfere with the overall performance of the effect, ensuring the output is as clean as possible.
Finally, for improved control over the tone, incorporate tone-shaping components like capacitors and resistors in the output stage. These components will allow for adjustments to high and low frequencies, giving you more flexibility in shaping the final sound and tailoring the effect to your specific needs.
How to Build a Basic Fuzz Pedal Circuit
Start by choosing a transistor with good amplification characteristics, such as the 2N5088 or BC109. This will serve as the heart of your design. Begin with a simple amplifier configuration, using a common-emitter setup for optimal gain. Connect the input signal to the base of the transistor, and use a resistor to control the base current.
Adding Gain Control
To adjust the level of distortion, place a potentiometer in the feedback loop. This will allow you to control how much of the signal is fed back into the transistor, affecting the overall saturation. Experiment with different resistor values to fine-tune the amount of clipping and achieve the desired tonal response.
Power Supply and Filtering
A regulated 9V power supply is ideal for consistency. To prevent any unwanted noise, incorporate capacitors in the power line to filter out power fluctuations. This will ensure a clean, stable signal path, which is especially important when working with high-gain circuits.
Finally, connect the output to a capacitor to block any DC offset and allow only the audio signal to pass. This will ensure that the output is clean and usable. Test your pedal with various input sources and adjust the gain control to find the sweet spot for your desired sound.
