For anyone maintaining or repairing a heating unit, it’s vital to understand the internal components and their respective roles. Each element works in harmony to ensure that the system functions efficiently, keeping your space warm during colder months. The interaction between these components determines the system’s performance, safety, and longevity.
Thermal Unit Structure: The central structure comprises a combustion chamber, heat exchanger, and exhaust system. The combustion chamber is where fuel is ignited, generating heat. The heat exchanger then absorbs this heat, distributing it throughout the system. The exhaust ensures that byproducts of combustion are safely vented out.
Airflow Mechanism: Air circulation is a critical part of any heater. This is managed by blowers and ducts that move warm air to various parts of the space. The blower fan, located near the heat exchanger, is powered by the motor to push air through the ducts. Regular cleaning of these ducts and filters is necessary to maintain airflow efficiency.
Control System: The control system, including the thermostat and ignition system, regulates the temperature and initiates the heating cycle. The thermostat detects room temperature and sends signals to adjust heating levels. The ignition system ensures that the heating process begins when needed and shuts off safely once the desired temperature is reached.
Understanding these critical components allows you to troubleshoot issues and perform basic maintenance tasks, such as cleaning filters or inspecting the ignition system. Knowing how they interact also helps to identify problems early, potentially saving both time and money on repairs.

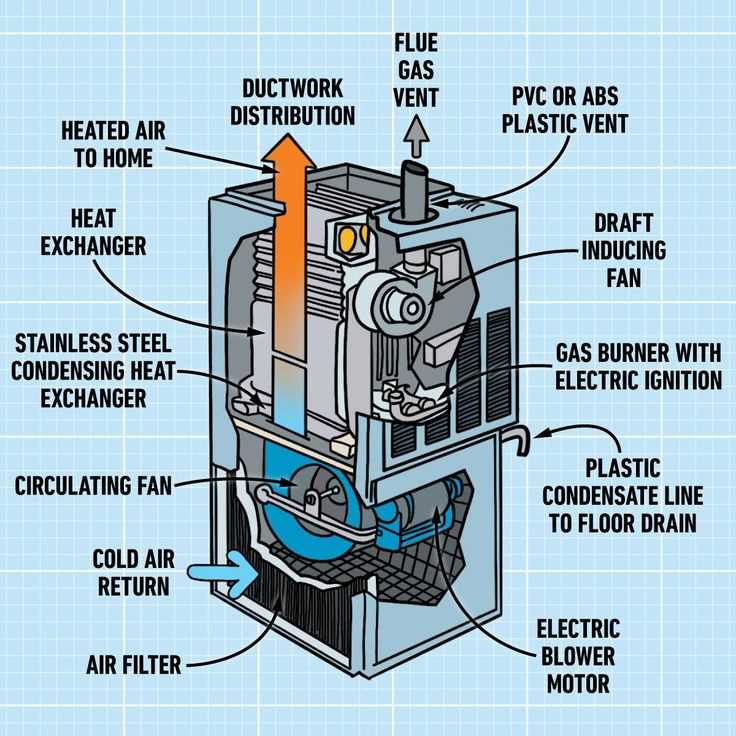

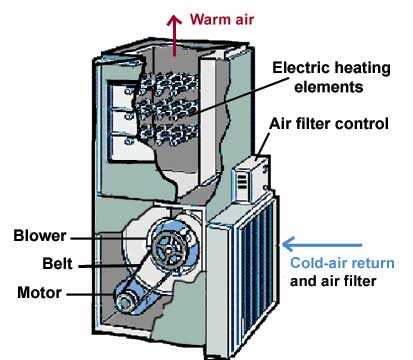

Heating System Component Layout
To ensure proper functionality and ease of maintenance, a clear illustration of the heating system’s elements is key. Start by identifying the combustion chamber, where fuel undergoes ignition. Adjacent to it, the heat exchanger plays a pivotal role, transferring thermal energy to the surrounding air or water. Next, locate the blower fan, responsible for circulating warm air into the space. Following the airflow, the air filter removes contaminants, ensuring clean circulation. The ignition system, often a spark or hot surface igniter, initiates the heating process. In addition, ensure visibility of safety mechanisms, such as the pressure switch and flame sensor, which monitor system performance and prevent malfunctions. The control board serves as the brain, regulating temperatures and system operation based on input sensors. Lastly, include a vent system that exhausts combustion gases outside, maintaining a safe environment within the facility.
Understanding the Role of the Heat Exchanger in Furnace Operation
The heat exchanger’s primary function is to transfer heat from combustion gases to the air circulating through the heating system. This process helps maintain a comfortable indoor temperature without releasing harmful gases into the living space. A malfunctioning heat exchanger can lead to inefficiencies, increased energy consumption, and even potential safety hazards such as carbon monoxide leakage.
The design of the heat exchanger is critical to its efficiency. Materials with high thermal conductivity, such as copper or aluminum, are commonly used to ensure rapid heat transfer. Proper maintenance of this component includes regular inspection for cracks or corrosion, which can compromise its ability to transfer heat effectively and safely.
Cleaning the heat exchanger can prevent blockages from dust or debris, which reduce airflow and hinder heat transfer. A clean and well-maintained exchanger improves overall performance and extends the lifespan of the system.
If the heat exchanger becomes damaged, it is often more cost-effective to replace the unit rather than attempting to repair it. Neglecting this part can result in higher repair costs due to further system damage, inefficiency, and the potential need to replace additional components.
Identifying and Replacing the Blower Motor
Locate the motor in the blower assembly, typically positioned at the base of the unit, secured by screws or bolts. Ensure the power supply is off before proceeding. Disconnect the motor’s wiring harness, taking note of the connections for proper reinstallation.
Inspect the motor for any visible signs of wear, such as excessive dust buildup, scorch marks, or burnt connections. A malfunctioning motor often produces unusual noises or lacks the ability to start or run smoothly. Check the capacitor; a faulty capacitor can sometimes be mistaken for a motor problem.
To remove the motor, unscrew the mounting brackets and gently slide the motor out. If the motor is difficult to remove, ensure that there are no obstructions blocking its path. Once removed, compare the new motor to the old one to confirm it matches in size, voltage, and amperage ratings.
Install the new motor by securing it with the same mounting brackets, ensuring it is aligned properly with the fan blades. Reconnect the wiring harness according to your notes or a wiring guide. Once the connections are secure, test the system to verify the motor operates correctly, checking for smooth operation and proper airflow.
If the motor does not start, check the capacitor, power supply, and ensure the wiring is correct. A motor that hums but does not spin often indicates a seized fan or faulty capacitor.
How to Troubleshoot a Faulty Flame Sensor
To address issues with the flame sensor, start by disconnecting power to the system to avoid any electrical hazards. Then, check for visible damage such as burns or rust on the sensor itself.
If no visible issues are found, clean the sensor using a fine steel wool or sandpaper. Ensure to remove any dirt, soot, or oxidation that could obstruct the sensor’s ability to detect a flame.
After cleaning, reattach the sensor and check its positioning. The sensor should be directly in the flame path, typically located near the burner assembly. If it’s misaligned, the system may not register the flame correctly.
If the sensor still fails to work, test its voltage using a multimeter. Set the multimeter to DC voltage and check for a reading of about 0.5 to 1.0 volts when the burner is active. A lack of voltage indicates a faulty sensor or an electrical connection issue.
If replacing the sensor is necessary, choose a compatible replacement and install it. Ensure proper alignment and reconnect any wiring according to the manufacturer’s specifications.
In some cases, faulty wiring or a malfunctioning control board may be to blame. Inspect the connections for any signs of wear, loose wiring, or corrosion. If everything appears in order, but issues persist, the control board may require replacement or professional inspection.
- Disconnect power before inspecting the system.
- Clean the sensor using steel wool or sandpaper.
- Check sensor alignment near the flame path.
- Test the sensor’s voltage to verify functionality.
- Replace the sensor if necessary, ensuring proper installation.
- Inspect wiring and connections for faults or corrosion.
