To ensure smooth operation, inspect the key elements regularly. Start by identifying the gears, shafts, and bearings that are crucial for efficient power transfer in the mechanism. Pay attention to signs of wear such as unusual noises or reduced performance, which often indicate the need for part replacements.
For any required repairs, always consult the manufacturer’s specifications. Using original components ensures the system functions as designed and avoids long-term damage. When replacing parts, be mindful of proper alignment to prevent misconfiguration.
Additionally, check the lubrication levels periodically. Insufficient lubrication can cause overheating and premature wear of critical components. Regular maintenance checks, including inspecting seals and tightening bolts, will prolong the life of the system and keep it operating at optimal capacity.
Front Differential Components and Maintenance Guide
Begin by inspecting the key rotating elements, including the ring gear, pinion, and shafts. These components experience significant stress and should be checked for any signs of wear or cracks. If you notice any damage or irregularities, replace the part immediately to prevent further mechanical failure.
Regularly check the fluid levels and ensure that the lubricant is clean and free from contaminants. Dirty or low lubricant can cause overheating and excessive wear on moving parts. Refill the system with the recommended fluid type and change the fluid as specified by the manufacturer for long-term reliability.
Ensure all seals and gaskets are intact to prevent leaks. A leaking seal can cause contamination of the lubricating fluid, leading to premature wear and potential failure of internal components. Tighten any bolts or fasteners that may have loosened over time due to vibrations, as they can lead to instability in the system.
Lastly, pay attention to any unusual noises or vibrations during operation. These are often early warning signs of malfunctioning components. If you hear grinding or whining sounds, it may indicate damaged gears or bearings, which need to be addressed promptly to avoid further damage.

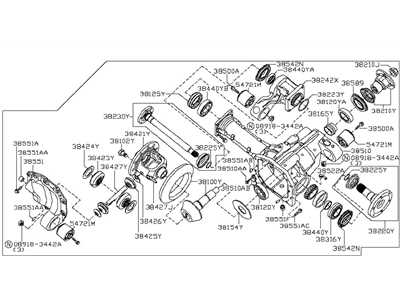

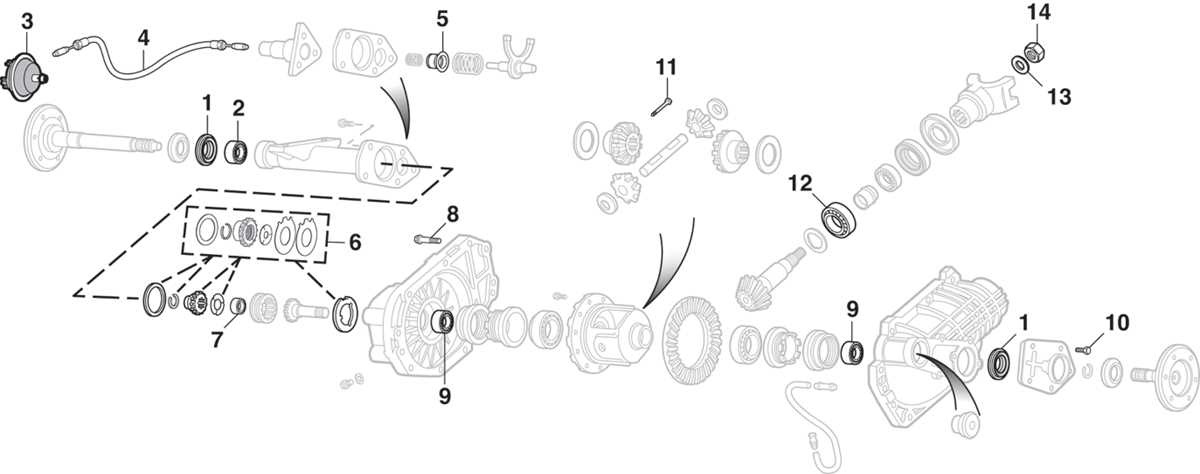

Identifying Key Components in the Front Differential System
Start by locating the ring gear, which is the primary component that drives the wheels. This part typically meshes with the pinion gear, transferring power from the drive shaft to the axles. Inspect for wear or damage that could impair rotation.
The pinion gear is another crucial element. It sits at the front of the assembly and is responsible for engaging with the ring gear. Look for signs of excessive wear or pitting, as this can cause failure in the gear system. If damage is noticed, it may need to be replaced.
Check the carrier assembly, which houses the gears and helps distribute torque evenly. The carrier holds the spider gears that rotate inside the casing. Pay close attention to any uneven wear or metal shavings, which could indicate issues with lubrication or alignment.
- Axle shafts: Examine these components for cracks or bends. They transmit rotational force from the differential assembly to the wheels.
- Seals and bearings: Inspect for leaks around the seals and listen for any unusual noise from the bearings. These parts can wear out and cause fluid leakage or excess friction.
- Housing: Ensure the casing is free from cracks or deformities. A damaged housing can lead to catastrophic failures and may require immediate attention.
Lastly, check for the proper alignment of all components. Misalignment can lead to uneven wear and eventual failure of critical parts. If any components appear misaligned, realigning them should be done before further operation.
Step-by-Step Process for Replacing Front Differential Components
Begin by lifting the vehicle using a hydraulic jack and securing it with jack stands. Ensure that the wheels are off the ground, providing enough space for you to work on the assembly.
Next, drain the lubricant from the assembly by removing the drain plug. Allow all fluid to empty into a container for proper disposal. This step will prevent any spillage when you remove components.
Remove the cover plate that protects the assembly. Use a wrench or socket to undo the bolts holding it in place. Once removed, you’ll gain access to the internal gears and other components that may need replacing.
Inspect the ring gear and pinion. If these components are damaged, use a gear puller to remove the old parts. Apply even pressure to avoid bending or damaging the housing during removal.
After removing the gear system, carefully take out the carrier assembly and spider gears. Inspect each part for any signs of damage or excessive wear. If replacements are necessary, replace them one by one, ensuring each component fits properly.
Once the old components are removed, install the new parts. Begin by positioning the new ring gear and pinion into place. Tighten the bolts securely without overtightening, which could damage the threads.
Replace the carrier assembly, ensuring the spider gears are properly aligned. Lubricate the gears lightly to ensure smooth operation before reassembling the casing.
Before sealing the unit, inspect the seals and bearings for wear. If necessary, replace these to prevent future leaks or excess friction. Install new seals and reassemble the casing, ensuring the parts are seated properly.
Refill the assembly with the recommended lubricant and check for any leaks. Test the operation by manually turning the gear system to ensure smooth movement.
Once everything is reassembled and the fluid is refilled, lower the vehicle carefully and test drive to ensure proper function of the replaced components. Listen for any unusual noises or irregularities during operation. If needed, adjust or tighten any components further.
Common Issues with Front Differential and Their Solutions
Uneven tire wear can result from improper gear alignment. If you notice a significant difference in tire tread, check the gear mesh. Adjust the alignment by loosening and repositioning the affected parts. Ensure both sides are aligned correctly to avoid further wear.
Whining or grinding noises often indicate worn-out bearings. If these sounds occur during driving, replace the damaged bearings immediately. Inspect the bearing housing for wear and ensure the new bearings fit snugly in place to prevent further damage.
Oil leaks from the casing are commonly caused by worn seals or improperly sealed gaskets. To fix this, remove the old seals and gaskets, clean the surfaces, and install new ones. Be sure to use the correct type of lubricant and ensure the casing is sealed tightly after replacement.
Excessive play or movement in the gears may suggest worn gear teeth or misalignment. Check the teeth for visible damage and replace any worn gears. If the alignment is off, adjust the positioning and secure the gears to prevent slippage.
Overheating in the system is often linked to inadequate lubrication. Regularly check the fluid level and refill if necessary. If the oil appears contaminated or thickened, flush the system and refill it with fresh, high-quality lubricant to ensure smooth operation.
Jerky or uneven handling may occur if the internal gears are damaged or improperly lubricated. Inspect the gears for cracks or excessive wear. Replace the damaged gears and ensure the system is properly lubricated to allow for smooth movement.
If there’s a lack of responsiveness when engaging the system, check the actuating mechanism and control linkages. Clean or replace any worn or damaged parts in the linkages to restore proper functionality.
