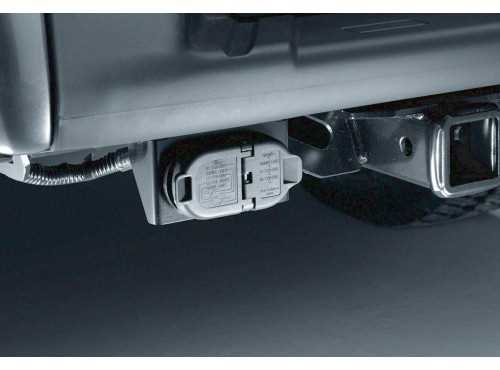

Start by identifying the main 7-pin or 4-pin connector on your towing vehicle. Use a multimeter to verify voltage on each terminal and ensure proper contact before attaching any leads.
Match each pin to its corresponding function: brake lights, turn signals, tail lights, and ground. Use color-coded cables and automotive-grade connectors to reduce the risk of cross-connection or short circuits during operation.
Secure the harness along the vehicle frame using cable clamps and protective loom. Avoid routing wires near moving parts, exhaust components, or sharp edges to prevent abrasion and heat damage over time.
Test each circuit individually by activating lights and brake signals while observing the connector terminals. Repair any loose connections and replace corroded terminals to maintain reliable signaling during towing.
Vehicle Tow Connector Setup and Electrical Connections
Use a fused 12-volt circuit to supply power to the connector, ensuring it can handle at least 20 amps for all signal and brake circuits. Place the fuse close to the battery to prevent short circuit damage along the main line.
Identify each pin on the connector and match it with its function. Typical assignments include left turn, right turn, brake lights, tail lights, reverse lights, auxiliary power, and ground. Use a color-coded harness to reduce confusion and simplify maintenance.
Route the cables along the vehicle frame using cable ties and protective sleeves. Avoid sharp edges, suspension components, and high-heat areas to prevent abrasion or insulation damage.
Install terminals using crimp or solder connections with heat-shrink tubing to seal against moisture and corrosion. Secure ground connections to clean bare metal surfaces, removing paint or rust to ensure consistent conductivity.
Test each circuit individually by activating the brake lights, turn signals, and auxiliary power. Verify continuity with a multimeter and check the connector for tightness and absence of voltage drop.
For long harness runs, consider using relay modules to reduce load on the vehicle’s lighting circuits. This approach preserves factory circuits and improves overall signal reliability under heavy towing conditions.
Inspect connections periodically, especially after exposure to water or road debris. Tighten loose terminals, replace corroded connectors, and secure any sagging cables to maintain a safe and consistent electrical connection.

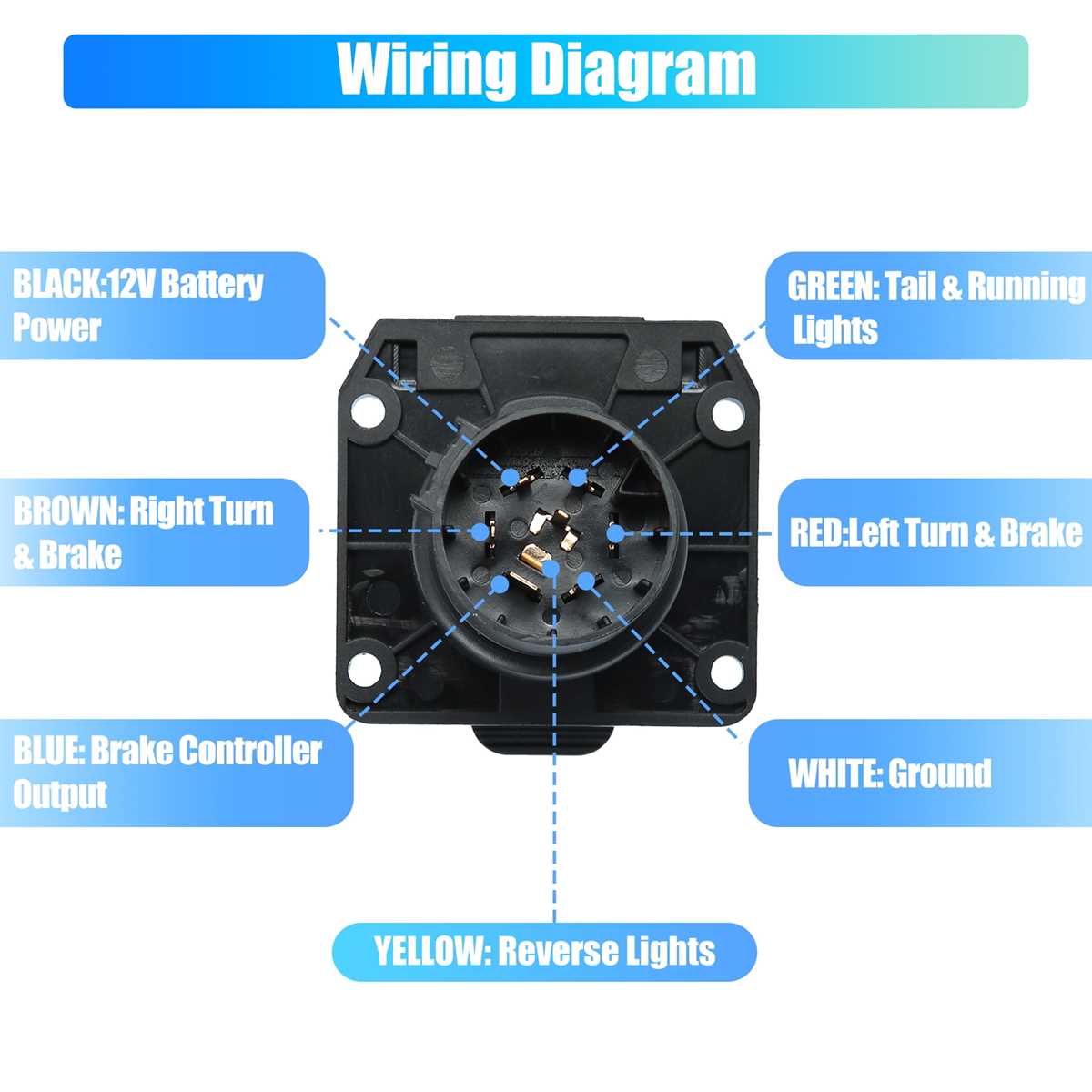

Mapping Trailer Light Pins to Vehicle Connector
Start by identifying each pin on the 7-pin or 4-pin connector using a multimeter. Verify which terminal corresponds to brake lights, turn signals, tail lights, and ground to prevent incorrect connections that could cause shorts or signal failure.
Match the vehicle’s output leads to the corresponding pins on the connector. Use color-coded cables or labeled terminals to simplify the process and avoid mixing up the left and right turn circuits, which is a common source of malfunction.
Secure each connection with crimped or soldered terminals and cover with heat-shrink tubing for moisture protection. Ensure the ground wire is attached to a clean metal surface free of paint or rust to maintain reliable current flow for all lights.
Test each circuit after mapping by activating turn signals, brake lights, and tail lights. Observe for consistent illumination and no flickering, adjusting any loose or incorrectly routed leads to achieve stable and safe operation during towing.
