Use a three-pin plug with a separate battery output lead when setting up the 3G charging unit found on many late-1980s and 1990s American trucks and passenger vehicles from the blue-oval brand. The large output stud connects directly to the positive battery terminal through a heavy 4–6 AWG cable, while the smaller regulator connector carries three control lines labeled A, S, and I. This arrangement keeps voltage stable at idle and under accessory load.
The A terminal receives constant battery voltage. Attach it to the main power junction or battery side of the starter relay using a fused 12–14 AWG lead. The S terminal senses system voltage; route it to the same distribution point as the output cable so the regulator reads the true electrical load. The I terminal links to the ignition circuit through the charge indicator lamp or a resistor. Without this ignition feed, the charging unit will not activate after engine start.
Ground quality affects charging performance. The housing must have a direct path to the engine block, and the block should connect to the chassis with a thick braided strap. Rusted mounting brackets or painted surfaces raise resistance and reduce output stability. Many installers add an extra 8–10 AWG ground lead from the rear housing bolt to the battery negative terminal to prevent voltage drop.

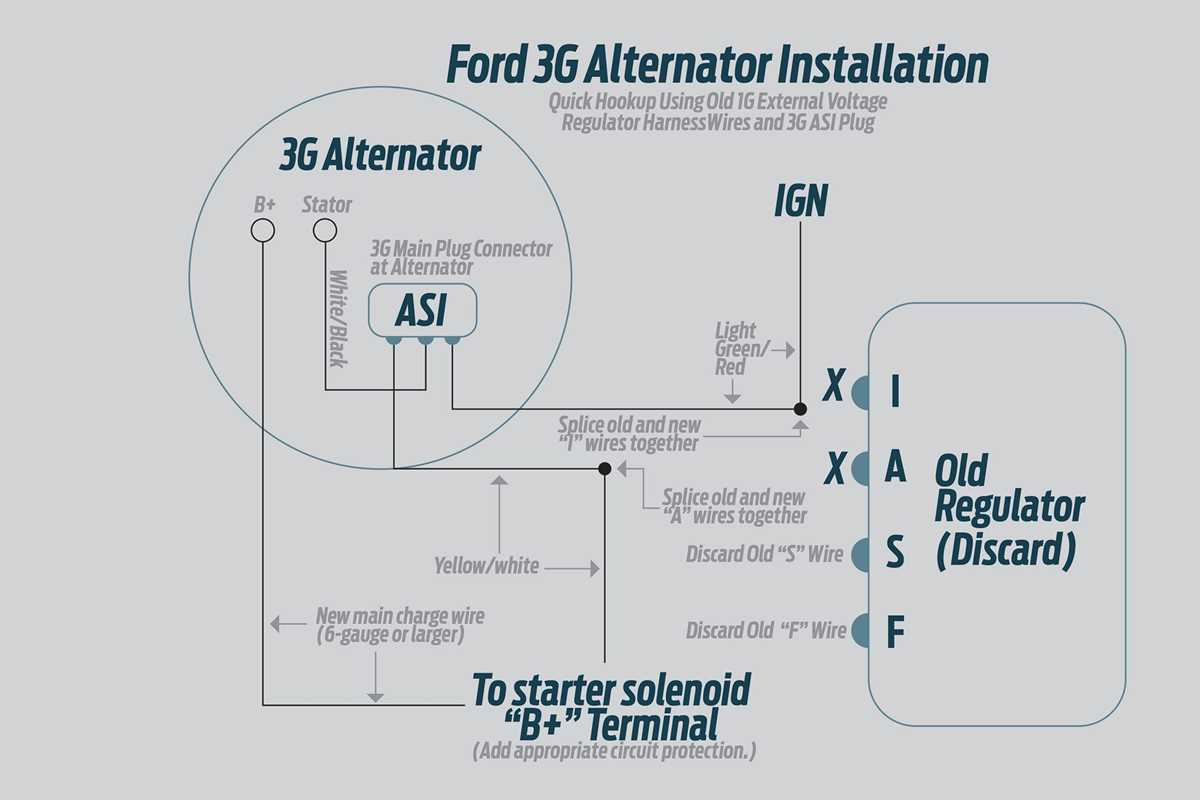

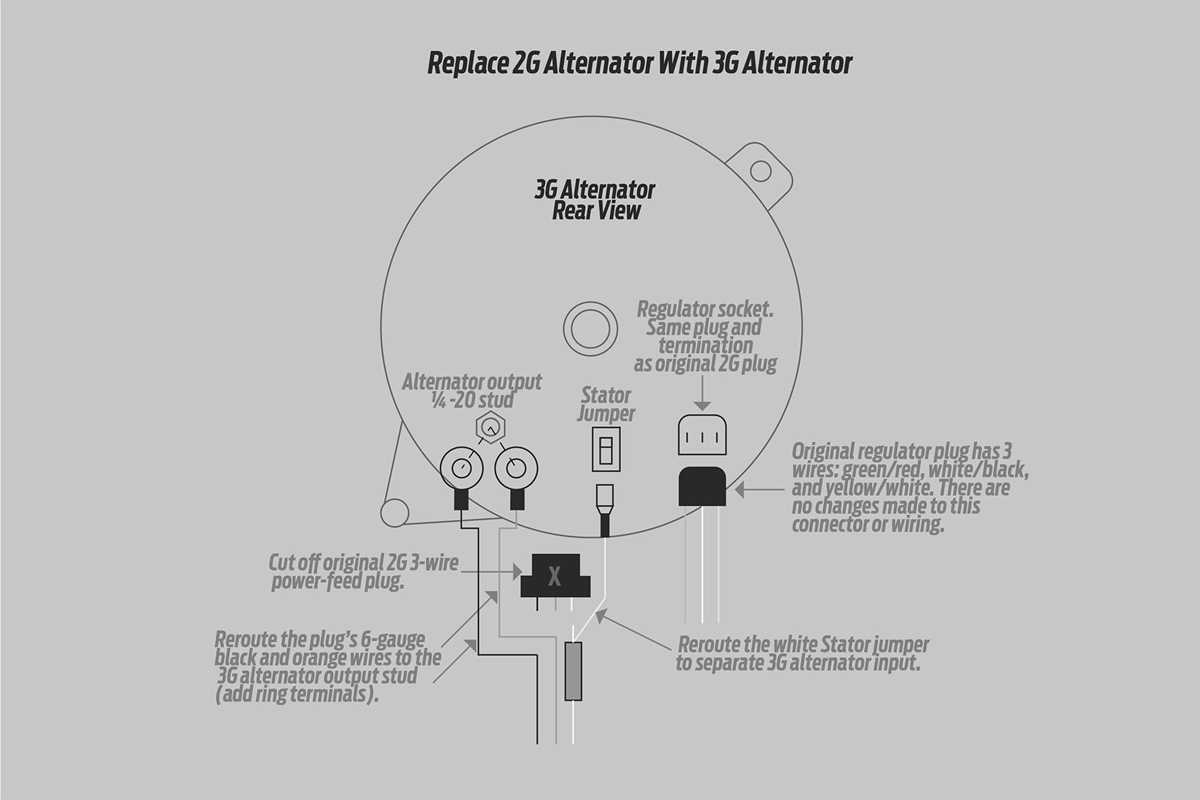

Vehicles upgraded from earlier externally regulated generators often require bypassing the original regulator harness. Cap unused control leads and route the new three-pin connector directly to the internal regulator ports. This modification removes the external control box and simplifies the electrical path, reducing heat buildup at the connector and preventing intermittent charging faults.
For high-demand setups such as electric fans, audio amplifiers, or auxiliary lighting, install a fusible link or 125–150 amp mega fuse in the main output line within 20–30 cm of the starter relay. This safeguard protects the charging circuit during a short condition while allowing the 3G unit to deliver its typical 95–130 amp output without restriction.
3G Charging Unit Connection Layout for Classic Blue-Oval Vehicles
Use a direct 4-gauge cable from the rear output stud of the 3G charge unit to the battery positive terminal; add a 175–200 A fuse or mega-fuse within 20 cm of the battery to prevent harness damage during a short circuit. The small three-pin regulator socket must be linked correctly: the “A” terminal receives constant battery voltage, the “I” terminal connects to the ignition-switched indicator circuit through the dashboard charge lamp, and the “S” terminal monitors system voltage through a short sense lead tied to the main power distribution point.
Terminal Identification and Connections
Each regulator pin performs a specific monitoring or excitation task. Mixing them causes unstable charging or no output.
- A terminal – constant +12 V from battery or starter relay battery post.
- I terminal – ignition feed through the instrument cluster charge indicator.
- S terminal – voltage sense lead tied to the main distribution junction.
- Output stud (B+) – heavy cable directly to battery through high-amp fuse.
Installation Notes for Stable Output
High-capacity 3G units can deliver 130–160 A, so factory charge leads from earlier systems are undersized. Replace the original cable with thicker copper and clean all ground points between engine block, chassis, and battery. A typical setup includes:
- 4-gauge charge lead with ring terminals crimped and soldered.
- Engine-to-frame ground strap rated at least 4 gauge.
- Short sense lead connected near the fuse block rather than the battery to improve voltage regulation accuracy.
- Dash indicator bulb retained in the ignition circuit; removing it can block rotor excitation.
With correct pin routing, heavy charge lead protection, and solid grounding, the 3G unit maintains 13.8–14.6 V under normal engine speeds while supporting electric fans, fuel pumps, and lighting loads.

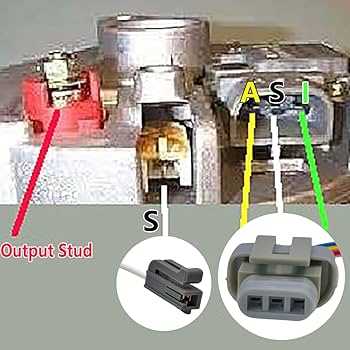

Pinout and Terminal Identification in the Ford 3G Alternator Wiring Diagram
Connect the main output stud directly to the battery positive line through a heavy-gauge cable (typically 4–6 AWG) and protect the circuit with a 125–175 A fuse or fusible link placed close to the battery. This terminal, often marked as “B+”, carries the full charging current and must be tightened with a lock washer to prevent voltage drop caused by vibration. Measure voltage at this stud during engine operation; values between 13.7 and 14.6 V confirm normal operation of the charging unit.
The three-pin regulator connector contains terminals labeled “A”, “S”, and “I”. Pin “A” serves as a voltage sense line and must connect directly to battery positive or the output stud using a short 14–16 AWG lead. Without this reference signal the regulator cannot adjust field current correctly, which leads to unstable voltage or undercharging. Keep the sense line free from splices and avoid routing it through long harness sections where resistance could distort the reading.
Terminal “S” functions as the stator signal feed. It receives AC feedback generated by the stator windings and sends it to the regulator module. This pin typically connects internally within the unit but may appear in the harness connector on some installations. If present externally, route the conductor using 16–18 AWG wire and avoid grounding it accidentally; grounding this point disables proper field control and the unit stops producing output.
Pin “I” activates the regulator through the ignition switch and also supplies current to the charge indicator lamp on the instrument cluster. Use a switched 12-volt line that becomes live only when the key is in the RUN position. The indicator lamp usually sits in series between the ignition feed and this terminal. If the lamp burns out or the circuit opens, excitation current may not reach the regulator during startup, leaving the charging system inactive until engine speed rises very high.
Grounding must not rely solely on mounting bolts. Attach a dedicated 8–10 AWG ground strap between the casing and engine block, then ensure the engine block itself has a low-resistance path to battery negative. Voltage drop between casing and battery negative should stay below 0.1 V while the system is loaded. Poor grounding leads to inaccurate voltage sensing and overheating of the rectifier bridge.
Verify each terminal with a multimeter before final assembly. With ignition off, only the “A” sense line should show battery voltage. After turning the key to RUN, the “I” terminal should also show approximately 12 V through the indicator circuit. Once the engine runs, the output stud voltage should climb above battery level and stabilize near 14 V. Any deviation from this sequence points directly to a misidentified terminal, incorrect conductor routing, or a damaged regulator connector.
