To ensure a smooth setup, first identify the power source and how it connects to the ceiling unit. Use the correct gauge wire to handle the required load. Make sure the power supply is switched off before starting any connections to avoid hazards.
When connecting the system to the fixture, follow the manufacturer’s wiring guidelines, paying close attention to ground, neutral, and live wires. Proper connections help prevent overheating and ensure longevity.
If using a combined switch to control both the circulation device and the illumination, ensure that each function is wired correctly to its corresponding terminal. Additionally, check that all terminals are properly tightened to avoid any electrical failures.
Finally, test the system once everything is connected to verify that both functions are operating as expected. If any issues arise, double-check connections, and ensure that no wires are short-circuited or improperly installed.

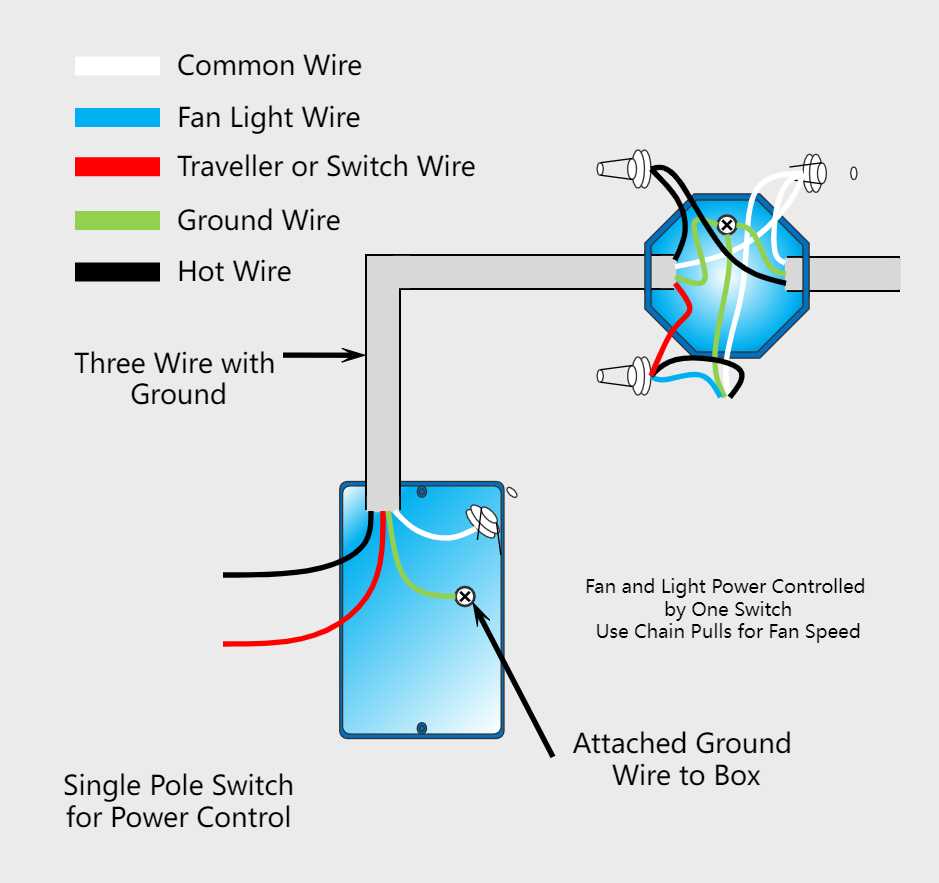

Fan Light Wiring Setup Guide
Before starting, ensure the power is completely turned off at the circuit breaker. Begin by connecting the power source wires to the ceiling junction box, ensuring proper grounding. The black (hot) wire should be connected to the switch and the red or blue wire will typically control the secondary function like the illumination.
Next, connect the neutral (white) wire from the ceiling to the fixture. For a combined switch, be sure that both functions (circulation and lighting) have their respective terminals. Tighten each terminal securely to avoid loose connections, which can lead to electrical faults.
After everything is connected, test the system by turning the power back on and checking both features. If any part isn’t working, recheck the connections to ensure they are correctly installed and that the circuit isn’t overloaded. Properly installed connections will help the system run efficiently without issues.
How to Connect Power Supply to Fan and Light Fixture
To start the installation, turn off the power at the breaker box to ensure safety. Begin by connecting the live (hot) wire from the power supply to the respective terminals on the fixture. Use wire nuts to secure the connection properly, making sure no copper is exposed.
Next, connect the neutral wire from the supply to the fixture’s neutral terminal. This wire should be white, and it is essential that the connection is tight and secure to prevent any possible electrical faults.
After the neutral wire is in place, focus on the ground connection. Attach the ground wire from the power source to the green screw or designated ground terminal on the fixture. Grounding is critical for safety and helps prevent electrical shock in case of malfunction.
For combined switches, you will need to connect the red or blue wire to the secondary function of the fixture, usually the illumination part. This allows the user to control both the movement and lighting independently from one switch.
Once all the wires are connected, ensure they are tightened securely and there are no loose strands that could cause a short circuit. It’s recommended to double-check each connection before proceeding.
Finally, restore the power from the circuit breaker and test both the fan and the light fixture. If everything operates correctly, your installation is complete. If either function doesn’t work, recheck all connections to ensure proper setup.
