Use a 14/2 gauge cable for standard 15-amp receptacles and a 12/2 gauge for 20-amp units. Connect the hot conductor to the brass terminal, the neutral to the silver terminal, and the ground wire to the green screw. Ensure all terminations are tight to prevent arcing or overheating.
Install the receptacle in a grounded box rated for the circuit amperage. Maintain a minimum distance of 12 inches from water sources unless a GFCI device is used. Secure cables with clamps within 6 inches of the box to reduce strain and prevent insulation damage.
When routing conductors, avoid sharp bends; keep bends at a radius no smaller than five times the cable diameter. Label each line at the breaker panel to match the corresponding receptacle, making future maintenance or upgrades safer and faster. Use color-coded conductors to distinguish phases and ensure consistent identification across all installations.
Verify continuity and polarity using a multimeter before energizing. Check for proper torque on all screws and connectors, and confirm that metal boxes are bonded to the grounding system. For high-demand circuits, consider using a dedicated line to prevent voltage drops and overheating under load.
Use insulated tools when handling live terminals during testing. Inspect insulation for nicks or abrasions and replace any damaged sections. Keep junction points accessible and avoid overcrowding boxes to maintain airflow and reduce the risk of heat buildup, which can degrade insulation over time.
Socket Connection Layout
Connect the live conductor to the brass terminal on the receptacle, ensuring a firm loop around the screw and tightening it clockwise. Neutral must attach to the silver terminal, and the protective ground should connect to the green screw. Avoid loose connections as they can cause sparking and overheating.
Use 12-gauge copper cables for circuits rated at 20 amps, and 14-gauge for 15-amp circuits. Maintain a maximum cable length of 50 feet from the breaker panel to prevent voltage drop. Label each phase clearly at both ends to prevent misrouting during maintenance.

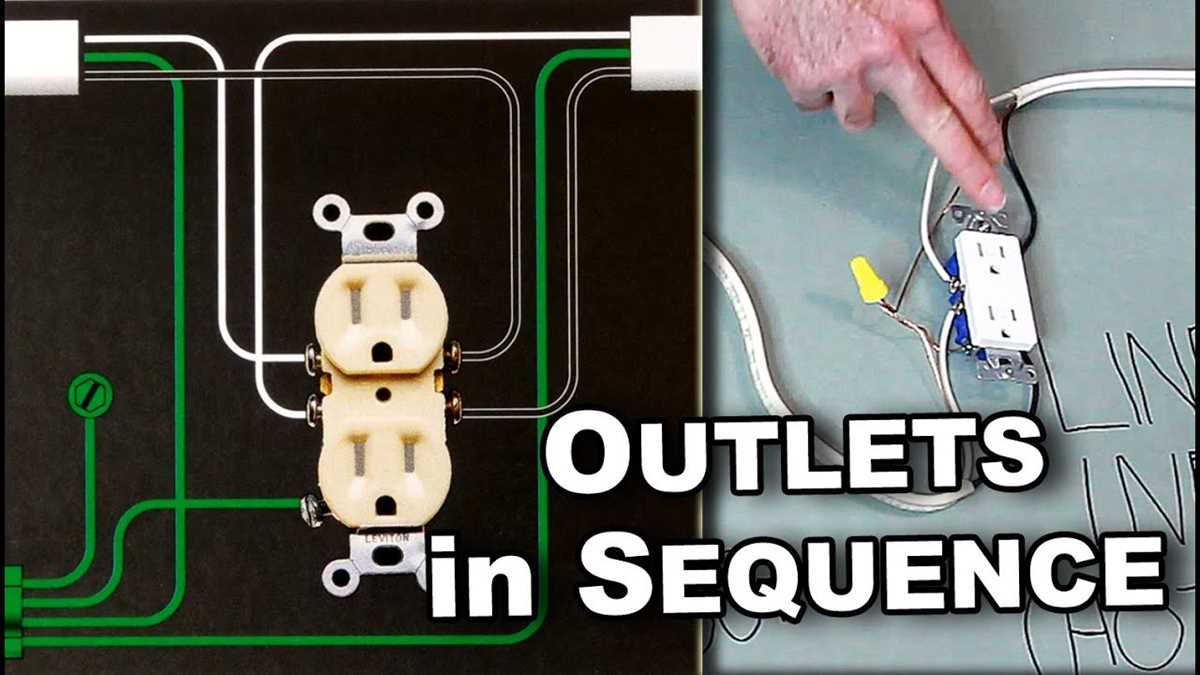

For daisy-chained receptacles, ensure that each junction box is accessible and that conductors are looped without sharp bends. Insulate exposed strands with heat-resistant sleeves. Test continuity with a multimeter after completing each connection before energizing the line.
Tip: Avoid twisting multiple wires under a single screw; instead, use a pigtail with a wire nut to combine conductors. Keep the enclosure dry, and verify that the breaker matches the circuit rating to prevent thermal overload. Consistent torque on terminals reduces long-term resistance buildup and enhances safety.
How to Connect Hot, Neutral, and Ground Wires Safely
Always cut power at the breaker before handling live conductors. Identify each wire by color: black or red as hot, white as neutral, and green or bare copper as ground. Strip approximately ¾ inch of insulation from each end, then twist stranded conductors to prevent fraying. Use screw terminals or push-in connectors rated for the wire gauge; never force wires into undersized clamps. Tighten screws clockwise until the wire cannot move, ensuring solid contact without damaging the conductor.
Follow a methodical sequence to reduce short circuits:
- Connect the ground wire to the green terminal or grounding screw first.
- Attach the neutral conductor to the silver-colored terminal.
- Finally, secure the hot wire to the brass terminal, checking for proper alignment and no exposed strands outside the terminal.
After connections, gently tug each wire to confirm stability. Fold conductors neatly back into the box to avoid pinching, then restore power and test voltage with a non-contact tester before inserting any cover plate.
