Always label all power lines and circuits before installation to prevent confusion during maintenance and reduce the risk of shorts. Use color-coded cables and durable connectors rated for marine conditions.
Install separate circuits for lighting, instruments, and auxiliary equipment to isolate faults and make troubleshooting straightforward. Ensure each circuit includes appropriately rated fuses or breakers to protect components from overloads.
Position batteries and distribution panels strategically to minimize cable length and voltage drop. Keep connections dry and secure, using corrosion-resistant terminals and protective covers to maintain reliable performance.
Document each connection and component in a detailed schematic to facilitate future upgrades or repairs. Include specifications for cable gauge, fuse rating, and voltage requirements for each subsystem.

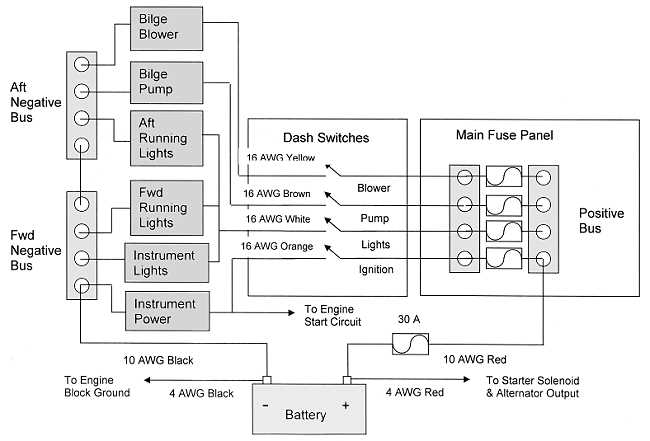

Power Layouts and Connections on Marine Vessels
Separate high-current and low-current circuits to prevent interference with navigation instruments. Use at least 10 AWG cables for starter circuits and 14 AWG for lighting loops.
Install a main distribution panel near the battery bank to centralize control. Include labeled breakers for each subsystem, and leave space for future additions like radios or bilge pumps.
Use marine-grade connectors and heat-shrink tubing to protect joints from moisture and vibration. Crimp terminals with a proper tool rather than twisting or soldering for long-term reliability.
Route power lines along the hull’s interior structure to avoid abrasion and keep them secured with insulated clamps every 12–18 inches. Avoid sharp bends or tight coils that can increase resistance.
Include an isolated grounding bus to reduce stray currents and corrosion. Connect all metal fittings, engines, and battery negatives to this bus, and inspect for loose connections monthly.
Document each connection with voltage ratings and fuse sizes to simplify repairs. For example, lighting circuits may use 5–10 A fuses while navigation electronics often require 3–5 A protection.
Test each circuit individually after installation using a multimeter to confirm voltage and continuity. Check for overheating at connectors and ensure all indicator lights and devices operate without flickering.

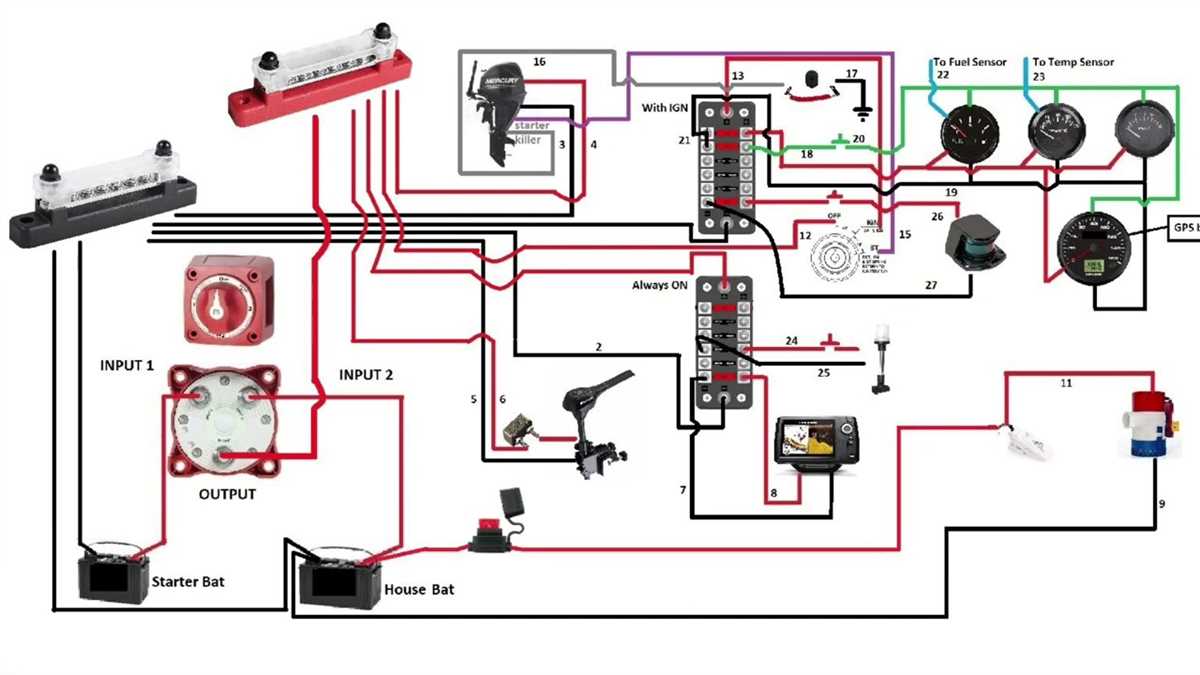

How to Connect Boat Battery and Main Power Lines
Always disconnect existing batteries before starting to prevent accidental short circuits or sparks. Ensure all switches and breakers are in the off position.
Use cables rated for marine use with proper amperage to handle starting motors and auxiliary loads. Typically, 2/0 or 4/0 AWG is recommended for main positive connections.
Position the battery bank close to the main distribution panel to reduce voltage drop. Keep the bank elevated and secured in a ventilated compartment to prevent acid contact and corrosion.
- Connect the positive terminal of the first battery to the main switch using a red marine cable.
- Link subsequent batteries in series or parallel depending on required voltage or capacity.
- Ensure tight, clean connections with corrosion-resistant clamps.
Run negative cables to a central grounding bus instead of directly to each device. This minimizes stray currents and simplifies troubleshooting.
Install inline fuses or circuit breakers close to each battery positive terminal. For example, a 100–200 A fuse protects starter circuits, while smaller 30–50 A breakers can safeguard auxiliary systems.
- Check cable routing to avoid chafing against sharp edges.
- Secure cables with insulated clamps every 12–18 inches.
- Leave slack for engine movement but avoid loops that can trap moisture.
After connections are complete, test voltage at the main panel with a multimeter. Verify each branch circuit powers lights, instruments, and pumps without flicker or drop under load.
