Connect the live terminal first using a properly rated cable and fuse. Ensure the wire gauge matches the system’s amperage to prevent overheating or tripped breakers.
Verify the neutral and earth connections before applying power. Use corrosion-resistant terminals and secure all screws tightly to maintain stable current flow and reduce voltage drop.
Route cables along protected channels to prevent abrasion or contact with moisture. Avoid sharp bends and proximity to plumbing lines that could compromise insulation over time.
Test each component individually after connection. Confirm that the heating element, safety cut-off, and controls respond correctly, and measure voltage at each terminal to ensure proper operation.

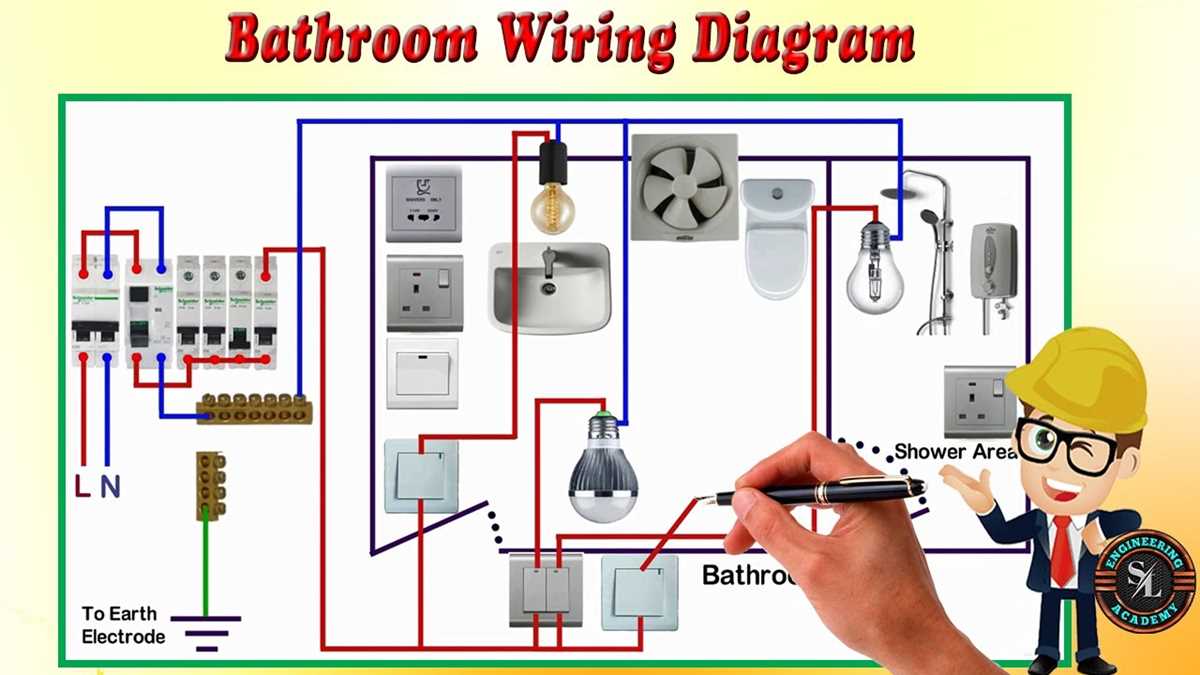

Domestic Shower Electrical Connections Guide
Connect the live wire to the main terminal using an appropriately rated cable and fuse. Verify the amperage matches the heating element requirements to prevent overload and tripped protection devices.
Secure the neutral and earth leads to the designated terminals. Use corrosion-resistant screws and tighten to the specified torque to maintain consistent current flow and reduce the risk of voltage fluctuations.
Route all cables along insulated channels to avoid abrasion or exposure to moisture. Keep conductors away from hot water pipes and sharp edges, and use clips or conduits to prevent accidental movement or damage.
Test each connection individually after installation. Apply power briefly to confirm the element and control switch respond correctly, and measure voltage across terminals to ensure safe and reliable operation before sealing the panel.

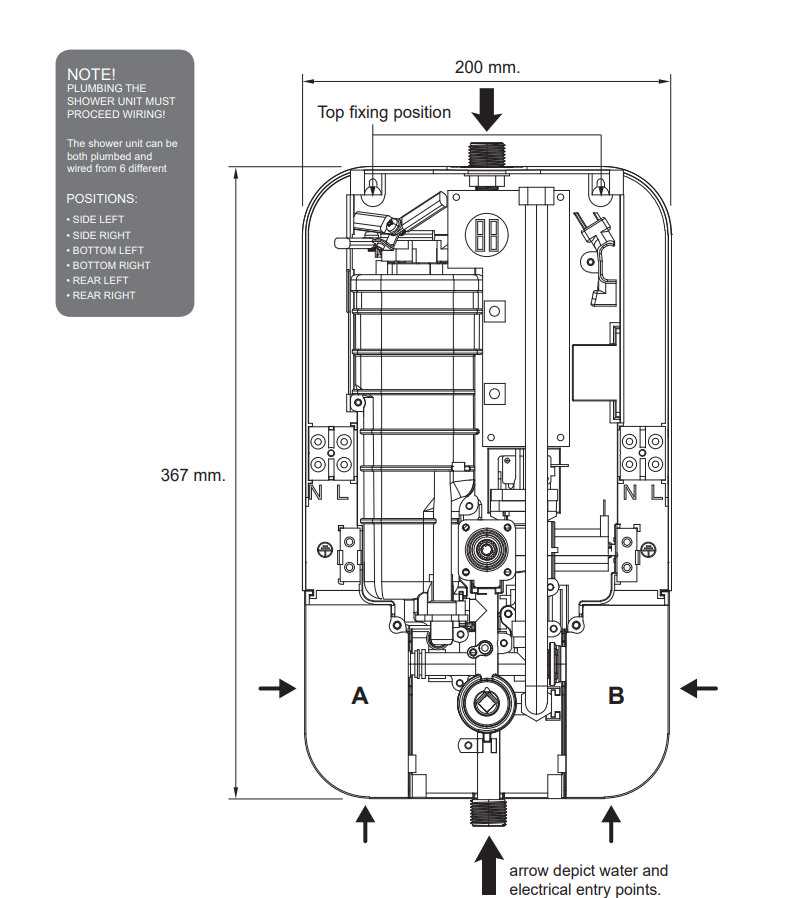

Identifying Live Neutral and Earth Terminals
Always start by locating the main live terminal. This is typically marked with an L or red indicator. Ensure the power source is switched off before handling the connection to prevent shock hazards.
Confirm the neutral terminal by checking for the N marking or blue color coding. This line completes the return path for current and must be securely connected to avoid voltage imbalances.
Identify the earth or grounding point. Look for a green or yellow-green marking. Proper grounding ensures that any leakage current is safely diverted to prevent electric shocks.
Follow a stepwise connection procedure:
- Turn off the main power supply at the breaker
- Verify terminal markings with a tester
- Attach the live lead to the L terminal
- Secure the neutral lead to the N terminal
- Connect the earth lead to the grounding point
Inspect terminal screws and connectors for signs of corrosion or looseness. Tighten all fasteners according to the manufacturer’s specifications to ensure stable electrical contact.
Use a multimeter to confirm continuity between neutral and earth. There should be no direct short; continuity tests verify that connections are properly isolated and correctly routed.
Label each conductor after connection using tape or heat-shrink markers. Clear identification of live, neutral, and ground lines simplifies maintenance and reduces the risk of future misconnection.
Test the system incrementally. Apply power and check that each component operates correctly. Monitor voltage at live, neutral, and earth terminals to confirm safe and reliable installation before enclosing the panel.
