Connect the main power leads first to prevent accidental shorts and ensure correct polarity. Red terminals carry positive current, while black terminals handle negative flow. Verify each connection with a multimeter before energizing the system.
Secure all auxiliary connectors including throttle sensors, brake cutoffs, and display links. Loose connections can trigger voltage drops, reduce performance, and cause unexpected shutdowns. Use heat-shrink tubing or terminal covers to maintain contact integrity.
Align the motor input terminals carefully with the power module outputs. Matching phase and hall sensor connections is critical for smooth torque delivery. Incorrect sequencing can produce vibration, noise, or prevent the motor from starting.
Check signal polarity on control interfaces to avoid damage to sensors and LEDs. Many modules provide labeled pins–use these to confirm correct voltage levels and prevent reverse current flow that can harm components.
Electric Bike Controller Connection Guide
Attach the main power leads first to the module, confirming positive and negative terminals match the battery pack outputs. Incorrect polarity can damage the internal circuitry instantly, so use a digital tester to verify before tightening connectors.
Connect auxiliary interfaces carefully including throttle sensors, brake cutoffs, and display panels. Ensure each plug is fully seated and secured with clips or locking tabs to prevent intermittent signals that can interrupt motor performance or trigger faults.
Align motor phase and sensor terminals precisely with the output sockets of the module. Reversing any phase or hall sensor connection can cause vibration, erratic rotation, or prevent the motor from starting, so mark and verify each lead before energizing the system.

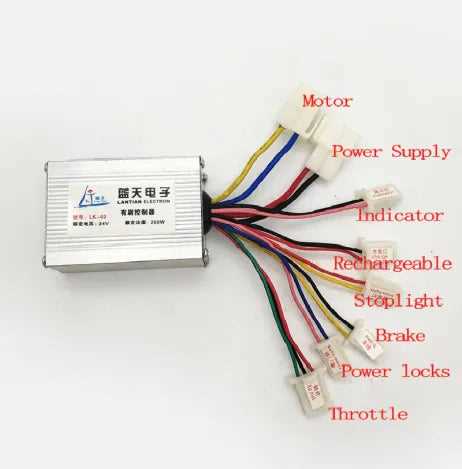

Identifying Controller Terminals and Color Codes
Check each terminal carefully before connecting to any system. Positive leads are typically red, negative black, and phase outputs may use yellow, green, and blue. Using a multimeter to verify each pin reduces the risk of damaging the module or motor.
Document all signal connections by labeling or photographing each plug. Throttle inputs often have a red, black, and green combination, while brake cutoffs usually use a blue and black pair. Accurate identification ensures proper functionality of safety features and speed control.
Use reference charts where available to match colored leads with their respective functions. Most aftermarket modules follow standard color conventions, but older or unbranded units may vary. Confirm continuity and voltage levels for each terminal before energizing the system.
Secure all connectors after identification to prevent intermittent contact. Loose or misaligned pins can cause sudden stops, erratic acceleration, or sensor errors. Apply dielectric grease if connectors are exposed to moisture or dust to maintain long-term reliability.
Test the system incrementally after all leads are identified and connected. Start with low voltage and minimal load, verifying throttle response, sensor triggers, and display readings. Gradually increase power to confirm proper operation without overheating or sparks, ensuring safe and stable performance.
