Start by ensuring the power is completely turned off at the main panel. This is critical for safety before you begin the installation of any breaker or circuit protection system.
Next, locate the breaker slot where you intend to install the 30 Amp protection unit. Make sure the electrical panel is compatible with the new unit, as there are different sizes and configurations. The incoming line (from the main power source) should be securely connected to the breaker, ensuring that the proper gauge wire is used for the power demand.
For the output connection, connect the wires leading to the device or appliances you want to control with the breaker. Double-check that all connections are tightly secured and that no bare wires are exposed. Use appropriate wire connectors or terminal lugs where necessary to ensure a secure fit and avoid loose connections that can lead to overheating.
Eaton 30 Amp Disconnect Installation and Wiring Guide
Before starting any electrical work, confirm that the power is completely shut off from the main electrical panel to avoid electrical shock or damage. This is a necessary first step to ensure safety.
Prepare the area by selecting a suitable location for the new circuit protection unit. Ensure it is easily accessible for future maintenance and not obstructed by other equipment. The unit should also be installed at an appropriate height, typically between 48 and 60 inches above the ground for standard accessibility.
Next, identify the incoming power line and the outgoing line that will be protected by the unit. For proper installation, the gauge of the incoming wire must match the recommended size for the breaker to handle the required load. Typically, a 10 AWG wire is used for most installations of this type.
Mount the protection unit securely to the panel or wall, ensuring that the fasteners are tight but not over-tightened. Make sure the mounting bracket or back plate is level before securing it into place. A stable, level unit prevents future alignment issues when connecting wires.
Once the unit is mounted, begin by connecting the incoming power line to the main terminal block. This connection should be solid, with no exposed wire. Double-check the tightness of the terminal screw to avoid any loose connections that could lead to overheating or arcing.
After securing the incoming line, connect the outgoing line to the secondary terminal. This wire should be connected in the same manner–ensuring a tight and secure fit. If the outgoing wire is long, make sure to leave some slack but avoid excess to prevent any unnecessary wire exposure.
Verify that each connection is properly insulated, and no bare wire is exposed outside of the terminal block. This step prevents accidental shorts or electrical hazards. Use electrical tape or wire connectors if needed to cover any exposed wire ends.
Finally, test the system by turning the power back on at the main electrical panel. Check for proper operation by switching the unit on and off. If everything operates smoothly without tripping or malfunctioning, the installation is complete. If there are any issues, recheck all connections and troubleshoot any loose wires or faulty components.

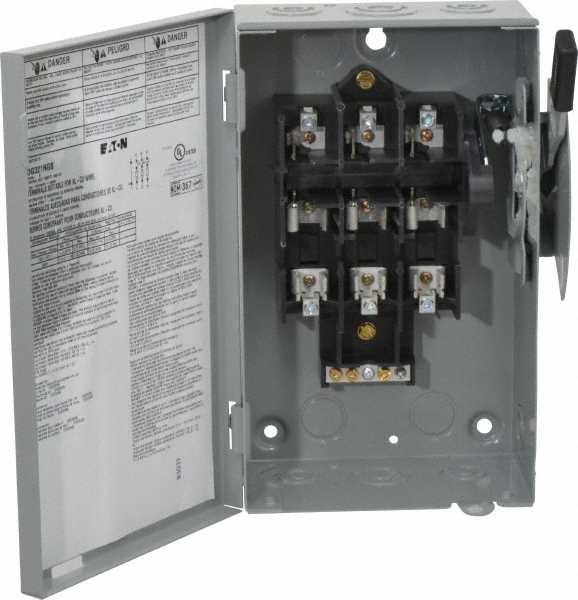

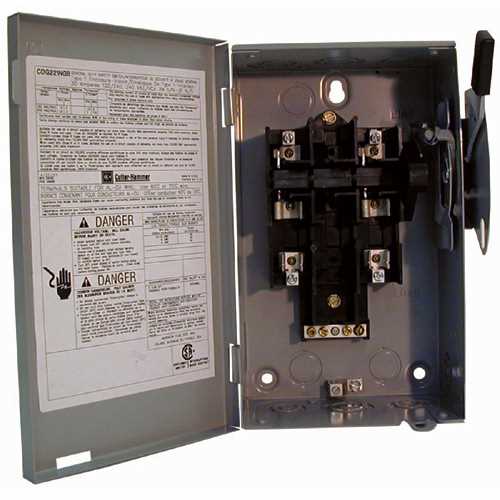

How to Wire the Eaton 30 Amp Disconnect Switch
Start by ensuring that the main power is off and verify with a voltage tester. This will prevent electrical accidents during the installation process.
Locate the incoming power wire and connect it to the main terminal of the switch. Use a wire stripper to expose the appropriate length of wire before making the connection. Tighten the terminal screw securely to ensure a stable connection.
Next, take the outgoing wire and attach it to the second terminal of the switch. Again, strip the wire to the correct length, insert it into the terminal, and tighten the screw to ensure it is held firmly in place.
If needed, connect the ground wire to the designated grounding terminal. Ensure that the ground wire is properly secured to avoid potential electrical faults.
Once all connections are made, double-check for any exposed wires or loose connections. After confirming everything is secure, restore power to the circuit and test the switch to ensure proper operation.
