Match the impedance of each speaker to the amplifier output to prevent overloading and ensure maximum power transfer. Check the labeled terminals and confirm polarity before making connections to avoid phase cancellation.
Choose series or parallel connections based on total load and amplifier rating. Connecting two windings in series doubles the impedance, while parallel halves it, allowing fine-tuning of system performance and safety.
Secure all terminals with properly rated connectors and insulated fasteners to prevent shorts or loose contacts. Ensure wires are routed away from heat sources or sharp edges that could damage insulation and reduce lifespan.
Test the system incrementally by playing low-frequency signals at low volume. Observe the driver movement and amplifier response, adjusting connections or crossover settings to achieve balanced output without distortion.
High-Power Speaker Connection Guide
Check the impedance rating of each driver and compare it with the amplifier output before making any connections. Connecting mismatched loads can damage the amplifier or reduce sound quality.
Identify all terminals on each driver and confirm polarity using the markings. Reversing polarity can cause phase issues and reduce low-frequency output when multiple drivers are used together.
Decide between series and parallel setups based on the desired total load. Series connections increase total resistance, while parallel connections reduce it, impacting how the amplifier handles current.
Use properly rated cables and connectors to handle high current without overheating. Insulate exposed metal to prevent shorts, and route cables away from sharp edges or heat sources.
Secure each driver firmly in its enclosure to prevent vibration-induced loosening. Loose mounts can create rattling and reduce the efficiency of sound transfer from the magnet to the cone.
Test connections at low volume first to confirm proper movement and polarity. Listen for distortion or uneven output, and adjust the series or parallel configuration if necessary to balance the system.
Label all conductors clearly for future maintenance and upgrades. Identifying which paths connect to the amplifier, crossover, or other devices speeds up troubleshooting and prevents accidental misconnection.
Identifying Terminals and Impedance of Dual Voice Coil Subwoofers
Locate the positive and negative posts first. Each electromagnetic winding has two clearly marked terminals, often color-coded or stamped with “+” and “-”. Use a multimeter to verify continuity between terminals to avoid miswiring.
Check the nominal resistance of each winding. Most dual electromagnet drivers offer 2 Ω or 4 Ω per coil. Measuring with an ohmmeter gives the DC resistance, which is typically 10–15% lower than the rated impedance. This ensures proper amplifier matching.

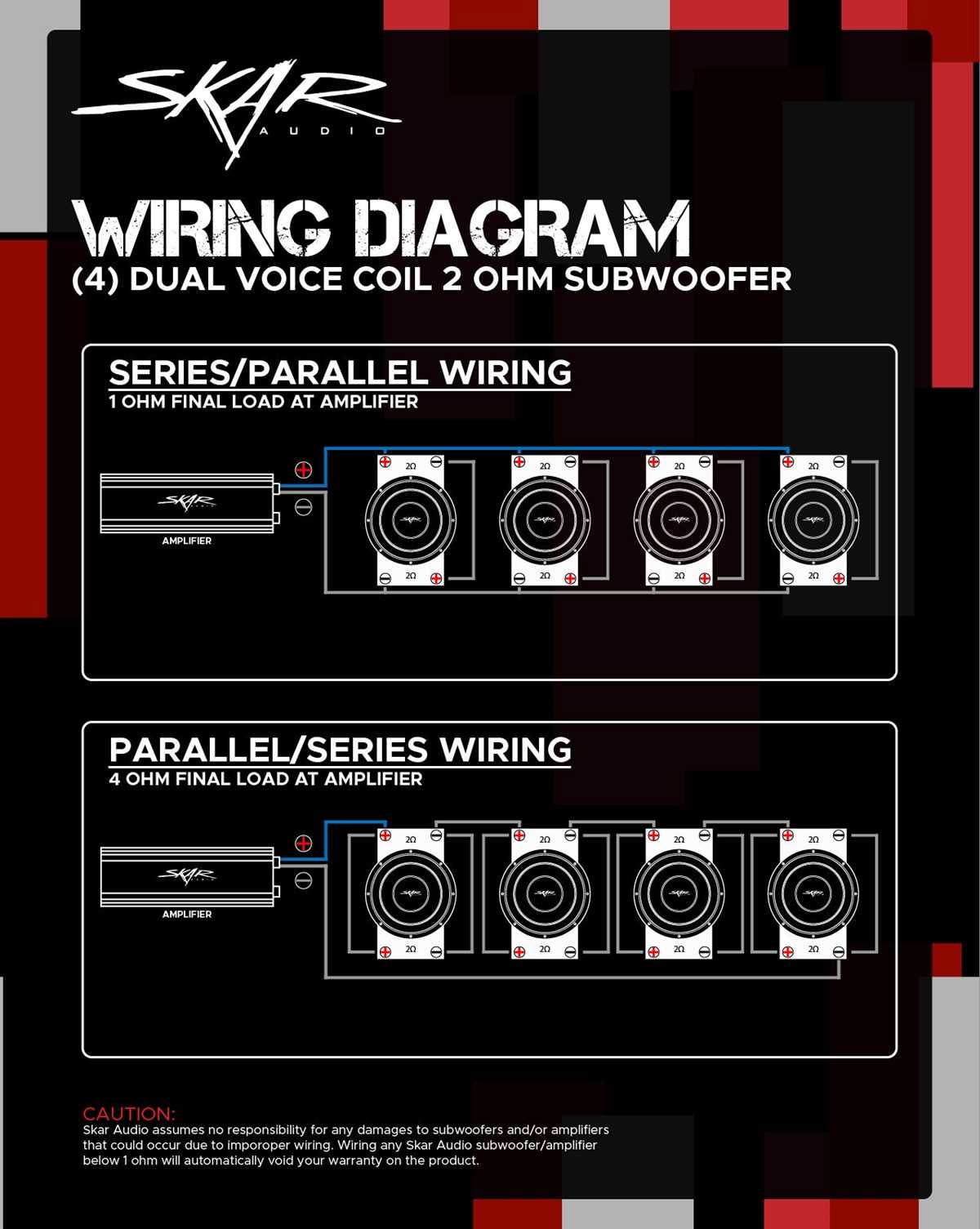

Series or parallel connections change the load seen by the amplifier:

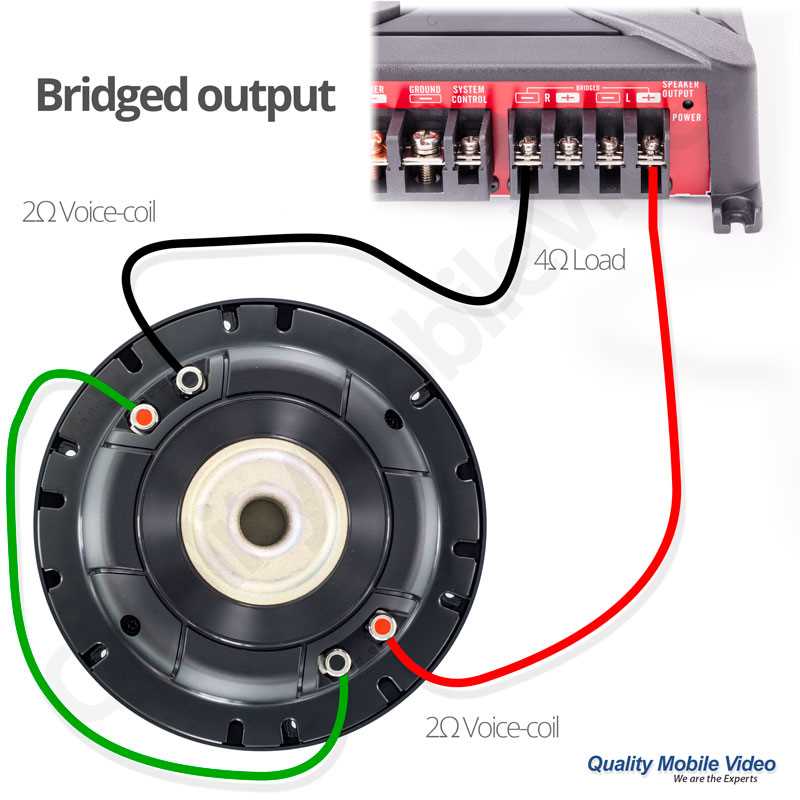

- Series: Connect the positive of one winding to the negative of the other; the total resistance equals the sum of both coils.
- Parallel: Tie both positives together and both negatives together; the resulting impedance is half of a single winding.
Mark terminals clearly on the enclosure before final installation. Confusion between windings can lead to phase cancellation, reducing output and causing uneven frequency response. Use heat-shrink sleeves or numbered tags for permanent identification.
Test the assembled configuration with a signal generator at low volume. Verify that impedance stays within safe limits for the amplifier. Oscillations, clipping, or abnormal heat indicate a misconnection or mismatch between windings and amplifier capacity.
