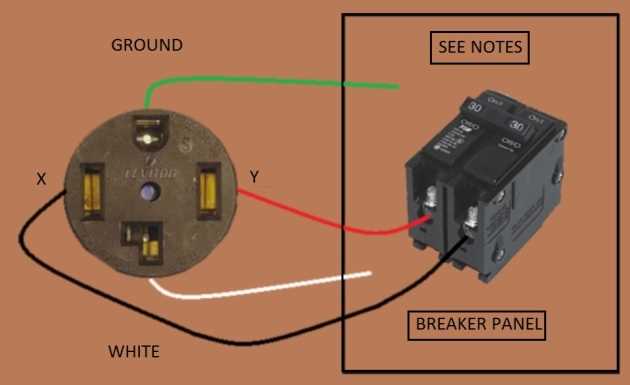

Verify power supply compatibility before attaching any cords. Most household units require 240 volts with a dedicated circuit breaker rated at 30 amps. Using the wrong voltage can trip breakers or damage heating elements.
Match wire colors precisely to terminals: black or red for hot, white for neutral, and green or bare for grounding. Incorrect connections can lead to shorts or fire hazards.
Secure all fasteners with proper torque to prevent loose contacts. Loose terminals can cause arcing, overheating, and intermittent operation.
Use a multimeter to confirm continuity and proper polarity after installation. Testing before powering the unit ensures safe operation and prevents electrical faults.
Electrical Connections with Color Codes and Safe Setup Instructions
Confirm voltage requirements before connecting any leads. Most household units need 240 volts with a dedicated 30-amp breaker. Using a lower rating can cause overheating and damage components.
Identify each conductor by color: black or red for live currents, white for neutral, and green or bare for grounding. Misidentifying wires increases the risk of short circuits or fire.
Always strip insulation only as much as necessary to make a secure terminal connection. Excess exposed copper can create accidental contact and safety hazards.
Fasten terminals tightly to prevent loose connections. Even a slightly loose screw can lead to arcing, intermittent operation, or melted connectors.
Check continuity with a multimeter before powering the appliance. Verifying connections ensures correct polarity and prevents electrical faults during operation.
Use cable clamps to secure incoming leads to the chassis. This reduces stress on the conductors and avoids accidental disconnection when the unit is moved.
Label each conductor after installation for future reference. Clear identification simplifies troubleshooting and maintenance without the need to trace circuits repeatedly.
Identifying Conductor Types and Their Functions
Separate each lead by color to determine its purpose. Black or red cables carry live current, white serves as neutral, and green or bare copper functions as the ground. Using the wrong terminal for any conductor can cause short circuits or damage internal components.
Inspect insulation and gauge before connecting. Thicker strands handle higher amperage safely, while damaged jackets must be replaced to prevent electrical hazards. Understanding the role and rating of each cable ensures secure and reliable operation of the appliance.
