For efficient control of electrical components, using a switching module can simplify operations. This component enables you to safely control high-voltage systems with low-voltage control signals. The design consists of several key elements, including input control and output terminals, each of which must be connected according to the correct polarity and voltage ratings.
Start by identifying the input and output sections. The input will typically be linked to a microcontroller or a low-voltage control system, while the output is connected to the load. Properly connecting these terminals ensures reliable operation without risk of electrical damage. Pay special attention to the current rating of each terminal to avoid overloading the system.
Once the components are connected, a functional test should be performed to confirm that the module is responding to input signals and properly controlling the output device. In case of issues such as non-operation or overheating, check the connections for errors, such as incorrect polarities or insufficient insulation. Regular inspection is necessary to maintain safe and reliable performance.

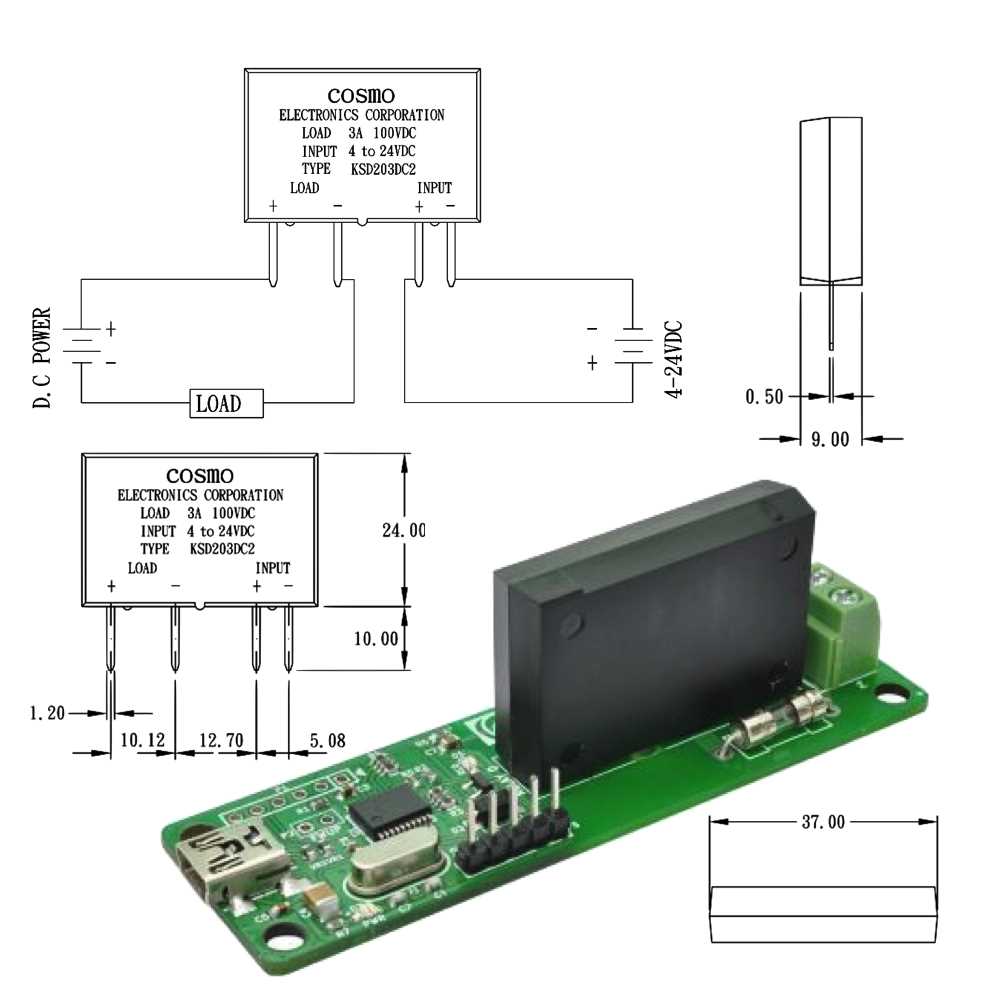

DC Solid State Relay Circuit Diagram
To correctly connect a switching module for controlling high-power systems, first identify the two primary terminals: the input and the output. The input should be connected to a low-voltage control signal, such as a microcontroller or control switch. The output will be connected to the load, like a motor or lighting system, ensuring the connection is made according to the load’s voltage and current requirements. Make sure to choose a module with appropriate voltage and current ratings to prevent any damage.
Testing and Troubleshooting
Once the connections are made, it’s important to conduct a test. Activate the low-voltage control input and verify that the module is correctly activating the load. If the system fails to respond, check the polarity and ensure all connections are secure. Also, verify the power supply and confirm that it matches the input rating of the device. Regular maintenance checks are important to avoid malfunction due to wear and tear or loose connections.
Step-by-Step Guide to Wiring a DC Solid State Relay
Start by selecting the appropriate module for your application, ensuring it can handle the required voltage and current ratings. Check the manufacturer’s specifications to confirm that the device can handle the load’s power requirements. Choose a relay with an input range that matches your control signal’s voltage to ensure proper operation.
Next, identify the input and output terminals. The input side typically connects to a low-voltage control system, such as a microcontroller or a switch. Connect the positive input terminal to the control signal’s positive terminal, ensuring you connect the ground of the control signal to the ground terminal on the device. Double-check for secure and correct connections to avoid malfunction.
On the output side, connect the load terminals to the device you wish to control. This could be a motor, fan, or light. Be sure to connect the load in such a way that the polarity and voltage ratings match the specifications for the load. If unsure, refer to the manufacturer’s manual for correct wiring instructions to prevent damage to the equipment.
After making all connections, power up the control system and test the relay. Verify that the load activates when the control signal is triggered. If the load doesn’t respond, recheck all connections for correct polarity and secure contacts. In case of issues, ensure that the control signal voltage is within the recommended range for proper activation.
Finally, perform regular checks and maintenance to ensure continued performance. Inspect for any signs of wear, such as loose connections or overheating, especially after extended use. Keep the device clean and ensure no exposed wires are at risk of shorting out. This proactive approach will extend the lifespan of your system and ensure reliable operation.
