Connect a DPDT switch directly to the terminals of your brushed shaft device to achieve simple direction changes without complex relays. Use 12V or 24V supply depending on your load requirements and ensure the current rating matches the load to prevent overheating.
Use protective diodes across the windings to suppress voltage spikes during polarity switching. This prevents damage to your power source and the drive components while maintaining smooth transitions between rotational directions.
Label all connections clearly and keep wiring short to minimize resistance and voltage drop. For devices with higher torque, incorporate a fuse rated slightly above the operating current to safeguard against accidental shorts or stalled shafts.

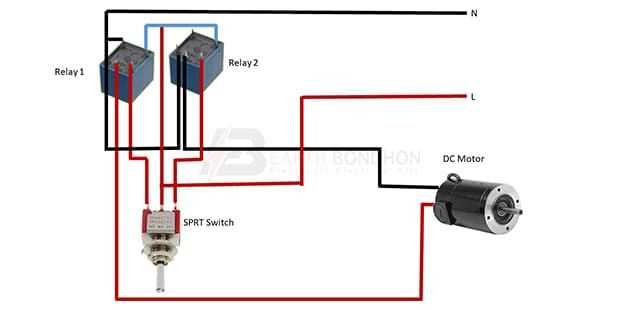

DC Motor Forward and Reverse Circuit Diagram with Wiring Guide

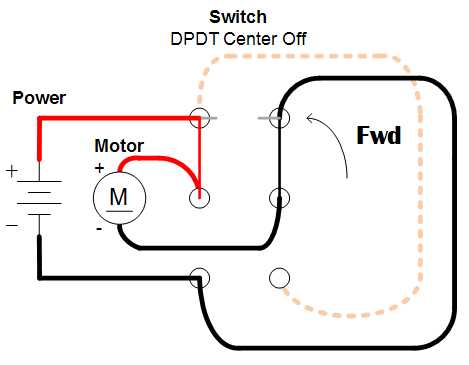

Use a double pole double throw switch to toggle the direction of your shaft assembly. Connect the power supply to the middle terminals and the load leads to the outer terminals. Ensure the supply voltage matches the rated input of the device, and install flyback diodes across the windings to prevent voltage spikes when switching directions. Keep wire lengths under 50 cm to reduce resistance and voltage drop.
Test the setup gradually by applying low voltage first and checking the shaft’s response. Label all terminals clearly, and secure connections with proper insulation. For high-current applications, include a fuse rated slightly above the expected load to protect against overheating or accidental short circuits. This method allows controlled bi-directional operation while maintaining component safety.
Choosing Components for Forward and Reverse Motor Control
Select a DPDT switch rated for at least 1.5 times the operating current of your rotating shaft assembly. For loads above 5 A, consider a mechanical relay or solid-state switch to handle heat dissipation. Use copper wiring with at least 18 AWG for currents under 5 A, and 14 AWG for heavier loads to prevent voltage drop and maintain consistent speed.
Include flyback diodes across each winding to absorb voltage spikes caused by sudden polarity changes. Standard 1N4007 diodes are sufficient for currents up to 1 A, while 1N5408 or Schottky diodes are better for higher current draws. Proper insulation and short leads improve response time and reduce the risk of accidental shorts during operation.
Choose a suitable power supply with voltage matching the device’s rated input and current capacity exceeding the maximum expected load by 20–30%. For applications requiring smooth starts, consider adding a small series resistor or PWM controller to limit inrush current. Confirm that all connectors and terminals are rated for the same voltage and current to ensure stable, reliable performance.
