To perform maintenance or repair tasks effectively, it’s important to first familiarize yourself with the various elements that make up your equipment. Whether you are dealing with the engine, ignition system, or other key components, understanding their function will make diagnosing issues easier.
Refer to the labeled schematics to identify the location and role of each part. For instance, familiarize yourself with the fuel system and the associated connections to avoid fuel leaks. Check for worn-out parts like the air filter or spark plug that might cause poor performance.
Once you identify the faulty components, gather the right replacement parts and ensure that you have the proper tools to perform the repair. Having a clear overview of the equipment’s structure will save you time and avoid unnecessary steps during troubleshooting.
Identifying Key Components in the 30cc Engine Tool
Start by locating the ignition coil, which plays a critical role in sparking the engine. Ensure it’s properly connected and free from corrosion or wear. A faulty coil can cause the engine to fail to start.

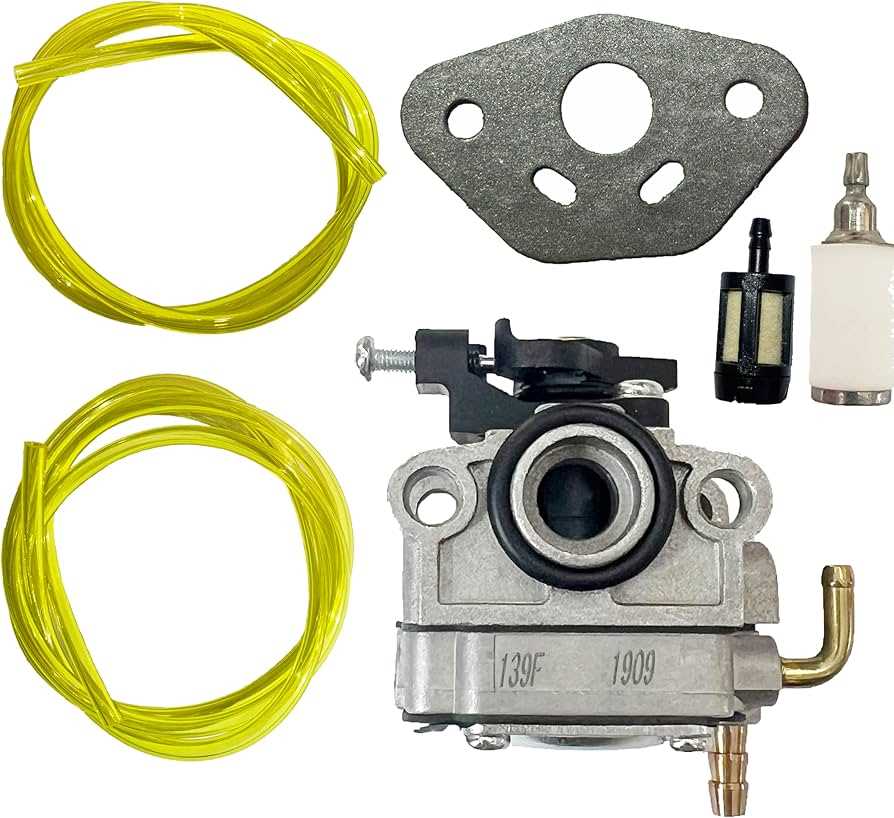

The fuel system is another area to focus on, particularly the fuel lines and carburetor. Check the fuel lines for leaks or blockages and make sure the carburetor is clean and functioning. A clogged carburetor can lead to poor performance or stalling.
Inspect the air filter for dirt buildup, as this restricts airflow to the engine and affects power. Replace the filter if it appears clogged or damaged to maintain optimal engine performance.
The cutting head and spool assembly are essential for proper operation. If the cutting head is worn or damaged, it may not cut effectively. Inspect the spool for wear and ensure it is loaded correctly with string for smooth operation.
How to Replace Commonly Used Components in the 30cc Engine Tool
To replace the spark plug, start by removing the spark plug cover. Use a spark plug wrench to unscrew the old plug and replace it with a new one, ensuring it’s properly tightened. Make sure the new plug has the correct gap for optimal performance.
If the fuel lines need replacing, begin by disconnecting the fuel tank and draining any remaining fuel. Use pliers to remove the old fuel lines and replace them with new ones. Ensure the connections are secure to avoid any leaks.
For replacing the air filter, first remove the cover that secures it in place. Take out the old filter and clean the area around the filter housing. Insert the new filter, making sure it fits snugly and the cover is securely fastened.
When replacing the cutting head, remove the old head by unscrewing the retaining nut or bolt. Attach the new head and ensure the line is correctly loaded and wound. Tighten the bolt to secure the head in place.
Troubleshooting Mechanical Issues with Your 30cc Engine Tool
If the engine won’t start, first check the fuel. Ensure there is fresh fuel in the tank and that the fuel lines are not clogged. If the fuel is old or contaminated, drain the tank and refill it with fresh fuel. Verify the spark plug is functioning and properly gapped.
If the engine starts but idles poorly, inspect the air filter. A clogged filter can cause poor airflow, affecting engine performance. Replace the filter if it appears dirty or clogged, and ensure it’s properly seated in place.
If the tool vibrates excessively during operation, check the cutting head. Make sure it is securely attached and not damaged. An unbalanced or worn cutting head can cause vibrations. If necessary, replace the head or ensure the line is evenly wound.
If the motor stalls or loses power under load, clean or replace the carburetor. A clogged carburetor can restrict fuel flow, leading to engine stalling. You can try cleaning the carburetor with carb cleaner, but a replacement may be necessary if the issue persists.
