Connect the yellow lead to constant 12V from the vehicle fuse box and attach the red lead to the ignition accessory line. This configuration allows the head unit to keep memory settings while powering on only when the key is turned. The black lead should be secured to a clean metal chassis point to create a stable ground path.
Speaker connections follow a paired conductor system where each channel uses two wires: positive and negative. Typical aftermarket harness layouts include white pair for front left, gray pair for front right, green pair for rear left, and purple pair for rear right. The wire with a stripe normally marks the negative terminal of each speaker channel.
A blue lead usually controls the power antenna or external amplifier trigger. When the head unit powers on, this line outputs about 12 volts, switching the amplifier or antenna motor. Some models also include a blue wire with a white stripe used strictly as a remote amplifier activation signal.
Additional connections may include an orange wire for dash illumination, which adjusts display brightness with the vehicle lighting system. A pink lead sometimes connects to the vehicle speed signal for navigation-based units. Verify each conductor with a multimeter before installation, checking constant power, switched power, and chassis ground to prevent short circuits or audio channel failure.

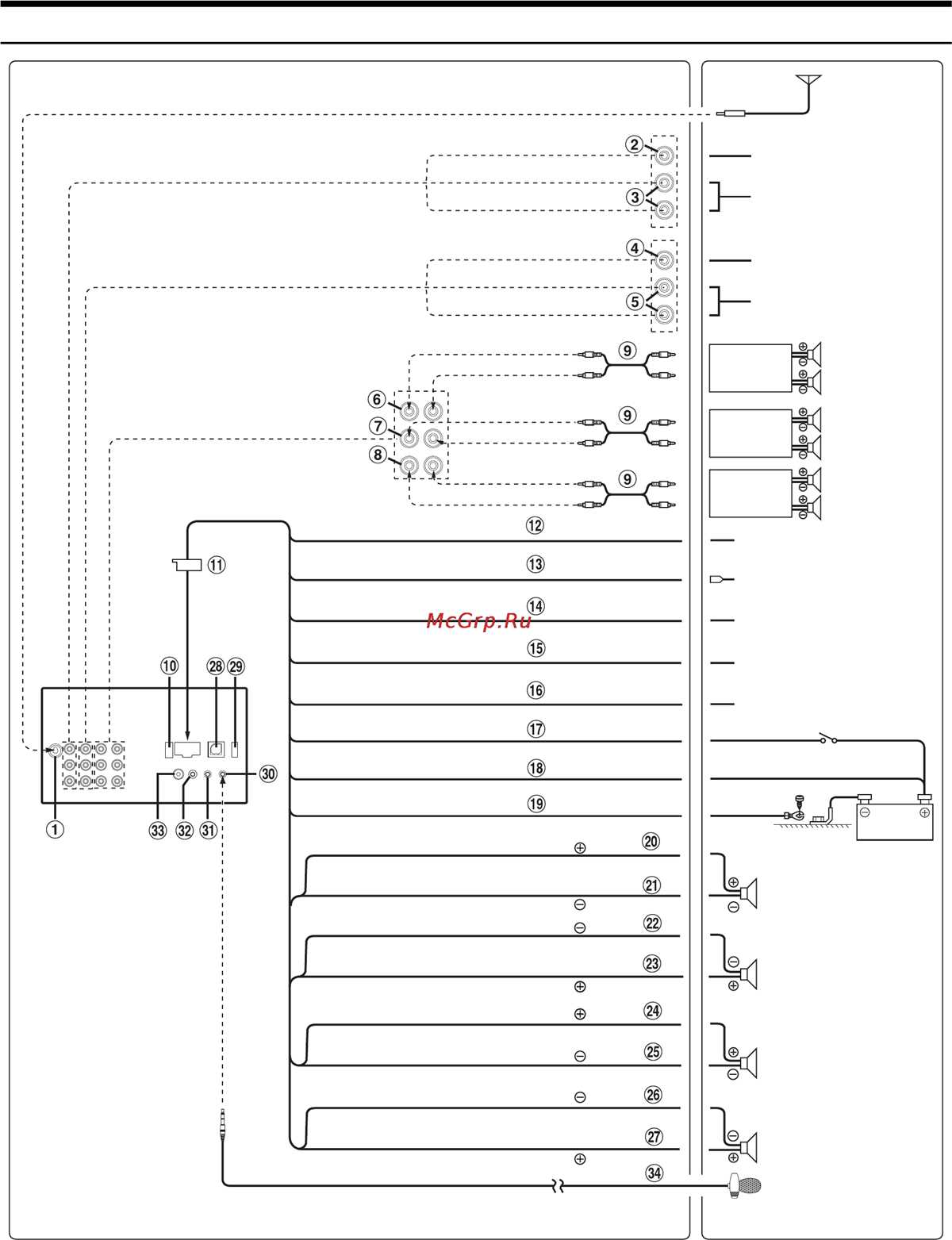

Alpine Stereo Wiring Color Code Diagram with Power Speaker and Remote Wire Guide

Connect the yellow lead directly to a constant 12-volt source from the vehicle fuse panel and attach the red lead to the accessory ignition line. This setup keeps memory data such as radio presets while allowing the head unit to power only when the key is in ACC or ON position. The black conductor must be secured to bare chassis metal using a ring terminal and bolt to prevent noise or voltage drops.
Speaker Channel Lead Identification
Each audio channel uses a pair of conductors where the solid wire carries positive polarity and the striped version carries negative polarity. Typical harness mapping includes white pair for front left, gray pair for front right, green pair for rear left, and purple pair for rear right. Maintain correct polarity when attaching to speaker terminals; reversed polarity causes phase cancellation that weakens bass response and stereo imaging.
Remote Amplifier and Accessory Connections
A blue conductor usually activates a power antenna or external amplifier by supplying about 12 V trigger output when the head unit turns on. Some harnesses include a blue wire with a white stripe dedicated to amplifier remote input. An orange illumination lead may also appear; it connects to the vehicle lighting circuit so the display brightness changes with dashboard lighting. Verify each conductor using a multimeter before installation by checking constant voltage, switched voltage, and chassis ground.
Alpine Stereo Power Ground and Ignition Wire Color Codes Explained
Connect the yellow conductor to a constant 12-volt supply from the vehicle fuse panel. This line maintains memory data such as radio presets and clock settings. The red conductor links to the accessory ignition line that receives voltage only when the key is in ACC or ON position. Use a fuse rated between 10 A and 15 A on the constant supply to protect the head unit electronics.
Ground connection must attach directly to vehicle chassis metal with low resistance. Use a ring terminal and bolt it to a sanded metal surface to avoid paint insulation. Typical ground lead identification and connection details include:
- Black conductor connected to chassis ground point
- Metal contact surface cleaned to bare steel
- Short cable length under 30 cm to reduce resistance
- Resistance between ground point and vehicle negative terminal below 0.2 Ω
Accessory and control conductors manage external devices and power behavior. Common leads found in the harness include:
- Blue lead for power antenna activation
- Blue with white stripe used as amplifier remote trigger
- Orange lead connected to dashboard illumination line
- Yellow lead constant 12 V supply
- Red lead switched accessory voltage
