Connect the main power line directly to the black conductor and ensure the neutral wire links to the white lead. Incorrect placement can trip circuit breakers or prevent motor operation.
Ground the metallic frame using a dedicated green or bare wire to avoid shocks during operation. Verify continuity with a multimeter before securing the unit to the ceiling.
Use color-coded leads for speed control and lighting circuits: blue or red for high-speed selection, yellow for medium, and green for low-speed circuits. Maintaining consistent labeling reduces errors during future maintenance.
Route all conductors along junction boxes or ceiling joists, keeping at least a 2-inch gap from heat sources or sharp edges. Use insulated clamps to prevent abrasion over time.
Test each function individually before final assembly. Switch on illumination, adjust speed settings, and engage reverse mode if available. Measure voltage at each terminal to ensure proper load handling.
Inspect terminals for corrosion or loose screws. Apply a thin layer of dielectric grease on contacts to prevent oxidation and maintain low-resistance connections. Loose connections can cause flickering lights or motor stalling.
Document the configuration by marking each lead with its function and installation date. This simplifies troubleshooting and ensures consistent performance across replacements or upgrades.
Electrical Connections for Household Air Circulation Units

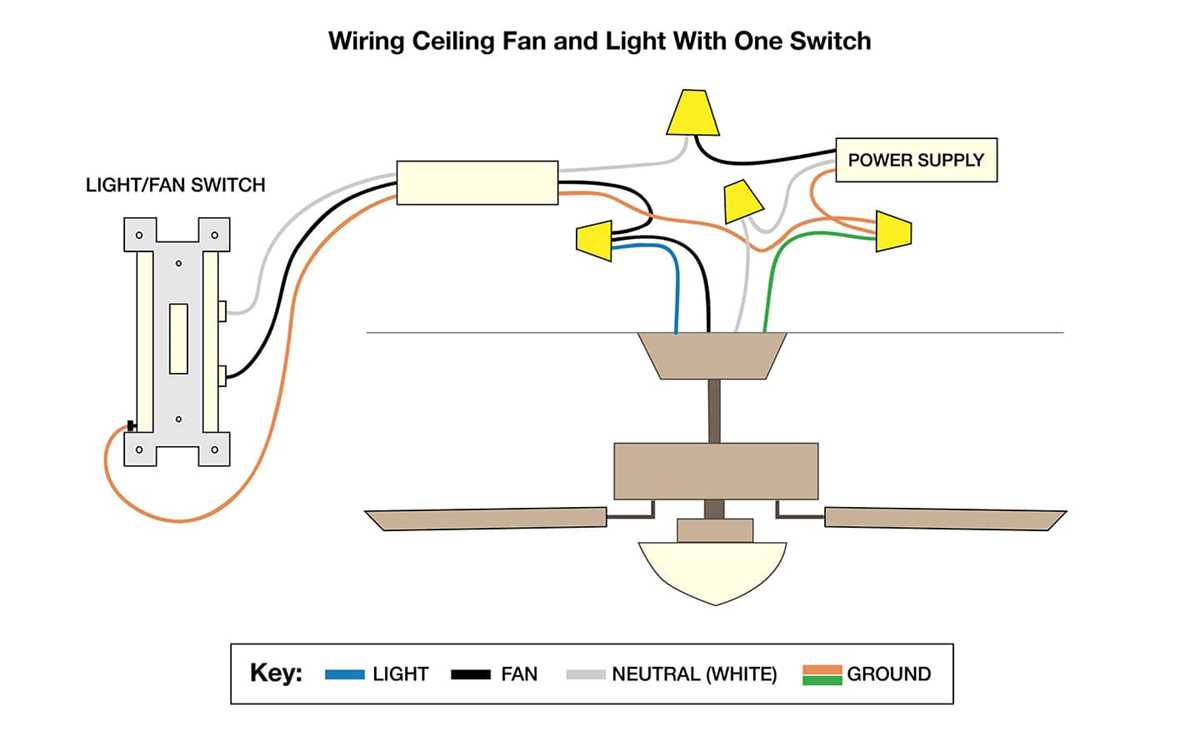

Identify each conductor before joining terminals: Black or red leads carry live current, white is neutral, green or bare is ground, and blue controls integrated lighting. Mixing these can cause shorts or motor failure.
Follow these steps for proper setup:
- Turn off the main circuit breaker.
- Connect the live wire to the main input terminal.
- Attach neutral to the corresponding slot ensuring tight contact.
- Secure the ground wire to the frame using a star washer.
- Link speed control and lighting leads to designated terminals according to color code.
After assembly, test each function individually. Switch on lights, cycle through speed settings, and verify reverse operation if available. Measure voltage at terminals under load to confirm stable connections. Any irregular readings indicate loose contacts or insulation issues that need correction before final installation.
Identifying Each Wire and Its Function in Household Air Circulation Units
Label each conductor according to its role: Black or red lines carry live current for motor operation, white serves as neutral, green or bare provides grounding, and blue handles integrated lighting circuits. Mixing connections can trigger short circuits or prevent the motor from starting.
Testing and Verification
Use a multimeter to confirm continuity before final assembly. Measure voltage between live and neutral, then check resistance to ground. Ensure terminals are tight and free of corrosion. Activate lights and speed settings individually to verify function. Any fluctuations in voltage indicate loose contacts or damaged insulation that must be corrected immediately.
