Ensure proper signal integrity by arranging conductors according to the recognized T568B standard. Align each pair by twist rate to reduce crosstalk and maintain optimal transmission speed up to 1 Gbps.
Trim insulation precisely and expose only the necessary conductor length for insertion into modular plugs. Misalignment or excess exposure can result in intermittent connections or reduced throughput.
Follow a consistent color sequence for all connections across endpoints. This practice prevents miscommunication between devices and simplifies troubleshooting in complex installations.
Use a quality crimping tool to secure contacts firmly without damaging strands. Loose connections lead to increased resistance and potential packet loss, which can disrupt network performance.
Label each terminated line clearly at both ends. Accurate identification aids in maintenance, prevents accidental swaps, and ensures rapid deployment in structured setups.
Pinout Configuration and Connector Setup for High-Speed Network Lines
Arrange conductor pairs following the T568B sequence for consistent performance across devices. Align each pair by twist to minimize signal interference and maintain reliable gigabit transmission.
Trim jacket and separate individual strands carefully before insertion. Exposing excessive lengths can cause shorts, while too little exposure prevents proper contact with connector pins.
Insert each strand fully into the designated slot of the modular plug. Ensure no wire crosses another and that each reaches the front of the contact slot for secure termination.
Apply a calibrated crimping tool to lock contacts firmly without crushing the conductors. Inadequate crimping increases resistance, leading to packet loss or intermittent connectivity issues.
Verify continuity of all eight conductors using a tester before deploying lines. Confirming each pin corresponds to its intended position prevents miscommunication between switches, routers, or patch panels.
Label each completed connection at both endpoints. Proper identification accelerates maintenance, avoids accidental swaps, and supports organized network infrastructure management.
Standard Color Codes for Termination and Connectivity

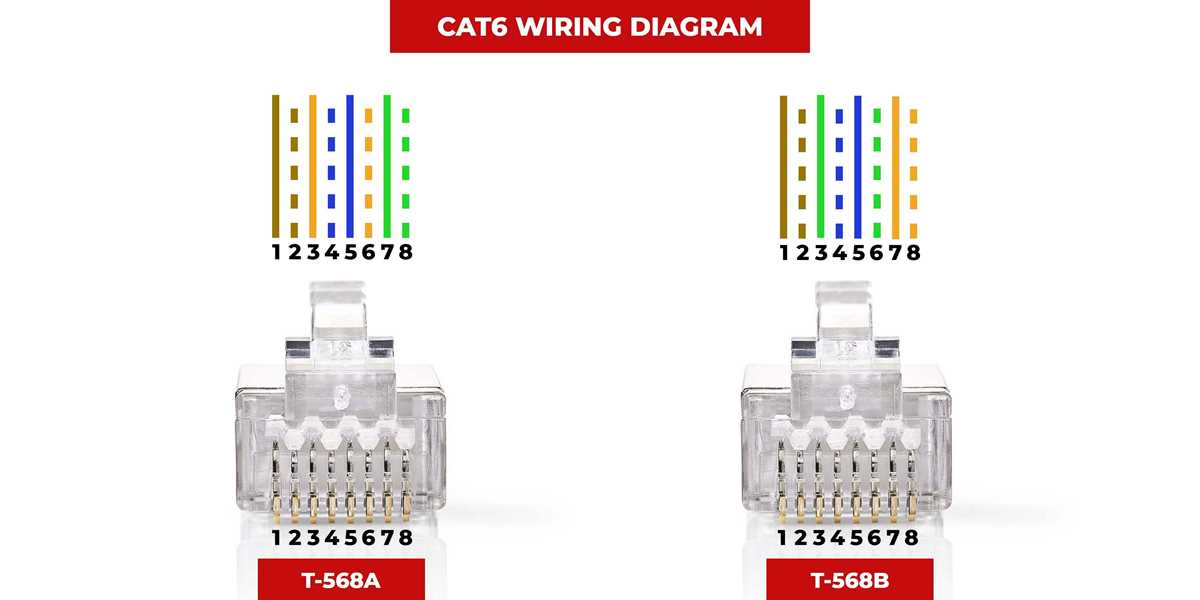

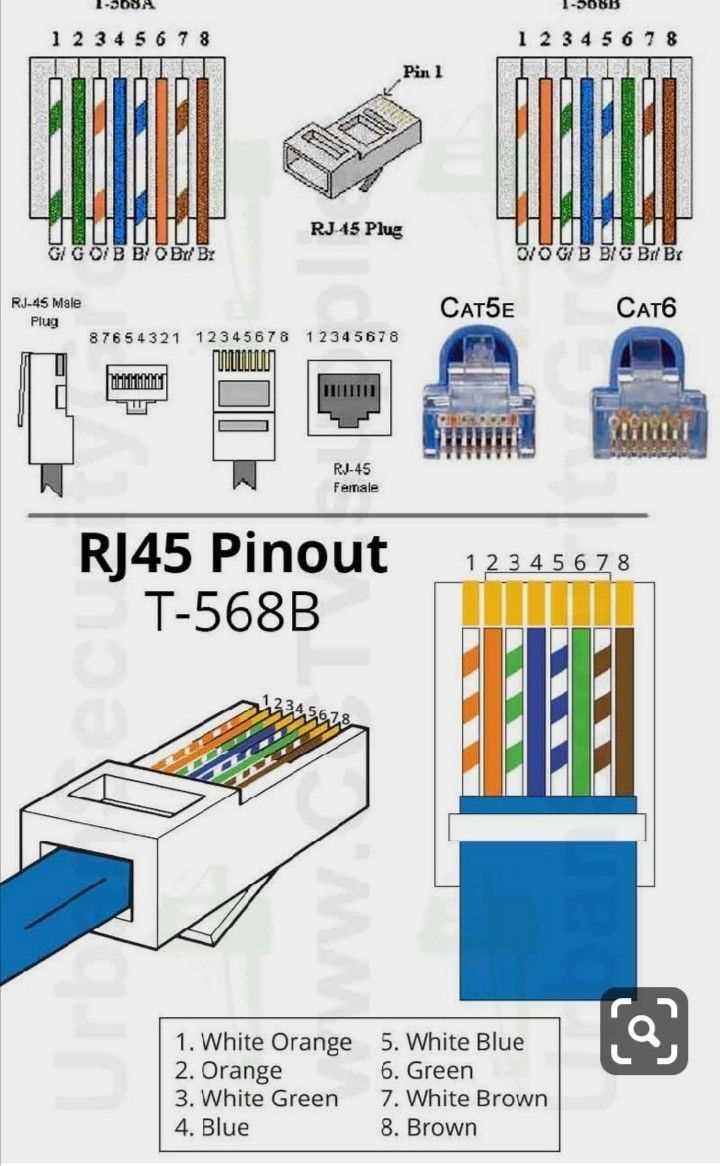

Follow T568B color coding for consistent network terminations. Arrange twisted pairs in the sequence: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown to maintain signal integrity across connections.
Use T568A color coding only when connecting to legacy systems requiring backward compatibility. Its sequence is: white-green, green, white-orange, blue, white-blue, orange, white-brown, brown.
Keep each conductor untwisted for no more than 0.5 inch at the termination point. Excess untwisting increases crosstalk and reduces performance, especially at gigabit speeds.
Verify color alignment visually before crimping. Misplaced strands can cause connectivity failures or intermittent network issues that are difficult to diagnose.
Maintain pair integrity to reduce electromagnetic interference. Each twisted pair must remain together until fully inserted into the plug to preserve differential signaling benefits.

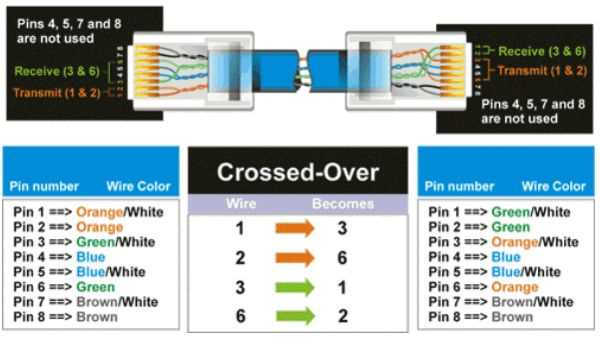

- White-Orange / Orange – transmit pair
- White-Green / Green – receive pair
- White-Blue / Blue – auxiliary or PoE pair
- White-Brown / Brown – auxiliary or PoE pair
Label both ends after termination using color codes and numbered identifiers. This practice simplifies troubleshooting and avoids mispatching in larger installations.
Check continuity and pairing with a network tester. Confirm each conductor matches its counterpart at the opposite end to prevent speed degradation and packet loss in high-bandwidth environments.
