Use a 568B configuration to align all twisted pairs accurately for voice and low-speed data transmission. Ensure each conductor is trimmed to precise length to prevent interference and maintain consistent impedance across the run.
Label both ends of each strand immediately after termination to avoid misconnection. Maintain the recommended separation from power lines to reduce crosstalk and signal degradation over longer runs.
Insert connectors with a controlled punch-down tool to guarantee full contact with the insulation displacement terminals. Verify continuity with a tone generator or network tester before deploying in active installations.
For wall-mounted jacks, secure mounting plates to minimize movement that could stress connections. Follow a straight path for all pairs within conduits to limit bends sharper than a 90-degree angle, preserving signal integrity and avoiding mechanical damage.
Cat 3 Connection Setup and Layout Guide
Terminate each pair according to the 568B standard to ensure consistent signal transmission across all ports. Use a punch-down tool with controlled pressure to avoid damaging conductors while securing them in insulation displacement terminals. Maintain a minimum separation of 6 inches from power lines to reduce interference and prevent crosstalk between circuits.
Organize runs in straight paths and avoid tight bends sharper than 90 degrees. Label both ends of each strand before installation to simplify troubleshooting and network expansion. Verify continuity and pair integrity with a tone tester or network analyzer before energizing the system, and mount outlets securely to prevent movement that could stress connections.
Determining Correct Pin Assignments for Cat 3 Connections

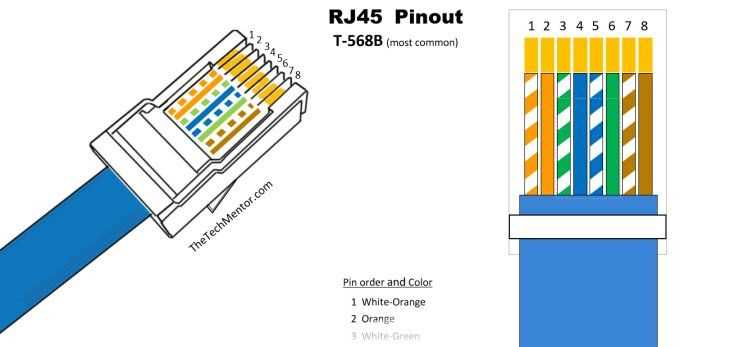

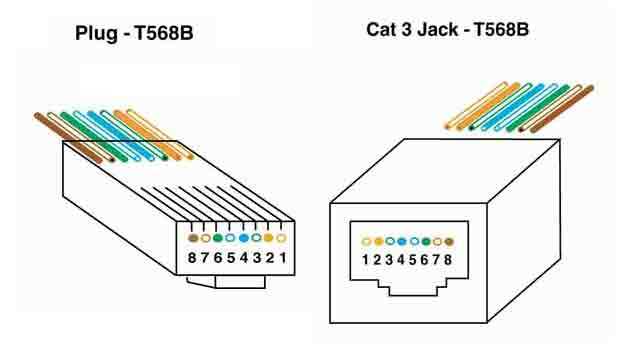

Assign pins according to the 568B standard for uniformity: pair one on pins 1 and 2, pair two on pins 3 and 6, pair three on pins 4 and 5, and pair four on pins 7 and 8. This configuration ensures proper signal flow and reduces the chance of crosstalk in low-speed data lines.
Always verify the sequence using a continuity tester before terminating the ends. Incorrect pin alignment can cause intermittent connectivity issues that are difficult to diagnose after installation. Keep pairs twisted up to the point of termination to preserve the integrity of the signal.
For voice-only applications, only the first two pairs are typically used, leaving pairs three and four unused. Label unused pairs clearly to avoid confusion if future upgrades require full pin utilization. Separate the active pairs from the inactive ones in junction points to minimize electrical interference.
When connecting to punch-down blocks, ensure that each conductor is fully seated into the slot and trimmed flush with the block surface. Partial insertion or loose ends may lead to degraded voice quality or data errors. Check that insulation is removed only where necessary to avoid short circuits.
Maintain consistent pin assignments across all terminations in a network run. Mismatched ends between patch panels and outlets will prevent proper communication and may require complete re-termination. Cross-reference each endpoint against a pinout sheet before finalizing the setup.

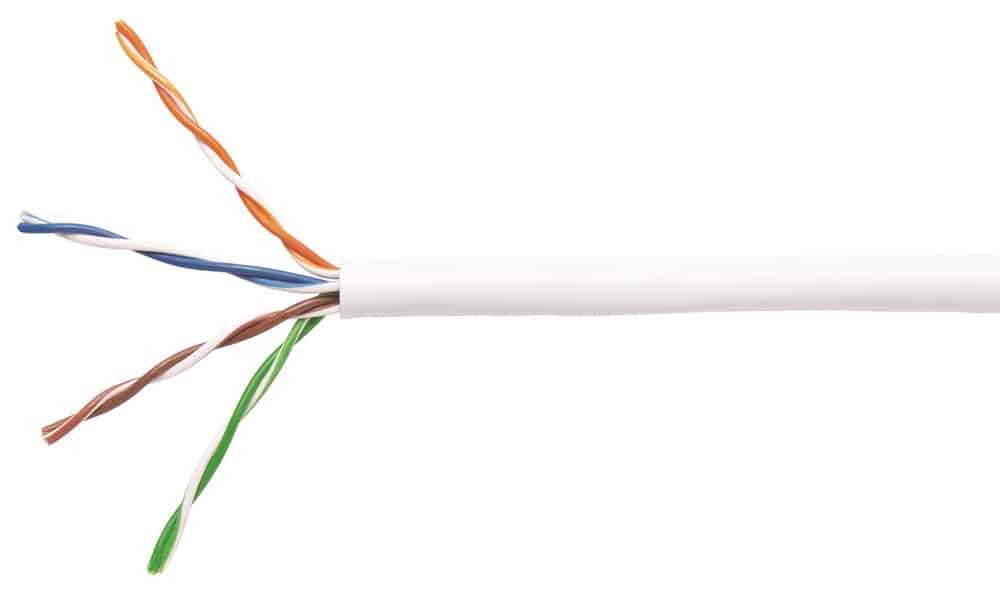

Use color codes to distinguish each pair: orange, green, blue, and brown. Consistent color-coding reduces errors when troubleshooting or adding extensions. Store a reference chart near the installation area to assist technicians in following the correct sequence without misinterpretation.
Test the completed installation using a network tester capable of reporting pair continuity, short circuits, and crossed lines. Document test results for future maintenance and to ensure that all connections adhere to specifications. Repeat tests after adding any new connections to verify that existing assignments remain correct.
When dealing with long runs, check for attenuation and signal degradation. Exceeding recommended distances for 3-conductor runs can impact both voice clarity and low-speed data performance. Plan for repeaters or additional termination points if distances approach the 100-meter limit for standard installations.
