To ensure a smooth and safe towing experience, proper installation of a braking system is a must. Begin by identifying the necessary connections and understanding the role of each wire that links the system to your vehicle. The correct setup guarantees reliable performance under various driving conditions.
Start by checking the power supply lines that connect the control unit to the vehicle’s electrical system. Be sure to securely connect the wires to avoid loose contacts, which may result in intermittent functioning or failure. Also, ensure that all connections to the towing vehicle are routed safely to prevent accidental damage.
For optimal results, verify that the correct grounding is achieved between the control mechanism and the towing system. This step is crucial as a poor ground connection can cause malfunctioning of the system and may even lead to electrical hazards.

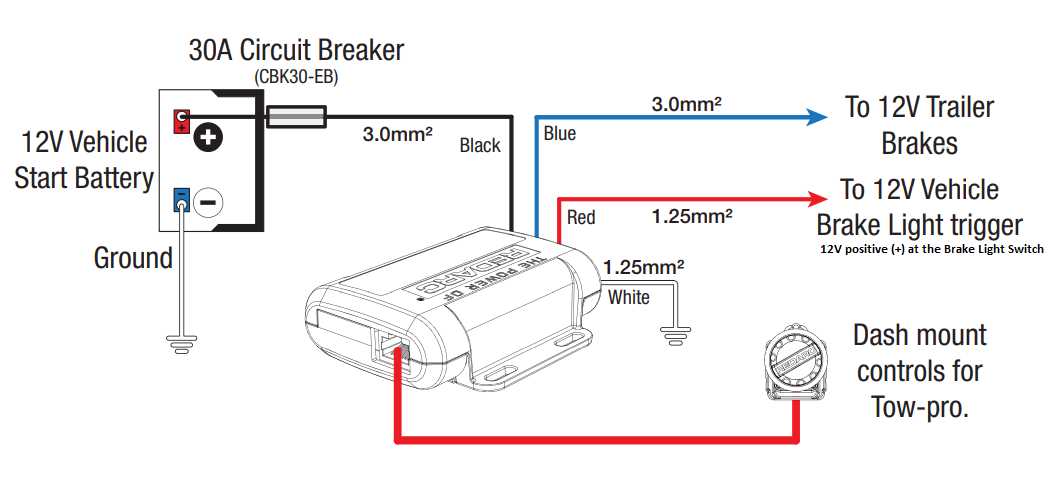

Brake Controller Wiring Diagram
Ensure the vehicle’s electrical system is properly set up before connecting any components. A reliable power source is needed to activate the braking mechanism. The power lines should be securely connected to the vehicle’s electrical terminals for uninterrupted performance.
One of the key connections to verify is the ground. The ground wire must be attached to the vehicle’s frame, ensuring a strong and steady connection. A poor ground connection can result in malfunctioning or unstable braking performance.
Next, check the connections between the power source and the activation unit. These wires should be insulated and routed safely to avoid exposure to heat or friction, which can cause shorts or damage to the system. Proper insulation also prevents any interference with other electrical components.
The input wire from the towing vehicle must also be securely attached to the vehicle’s power system. This wire activates the braking mechanism when pressure is applied to the towing vehicle’s brake pedal. Ensure the connection is strong to allow the system to work efficiently during towing.
Testing the System
Once all the wiring connections are in place, test the setup. Ensure that the brake system is activated when pressure is applied to the towing vehicle’s brakes. If the braking mechanism fails to activate, check for any loose or damaged connections that might cause a break in the circuit.
If the system doesn’t function properly, inspect each individual connection for signs of wear or corrosion. A simple multimeter can help detect voltage drops or faulty connections. Focus on areas where wires may rub against surfaces, as these spots are more prone to damage.
Safety Precautions
Always wear protective gear when handling electrical components. Disconnect the vehicle’s battery before making any connections to avoid electrical shock or short circuits. Additionally, ensure that the system is de-energized during testing to prevent any unintentional sparks or overheating.
Finally, if you are unsure about any connections or the functioning of the braking system, it is advisable to seek assistance from an expert. A small mistake in the setup could compromise both safety and functionality, so it’s better to double-check all components before using the system on the road.
Step-by-Step Guide to Installing a Brake Controller
Start by choosing an appropriate location for the activation unit. This is usually on the dashboard or center console where it’s easily accessible. Ensure the area is clear of any obstructions and provides ample space for mounting the unit securely.
Next, prepare the power source connection. Locate the vehicle’s power terminal and attach the power line to it. Make sure the connection is tight and well-insulated to avoid any power loss or risk of sparks. It’s also crucial to confirm that the power is disconnected during installation to prevent electrical hazards.
Once the power source is connected, focus on the ground wire. This must be attached to a clean, metal part of the vehicle’s frame. A secure ground is necessary for the system to function correctly. Check the ground wire regularly for corrosion or wear.
Connect the input wire from the towing vehicle. This is a crucial connection as it activates the braking system. The wire should be routed away from moving parts and heat sources. Use protective covers to prevent friction or exposure to sharp edges that could cause wear on the wire.
Install the activation unit and connect all corresponding terminals. Refer to the manual or technical specifications to ensure each wire is connected to the correct terminal. Double-check each connection to make sure the wires are not loose, as this could cause malfunctions.
After all connections are made, it’s time to mount the unit in its final position. Use screws or brackets to ensure the unit is securely fixed and will not move during vehicle operation. The location should be easily accessible but not obstructive to the driver’s view or comfort.
Test the system before driving. With the vehicle running, check for any signs of malfunction, such as lights not activating or the system failing to respond. Use a multimeter to test voltage across key components to ensure everything is working properly.
Finally, once the system is confirmed to be operating correctly, secure all loose wires and protect them with insulation or zip ties to prevent movement or contact with hot surfaces. Regularly inspect the system for wear or loose connections to ensure ongoing safety and performance.
