Start by identifying the main power lead and the ground connection on the unit. Incorrect connections can cause short circuits or prevent the system from powering on. Use a multimeter to verify voltage levels before making any permanent links.
Label each speaker lead with colored tape or tags to avoid confusion during installation. Matching the left and right channels correctly ensures balanced audio output and prevents distortion or phase cancellation.
Connect the remote turn-on wire to the accessory power source to enable automatic activation with the ignition. Failing to secure this lead can result in the system not turning on or unexpected battery drain.
After all leads are secured, perform a test run at low volume to verify proper signal routing. Check each speaker and adjust connections if any channel is inactive or reversed to maintain consistent sound quality.
Finally, tighten all terminal screws to manufacturer torque specifications and cover exposed contacts with insulated sleeves. This reduces the risk of shorts and extends the lifespan of the electronics.
Connecting Car Audio Power and Speakers
Begin by locating the main power input and grounding lead on the head unit. Incorrect attachment can prevent the system from powering on or cause a short circuit. Use a multimeter to confirm voltage at the input before securing connections.
Label each speaker conductor with tags or colored tape to ensure proper channel alignment. Connecting left and right channels correctly prevents phase issues and preserves sound clarity.
Attach the remote activation wire to a switched accessory power source. This allows the system to power on automatically with the ignition and avoids unnecessary battery drain when the vehicle is off.
After all connections are made, perform a low-volume test to verify that each speaker receives the proper signal. Check for reversed polarity or inactive channels and adjust leads as needed to maintain balanced audio output.
Secure all terminal screws to the manufacturer’s recommended torque and cover exposed points with insulated sleeves. This prevents shorts and prolongs the lifespan of the electronic components, ensuring reliable operation under daily use.
Identifying Power and Ground Connections
Locate the main positive lead and the chassis grounding point on the unit. Incorrect attachment can prevent the system from powering on or create a short circuit. Confirm voltage at the input using a multimeter before securing connections.

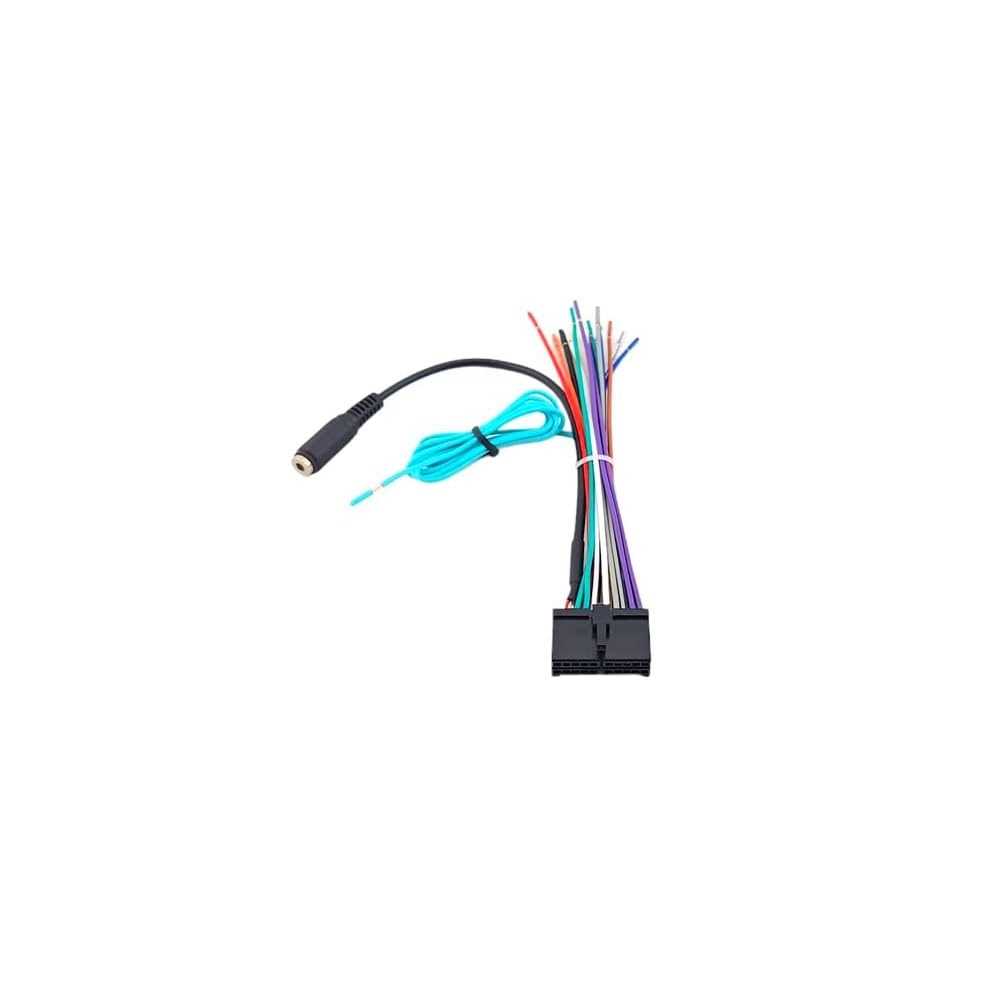

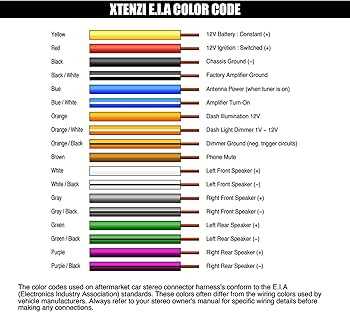

Inspect the connectors for manufacturer markings or color codes. Red typically indicates constant or switched power while black identifies the ground. Matching these correctly ensures safe and stable operation.
Use a test light to verify that the power lead is active with the ignition in the accessory position. This prevents accidental battery drain and allows the system to activate only when the vehicle is running.
Check continuity between the ground lead and the vehicle chassis. A poor ground can cause distortion, intermittent power loss, or operational errors. Sand or clean the contact point if corrosion or paint obstructs a solid connection.
Once verified, secure all terminals with the recommended torque and cover exposed contacts with insulating sleeves. Proper attachment prevents shorts and maintains reliable performance under vibration and temperature changes.
