If you’re experiencing issues with your tool, the first step is to locate the faulty component. Using a reference guide can help you identify each part’s function and its proper placement within the assembly. Check the power switch, the motor housing, and the carbon brushes–these are the most common parts that may need replacement due to wear.

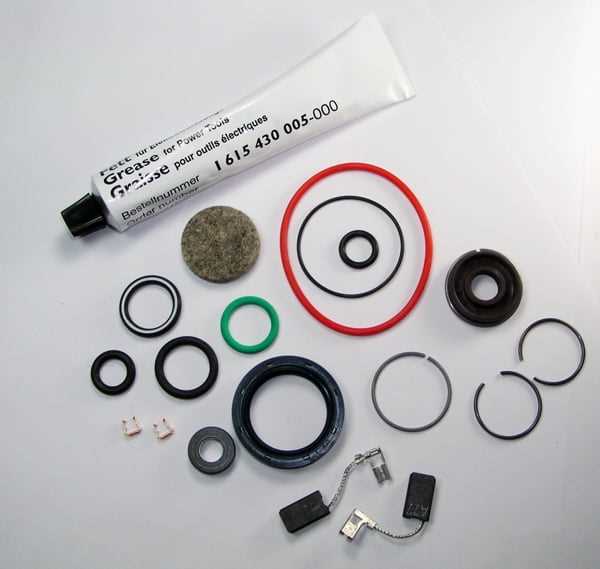

Start by consulting the detailed visual guide for accurate part numbers and positions. This step will save time during troubleshooting and ensure you purchase the correct replacements. Pay particular attention to the seals and gaskets, as leaks or inefficient operation are often linked to these components.
Once you’ve identified the malfunctioning part, remove it carefully to avoid damaging surrounding areas. Depending on your model, tools such as screwdrivers, wrenches, and pliers may be necessary to access the internal components. Always follow the manufacturer’s instructions for disassembly and reassembly to avoid further damage.
Understanding the Key Components and Their Functionality
For troubleshooting or replacement tasks, identifying each component in the tool is critical. Begin by reviewing the reference image to locate all key sections such as the motor housing, switch, and trigger mechanism. Pay attention to how the assembly is structured to ensure that the components are correctly aligned when reassembled.
Look at the power source connections. If your tool fails to start, the issue could stem from the power switch or wiring connections. Make sure all connections are secure, and check for wear on the wires or contacts. In cases where the tool operates intermittently, it may indicate a loose connection or worn-out internal components.
Next, inspect moving parts like gears and brushes. Over time, these can wear down, leading to inefficient operation. Replacing these parts with the exact match from the diagram will restore functionality. Regular maintenance, such as cleaning and lubrication of moving elements, can extend the lifespan of these parts and improve overall performance.
How to Identify Key Components in the Tool
Begin by focusing on the external housing and its primary sections. The motor housing is a key area to examine, as it houses essential components like the motor and cooling system. Check for any visible cracks or damage to ensure the internal parts are well-protected.
Inspect the trigger and switch mechanism next. These parts control the activation of the tool, and wear or malfunctioning can lead to intermittent power issues. Verify the condition of the trigger’s spring and the switch’s connection to the motor.
Examine the gear assembly and brush holder. These internal components manage rotational power and are subject to wear after extensive use. Ensure the gears are properly aligned, and check for any grinding noises or excess vibration that may indicate worn-out gears or brushes.
Finally, assess the power cord and connections. A frayed cord or loose wiring can cause power disruptions. Secure all connections and test the tool to ensure a steady and consistent power flow. Identifying these core parts will help in diagnosing issues and ensuring smooth operation of the tool.
Steps for Properly Replacing Faulty Components
Follow these steps to ensure a safe and effective replacement process for malfunctioning components:
- Unplug the Tool: Always disconnect the tool from the power source before starting the repair to avoid electrical hazards.
- Disassemble the Housing: Use the correct screwdriver to remove screws and open the outer casing. Keep all screws in a safe place for reassembly.
- Inspect the Faulty Component: Identify the damaged part by checking for cracks, wear, or other visible signs of failure. If needed, consult the product’s manual for identification.
- Remove the Faulty Part: Carefully disconnect the faulty component. For parts like the motor or switch, note how they are connected to avoid issues during installation of the replacement.
- Install the New Part: Align the new component properly in place, ensuring all connections are secure. Double-check compatibility with the original part to avoid errors.
- Reassemble the Tool: Once the new component is installed, close the casing and tighten all screws. Ensure that the tool is fully sealed before testing.
- Test the Tool: Plug in the tool and perform a functionality test to confirm the new part works properly. Check for any unusual sounds or malfunctions.
- Dispose of Old Parts Properly: Ensure that damaged components are disposed of in accordance with local recycling regulations.
By following these steps, you can efficiently replace faulty components and restore your tool’s functionality with confidence.
Common Repair Issues and Solutions
1. Tool Not Turning On:
If the tool fails to power on, check the power cord and plug for visible damage. A faulty switch could also be the cause. Replace the switch if necessary, ensuring proper connection. If the power supply is intact, consider testing the internal fuse for continuity and replacing it if blown.
2. Unusual Noises During Operation:
Loud or unusual sounds often indicate worn-out bearings or loose internal components. Disassemble the tool and inspect the motor housing and bearings for signs of wear. If the bearings are damaged, replace them with new ones. Tighten any loose screws or parts causing vibration.
3. Overheating:
Excessive heat buildup can result from a clogged air vent or a malfunctioning motor. Ensure the cooling vents are free from debris. If overheating persists, check the motor for electrical faults or wear, and replace the motor if necessary.
4. Reduced Power or Slow Operation:
A decrease in performance can be caused by a damaged internal component, such as a motor or drive mechanism. Inspect the motor for any signs of wear or burning. Replace any malfunctioning motor parts and ensure the drive mechanism operates smoothly.
5. Intermittent Functioning:
If the tool starts and stops intermittently, check the power cord for breaks and ensure the switch works correctly. Faulty connections inside the tool can also cause this issue. Repair or replace any damaged wiring or connectors.
6. Sparks or Smoke:
Sparks or smoke during use typically signal an electrical short or worn motor brushes. Turn off the tool immediately and inspect the motor for damaged brushes or exposed wires. Replace any faulty parts and check the internal wiring for any signs of electrical damage.
Addressing these common issues promptly can extend the lifespan of your tool and keep it functioning properly. Always ensure you use compatible replacement parts and follow the correct repair procedures.
