To ensure your electronic devices stay powered during outages, you need a reliable setup that automatically switches to an alternative power source when the main supply is interrupted. Start by selecting the right power storage system that matches the voltage and current requirements of your setup. Common options include rechargeable cells or supercapacitors, which offer varying capacities depending on the needs of your application.

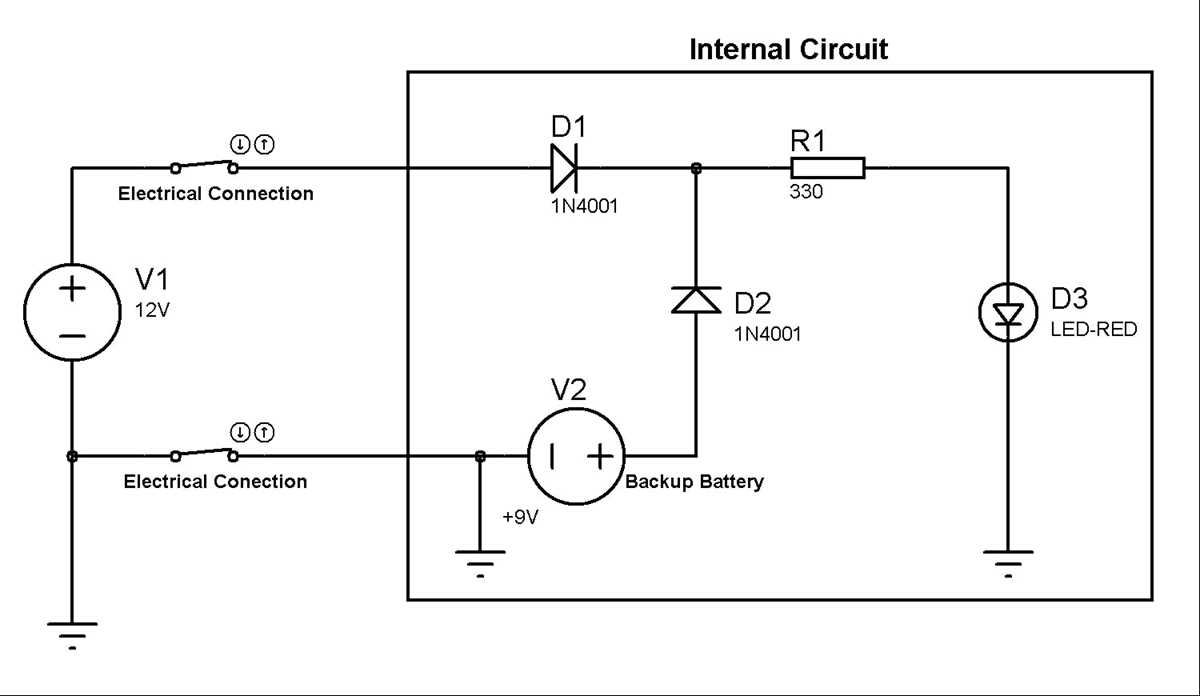

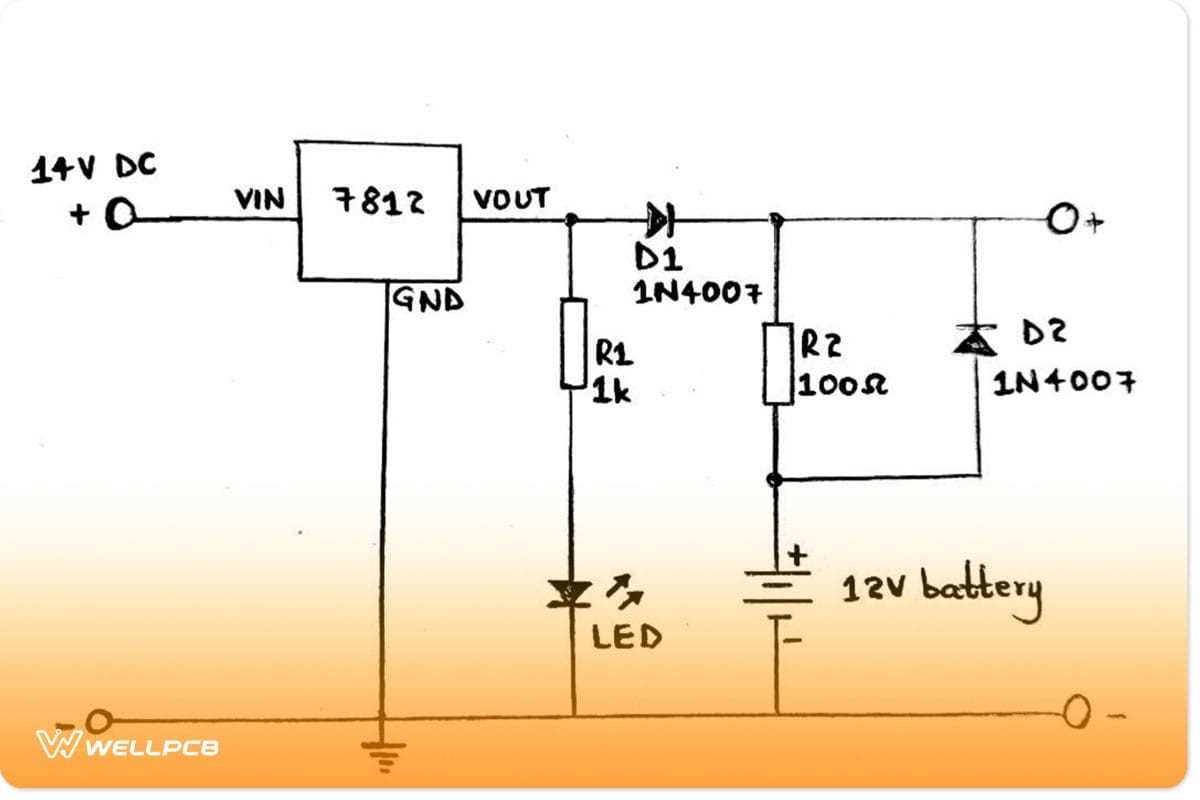

Next, establish the wiring connections. The power storage unit must be connected to the input of the primary power system and linked to the load side for automatic switching. Use a diode to prevent reverse current flow from the storage to the power supply, which could damage your equipment. Adding a charging circuit will ensure that the storage unit is recharged whenever the primary power is available.
Once your system is set up, it’s critical to test its performance under different conditions. Start by disconnecting the main power source to confirm the system switches over to the backup seamlessly. Use a multimeter to measure voltage and ensure the transition occurs without any voltage drops or instability. If the system doesn’t work as expected, check for issues with wiring, component compatibility, or the power storage unit’s charge level.
Designing a Reliable Power Supply System
To build a functional power supply system that automatically switches between primary and auxiliary sources, start by choosing a suitable energy storage solution. Select a power storage component, like a rechargeable cell or a supercapacitor, that matches the voltage requirements of your load. Connect this storage unit to the primary supply through a switch or diode to prevent any reverse current flow. The system should charge the power storage when the main supply is available, ensuring it remains ready for use when needed.
Testing and Troubleshooting the System
Once your system is assembled, perform tests to verify that the switch between the two power sources happens smoothly. Disconnect the primary supply and observe whether the system transitions to the secondary power unit without voltage drops. Check the voltage at the load to ensure the stability of the supply. If issues arise, inspect the wiring for poor connections or compatibility issues between components, ensuring each is rated for the correct current and voltage.
Choosing the Right Components for a Power Supply System
The first step in building a reliable power supply system is selecting the right energy storage component. Opt for a storage device, such as a lithium-ion cell or a supercapacitor, based on the energy requirements of your load. Lithium-ion cells offer high energy density and longer life cycles, making them ideal for most setups. Supercapacitors, while not as energy-dense, can provide faster charging and discharging times, which may be preferable for specific applications.
Next, consider the voltage ratings of all components. Choose a power storage element that can supply the necessary voltage without exceeding its rated limits. Many devices operate on 5V or 12V, so ensure your energy storage solution matches these specifications. If needed, a voltage regulator can help match the voltage of the power supply to the device’s requirements.
Selecting the Correct Switching Mechanism
The switch-over mechanism is critical to ensuring a seamless transition between power sources. Use a diode to prevent reverse current flow, which could damage the components or cause inefficiencies. Additionally, an automatic transfer switch (ATS) can detect the failure of the primary power source and immediately switch to the auxiliary power system without manual intervention.
Another consideration is the current rating of the power storage unit and switching components. Make sure the storage element can handle the peak load current that your system may require. Using components that are rated for higher currents can help avoid overheating and ensure a more durable setup. Choose components that are rated for at least 20-30% more than the maximum current your system will draw for added safety and reliability.
Incorporating a Charging System
Ensure the storage unit is connected to a charging circuit that allows for automatic recharging whenever the main supply is available. A proper charging circuit will regulate the charging process and prevent overcharging, which can damage the energy storage unit. Charging circuits typically consist of a charging controller and a current-limiting resistor to avoid excessive current during charging.
Finally, consider the overall efficiency of the components you select. While high-capacity storage elements are important, choosing components that offer low internal resistance will ensure more efficient energy transfer and less wasted power. This will improve the longevity and performance of your power supply system, making it a reliable solution for maintaining continuous operation during power interruptions.
