Connect the positive feed directly from the transmission switch to ensure the indicator activates only when the vehicle moves backward. Verify voltage levels with a multimeter before finalizing the connection to avoid overloading the filament.
Use color-coded leads to differentiate between power, ground, and control feeds. Secure all splices with insulated terminals to prevent shorts caused by vibration or moisture.
Confirm continuity between the actuator and the illumination point before mounting. Test each terminal individually to identify potential weak spots or corrosion that could compromise visibility during operation.
Implement a separate ground strap from the chassis to the fixture body for stable current return. Do not rely solely on shared grounding points to avoid flickering or delayed response.

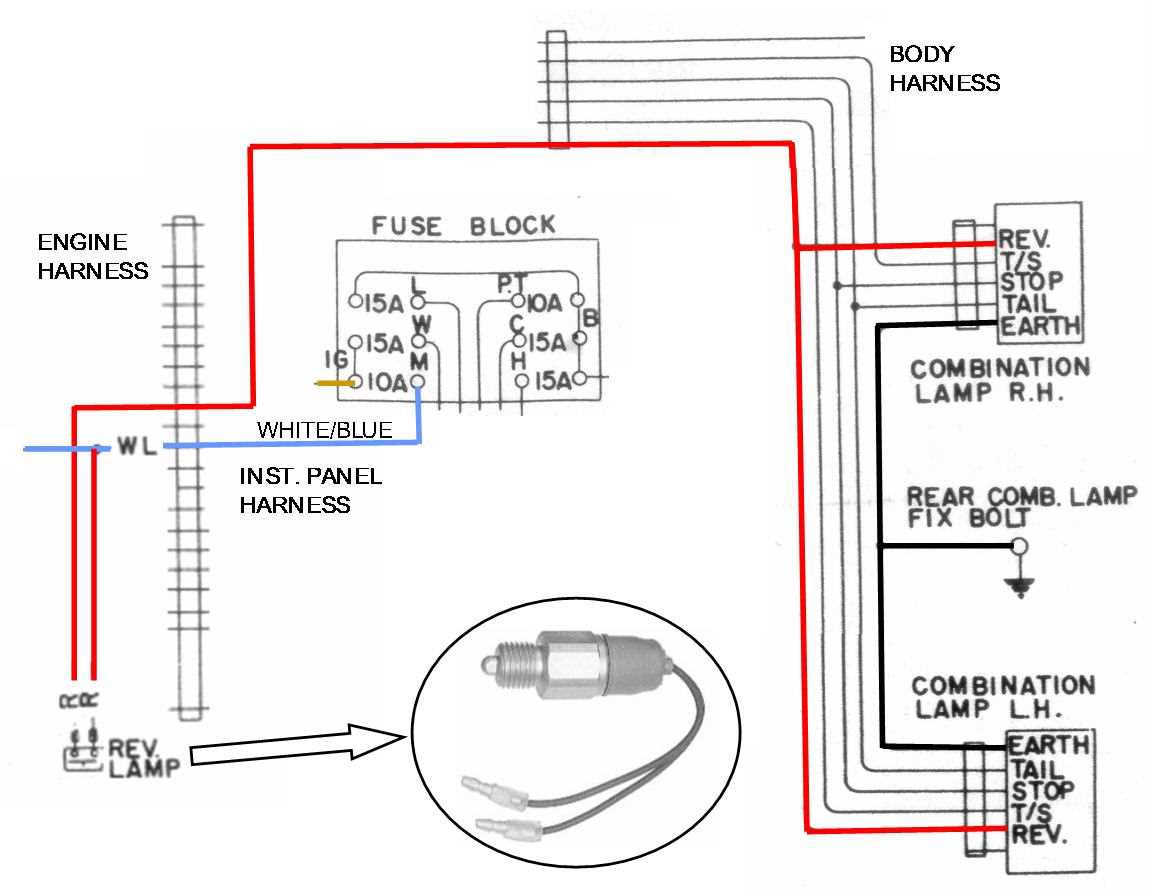

Basic Reverse Light Connection Guide for Vehicles
Connect the positive feed directly from the gear selector switch to the rear indicator to ensure activation only during backward motion. Verify voltage output at the switch using a multimeter to prevent overloading the filament and ensure consistent illumination.
Use insulated terminals for all splices and maintain a dedicated chassis ground to the housing to avoid flickering or intermittent operation. Color-code each lead to separate power, control, and return paths for easier troubleshooting and secure installation.
Locating Main Power Lines and Ground Points
Identify the primary feed running from the battery to the fuse block. Mark the positive conductor with tape for clear distinction and measure the voltage under load to confirm continuity and prevent overheating during activation.
Trace the secondary branches supplying the rear assembly. Use a test light to verify current flow at each connector, ensuring no corrosion or loose contacts that could disrupt illumination.
Locate the vehicle’s main grounding points near the chassis. Ensure the metal surface is clean and free from paint or rust to maintain stable return paths and prevent intermittent operation.
Inspect factory harnesses for inline connectors. Separate control leads from main feeds to avoid interference and reduce voltage drops across the system.
Confirm ground continuity by using a multimeter between the negative terminal and each chassis connection. Resistance should remain below 0.5 ohms to guarantee consistent performance.
Label all junctions connecting primary feeds to auxiliary components. Apply dielectric grease at each junction to prevent oxidation and maintain reliable conductivity over time.
Route high-current lines along protected pathways, away from moving parts or heat sources. Secure cables with clamps to prevent abrasion and accidental disconnection during vehicle operation.
Test the complete assembly by engaging the gear selector while monitoring voltage at both feed and return paths. Adjust connections if any voltage drops exceed 0.2 volts to ensure immediate and full illumination when activated.
