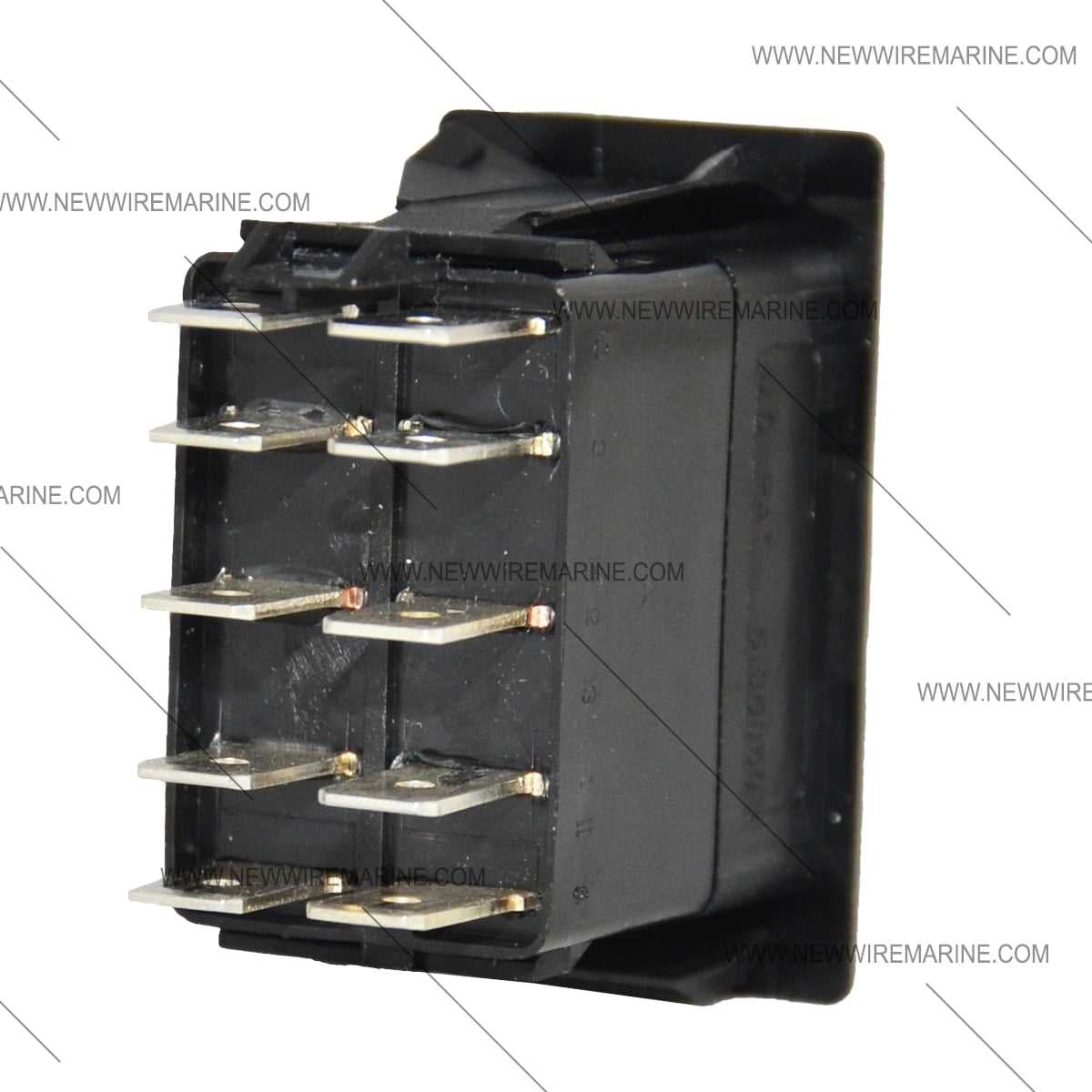

Connect the 12V supply line to the common input terminal of the eight-terminal control device, then route the output terminal toward the accessory load such as auxiliary lights, a cooling fan, or a compressor relay. This arrangement allows the internal contact set to open or close the power path.
The eight-terminal design normally includes two contacts for the main power path, two for ground, and several for internal indicator lamps. Many automotive versions operate on 12V DC, though marine installations sometimes use 24V DC. Matching the supply voltage to the indicator module prevents LED failure.
The load conductor attaches to the output contact located opposite the supply terminal. When the actuator is pressed, the internal metal bridge closes the electrical path and sends current to the accessory device. Current capacity commonly ranges from 15A to 30A depending on model and contact material.
Indicator lighting often uses two dedicated terminals. One terminal connects to ground while the other receives power through the load side or directly from the supply line. This arrangement allows the internal LED to illuminate only when the controlled device is active.
Label each terminal before installation and verify the power path using a multimeter continuity test. Misplaced conductors may leave the indicator glowing constantly or prevent the accessory device from receiving power.

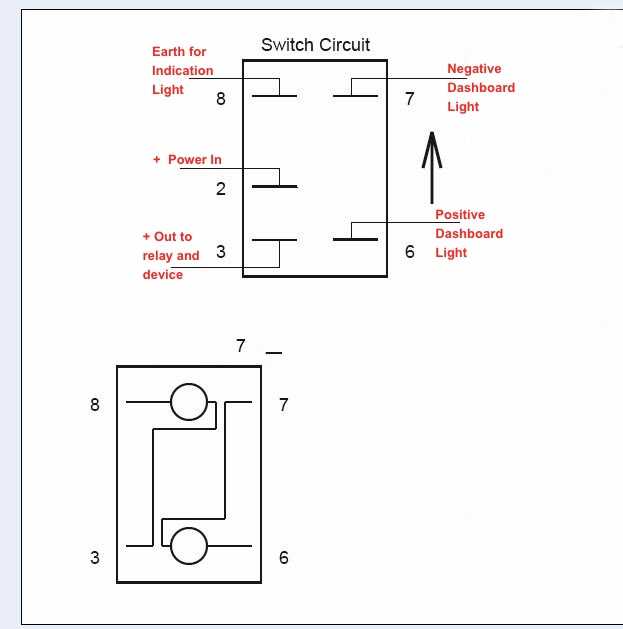

8 Pin Rocker Switch Wiring Diagram With Power Load Ground and LED Pin Layout
Attach the 12V supply conductor to the common input terminal of the eight-terminal control unit, then connect the opposite contact to the accessory device such as auxiliary lighting, a pump relay, or cooling fan module. This layout directs current through the internal contact bridge when the actuator is pressed.
Power and load path

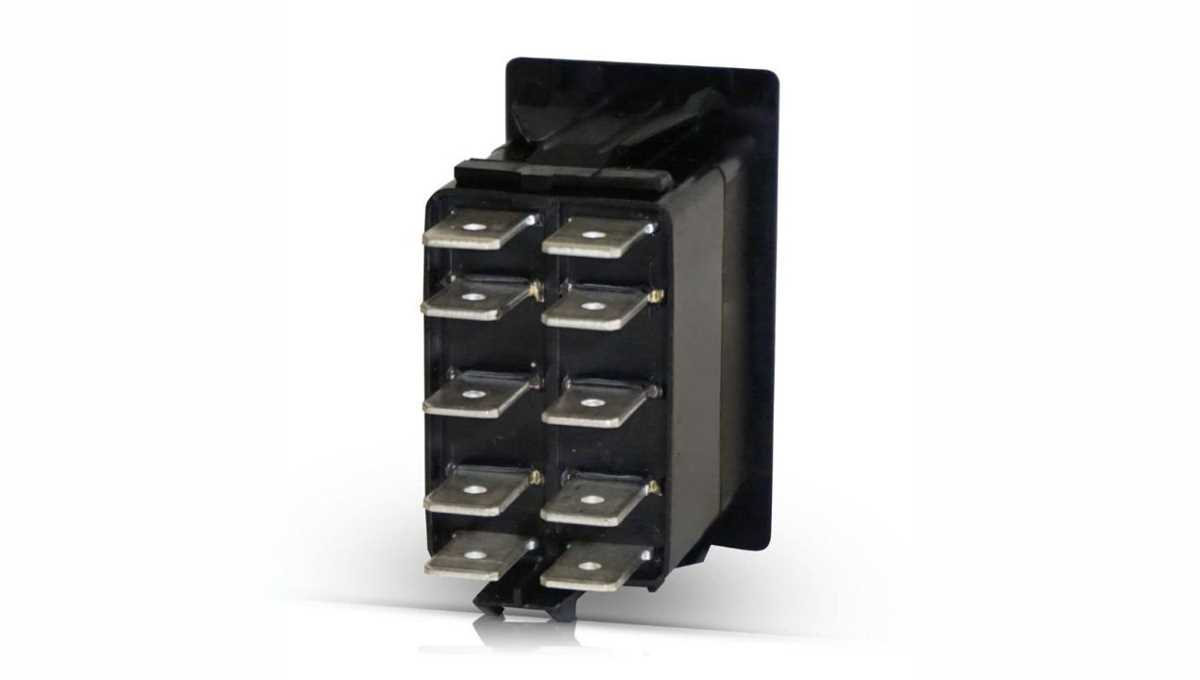

The main electrical path usually uses two terminals positioned across from each other on the rear connector block. One receives supply voltage, while the opposite terminal sends current to the load. When the actuator changes position, the internal metal contact closes and allows current flow rated between 15A and 30A depending on model.
Indicator and ground layout
Two separate terminals normally serve the LED indicator. One connects to chassis ground while the other receives voltage from the load side or supply line. This arrangement allows the internal light module to glow only while the accessory device is active.
Verify each terminal using a continuity test before installation. With a multimeter set to resistance mode, press the actuator and confirm which contacts close. Correct identification prevents constant LED illumination, inactive accessories, or shorted power lines.
Identifying power input load output ground and LED pins on an 8 pin rocker switch
Locate the power supply terminal first by checking the rear terminal block with a multimeter. The supply contact usually connects internally to one side of the main mechanical contact set and receives 12V or 24V DC from the vehicle or control panel distribution line.
The load output terminal sits opposite the supply contact on the internal contact bridge. When the actuator moves to the ON position, the internal metal contact closes and allows current to travel toward the accessory device such as auxiliary lights, pumps, compressors, or cooling fans.
Ground contacts normally serve the indicator lighting module. One terminal connects directly to chassis ground or the negative bus of the electrical system. Without this return path the LED indicator cannot illuminate.
The indicator light contacts include a positive feed and a ground return. In many installations the positive LED feed attaches to the load side so the indicator glows only while the accessory device receives voltage. Testing continuity across each terminal pair before installation helps identify these contacts and prevents misplacement of supply or load conductors.
