Connect the emergency brake cutoff device directly to the onboard battery and electric brake circuit. This safety unit activates the braking magnets if the towed vehicle separates from the towing vehicle. A small pull cable removes a retaining clip from the cutoff device, instantly closing the electrical circuit and sending current from the battery to the brake assemblies.
The seven-contact towing connector supplies several circuits between the tow vehicle and the towed unit. One terminal usually carries the electric brake control signal from the cab controller, another provides a constant 12-volt charge line that maintains the auxiliary battery mounted on the chassis. This battery powers the emergency braking device when separation occurs. Without this dedicated power source, the brake magnets would remain inactive during a detachment event.
Use copper conductors rated around 12–14 AWG between the battery, the safety cutoff device, and the brake circuit. Shorter cable runs reduce voltage drop. Secure ring terminals to the battery posts and protect the positive lead with an inline fuse rated around 20–30 amps. Route the cable along the frame using insulated clamps placed roughly every 30–40 cm.
Mount the cutoff device on the front frame rail of the towed unit so the pull cable can attach to the tow vehicle independently from the hitch chain. The cable must stay slightly shorter than the safety chains. During separation, the cable pulls the retaining clip before the chains reach full tension, triggering the braking magnets and slowing the rolling vehicle.
7 Pin Trailer Breakaway Switch Wiring Diagram With Connector Layout and Brake Circuit
Connect the emergency stop device directly between the onboard battery and the electric brake line. This arrangement allows current to reach the brake magnets immediately after the retaining clip is pulled from the safety unit. Without this connection, the braking assemblies remain inactive if the towed vehicle separates from the tow vehicle.
The seven-contact towing connector distributes several circuits between the tow vehicle and the towed unit. One terminal typically carries the electric brake control signal from the cabin brake controller, while another delivers a constant 12-volt supply used to maintain the auxiliary battery mounted on the frame. This battery powers the safety stop mechanism if separation occurs during motion.
Connector terminal roles related to the brake circuit

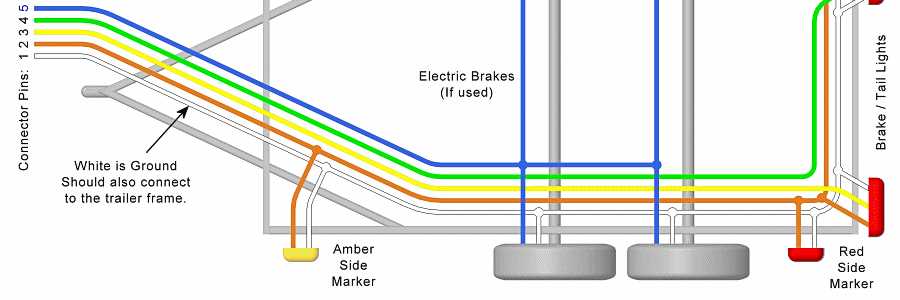

A typical arrangement assigns one contact to the brake controller signal line. Another terminal handles ground return through a white conductor attached to the chassis. A separate contact supplies the battery charge line from the tow vehicle alternator. These connections allow the braking magnets to receive both control current and backup battery power.
Use copper conductors rated around 12–14 AWG between the battery pack, the safety stop unit, and the electric brake line. Strip roughly 7 mm of insulation, insert the strands into crimp terminals, and compress them using a ratcheting crimp tool. Loose terminations cause voltage loss and reduce braking force.
Install a 20–30 amp inline fuse on the positive cable between the battery and the safety stop unit. This protection device prevents overheating if a short circuit develops along the frame rail. Mount the fuse holder close to the battery enclosure so the protected cable length remains minimal.
Battery connection and braking activation path
The battery positive terminal connects to one lead of the safety stop device. The second lead continues to the electric brake circuit that runs to each wheel hub magnet. Once the retaining clip leaves the housing, internal contacts close and allow direct current flow from the battery to the braking assemblies.
Mount the safety stop device on the front frame section of the towed unit. Attach its pull cable to a fixed point on the tow vehicle separate from the hitch coupler and safety chains. The cable should remain slightly shorter than the chains so tension removes the retaining clip before the chains fully extend.
After installation, test the system by pulling the cable manually while the wheels are raised slightly off the ground. The braking assemblies should lock immediately as current reaches the magnets. Reinsert the retaining clip and confirm that the wheels rotate freely again.
Breakaway switch connection to trailer brake battery and 7 pin trailer connector
Connect the emergency stop unit directly between the onboard battery pack and the electric brake control line. This arrangement allows the braking magnets to receive immediate power if the retaining clip is pulled from the safety device during separation from the towing vehicle.
Battery and safety device connection path
The battery mounted on the chassis supplies backup power dedicated to the emergency stopping system. One cable from the positive battery terminal runs into the safety cutoff device. The second lead from that device continues toward the electric brake circuit that feeds each wheel hub magnet. Ground return connects from the battery negative terminal to the chassis frame.
- Battery positive → safety cutoff device input
- Safety cutoff device output → electric brake circuit
- Battery negative → chassis ground point
- Brake magnets → frame ground return

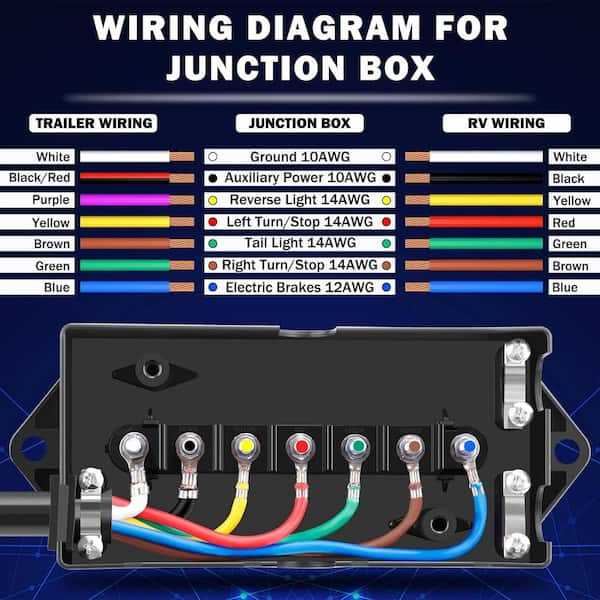

The multi-contact tow connector mounted at the hitch carries several circuits between the towing vehicle and the towed unit. One contact transmits the brake controller signal from the cabin control module. Another terminal supplies a constant 12-volt charge line that replenishes the onboard battery while driving.
Connections through the seven-contact tow connector
Typical contact assignments within this round coupler include the following electrical paths:
- Electric brake control signal from the cab controller
- Ground return connected to the chassis frame
- 12-volt auxiliary charge line linked to the battery pack
- Lighting circuits including tail lamps, indicators, and brake lights
Use copper conductors rated around 12–14 AWG along the brake power path. Secure ring terminals at the battery posts and protect the positive cable with a 20–30 amp inline fuse positioned close to the battery enclosure. After installation, pull the safety cable manually and confirm that the brake magnets lock the wheels, proving that current flows directly from the battery through the emergency stopping device.
