Connect the brown wire to the right-side running lights for consistent illumination during transit. This link guarantees proper signaling and avoids lighting discrepancies when the vehicle is towing.
Attach the yellow lead to the left-side markers to synchronize brake and directional indicators. Misalignment here can trigger error codes or unsafe signaling conditions on the road.
Integrate the green cable with the right-turn indicators and test continuity before final assembly. Proper sequencing ensures hazard signals operate without delay.
Route the white wire to the common ground point on the chassis to stabilize electrical flow. A secure ground prevents flickering and protects against short circuits during heavy loads.
Use the blue wire for electric braking control and confirm its responsiveness with a multimeter. Accurate braking signals improve overall towing safety and reduce wear on both vehicle and towed equipment.
Reserve the red lead for auxiliary power supply to run interior or additional external lighting. Ensure connectors are fully insulated to prevent accidental discharge or corrosion.
Double-check the black wire for battery feed alignment before closing connections. Consistent voltage delivery avoids intermittent power failures and keeps all functions operational under stress.
7 Pin Connector Layout
Use a seven-contact configuration with the following assignments: ground to the chassis, left-side indicators, right-side indicators, braking system feed, auxiliary power, reverse lights, and a dedicated fog lamp circuit. Verify each conductor with a multimeter before assembly to prevent cross-connection and ensure consistent signal transmission. High-quality crimp terminals reduce resistance and prevent overheating in continuous load conditions.
Follow this structured sequence for installation:
- Chassis return: attach securely to metal frame points.
- Indicators: separate circuits for left and right to avoid interference.
- Braking feed: route through protective conduit to resist abrasion.
- Auxiliary power: include an inline fuse near the source.
- Reverse lights and fog lamps: confirm polarity matches the towing unit output.
Check connections periodically for corrosion, and apply dielectric grease to maintain contact integrity. Accurate labeling of each line simplifies future diagnostics and minimizes downtime during service.

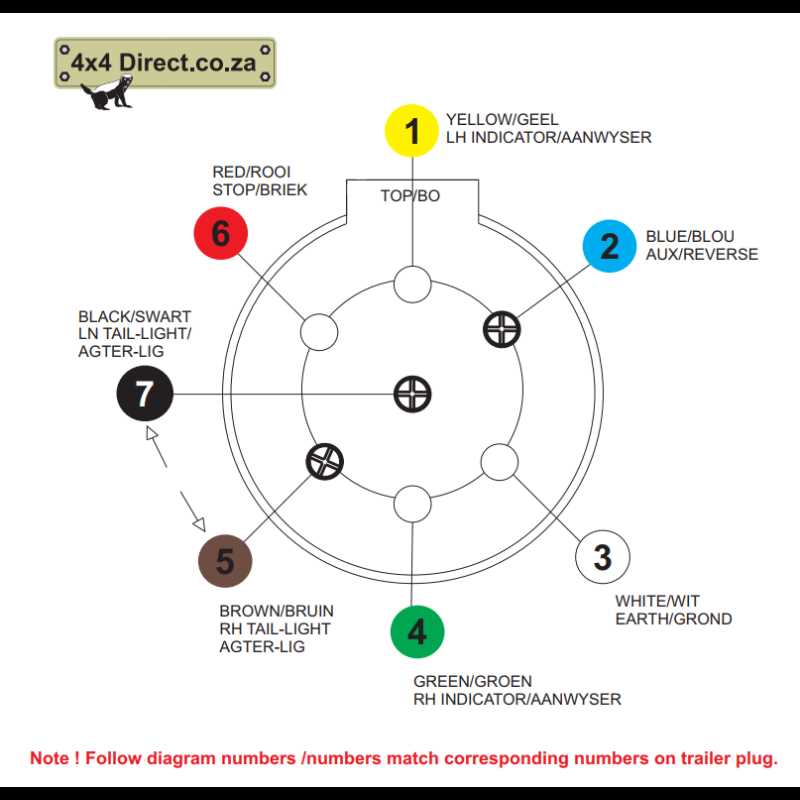

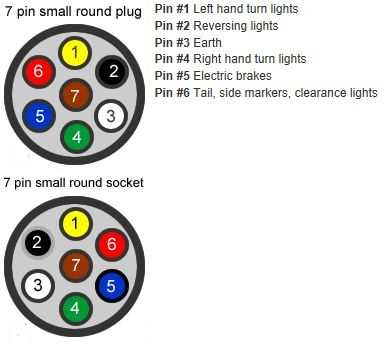

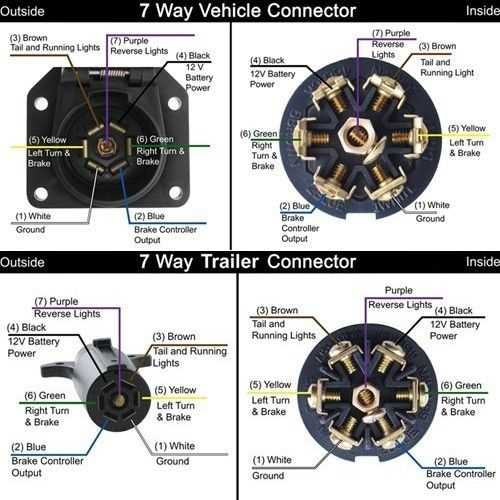

How to Identify Each Pin Function on a 7 Pin Trailer Connector
Assign the round socket positions based on the standard color code: yellow controls left turn signals, green handles right indicators, brown feeds the tail lamps, and white acts as the grounding wire. Blue delivers power to the auxiliary circuits, red manages the braking system, and black provides a constant 12V feed for charging or lighting accessories. Label each wire clearly with tape or shrink tubing before making connections to avoid misrouting during installation.
Use a multimeter set to continuity or voltage mode to verify each conductor’s role before connecting. Touch the probe to the mating receptacle while activating the vehicle lights and brakes to confirm correct identification. Double-check that the ground path is solid; poor grounding is a common source of flickering lamps and erratic signals. Mark the socket layout on paper for future reference to prevent confusion when replacing or repairing connectors.
