Match each colored lead to its designated function to ensure proper signal flow between the towing unit and towed device. Common assignments include brown for running lights, yellow for left turn, green for right turn, and blue for brakes.
Secure all terminals tightly with 10–12 in-lb torque to prevent loose contacts that can cause flickering lights or intermittent operation. Use a small screwdriver and check each fastener after initial installation.
Measure voltage at each contact with a digital multimeter before full operation. Running lights should read 12–13 volts when activated, while brake circuits may peak up to 14 volts during braking events.
Route cables along the vehicle frame using clamps or clips to avoid sharp bends or chafing. Keep all leads away from exhaust pipes or moving parts to prevent insulation damage over time.
Use dielectric grease on all contacts to reduce corrosion and improve conductivity, especially in humid or salty environments. This helps maintain consistent performance across all signal circuits.
Double-check color codes against the manufacturer chart before energizing. Incorrect matching can result in reversed indicators or nonfunctional auxiliary systems, compromising safety during operation.

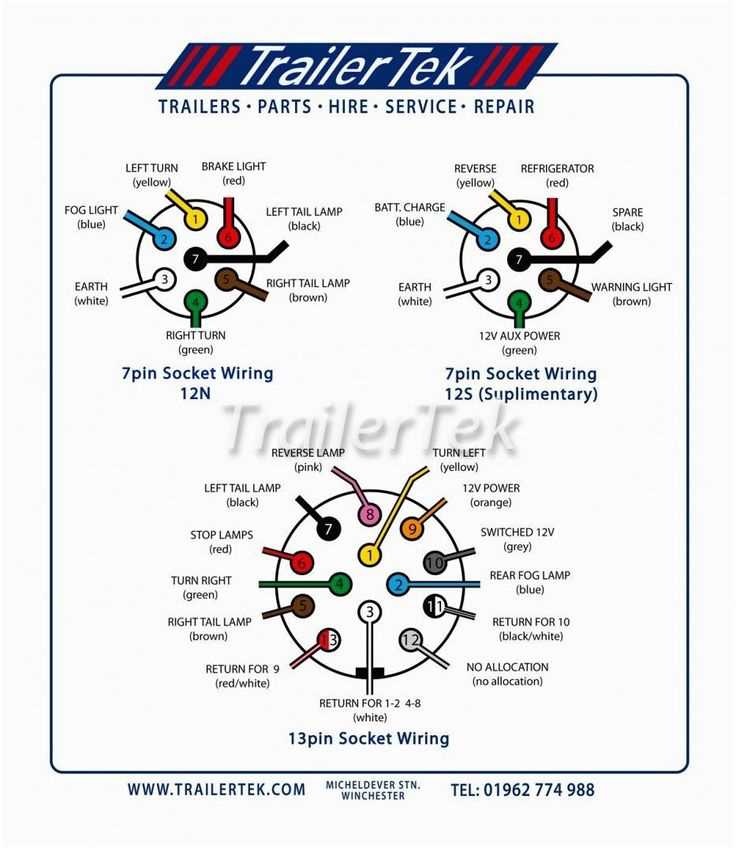

7 Wire Vehicle Plug Setup
Match each colored lead to its designated circuit following the manufacturer’s chart. Typical assignments include:
- Brown for running lights
- Yellow for left turn signal
- Green for right turn signal
- Blue for brake lights
- White for ground
- Red for auxiliary power
- Purple for reverse or additional functions
Secure all connections with proper torque and test voltage at each contact before full operation. Ensure the leads are routed along the frame, avoiding sharp edges or heat sources. Use dielectric grease on contacts to prevent corrosion and maintain consistent signal transmission across all circuits.
Identifying Functions and Color Codes
Match each colored lead to its assigned circuit using the official color chart. Standard allocations include brown for running lights, yellow for left indicators, green for right indicators, blue for brake activation, white for grounding, red for auxiliary power, and purple for reverse lights. Verify each lead with a multimeter for continuity before applying full voltage to prevent short circuits or reversed signals.
Inspection and Testing
Secure all terminals and organize the leads along the frame using clamps or clips to prevent chafing and heat damage. Apply a thin layer of dielectric grease on each contact to reduce corrosion. Test every function individually–running lights, indicators, brakes, and auxiliary circuits–to confirm proper operation and ensure no cross connections or signal failures occur.
