Step-by-step guide to connecting a 7 pin ignition switch

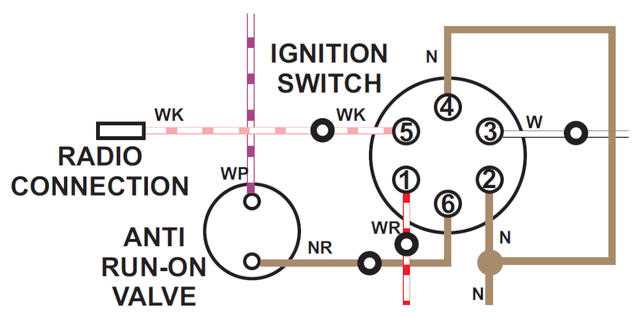

7 pin ignition switch wiring diagram

Start by connecting the main power source to the correct terminal. This terminal should be connected to the vehicle’s battery or fuse panel, ensuring the device receives the necessary power for operation. The connection should be made with a properly rated fuse to prevent overloading or short circuits.

Next, identify the other terminals used to control various functions such as the start and run positions. Each of these terminals will correspond to a specific circuit in the electrical system, such as the fuel pump, starter motor, or charging system. Make sure each connection is clean, secure, and properly insulated to avoid any electrical issues.

When connecting the system, it’s important to use wires that are rated for the appropriate amperage. Thin wires can result in voltage drops or overheating, so choose a wire size that matches the current draw of each component. Avoid any wire that could potentially create a hazard or cause performance issues.

Test the system once all connections are made. Turn the vehicle on and check if each function operates smoothly, without any interruptions. If the system does not work as expected, recheck each connection and ensure there are no faulty or loose connections that might disrupt the current flow.

Identifying the pins and their functions in the ignition switch

The first terminal is typically for the battery connection, providing power to the device. This terminal should be connected to a reliable power source, such as the vehicle’s battery or fuse panel, with a fuse rated for the system’s maximum current draw.

The second terminal is often used for the accessory circuit. This connection powers the accessories in your vehicle, such as the radio or air conditioning, when the key is turned to the accessory position. It should be wired to a circuit that supplies power to these components.

The third terminal usually controls the start circuit. This pin is connected to the starter motor, allowing it to engage when the key is turned to the start position. The connection must be solid to ensure the starter receives the proper current to function.

The fourth terminal connects to the run position, supplying power to the engine and other necessary systems while the vehicle is running. This terminal ensures that components like the fuel pump and alternator are powered throughout the operation of the vehicle.

Another terminal is designated for the coil circuit. This is used to send voltage to the vehicle’s ignition coil. A stable connection is needed for the engine to start and maintain its operation. Make sure this connection is well insulated to prevent any electrical issues.

The sixth terminal often connects to the lighting system. It provides power to the vehicle’s headlights, ensuring that they work when the vehicle is in the proper position. This terminal should be wired with a high-quality wire to handle the current required for the lights.

The seventh and final terminal may serve as a ground connection or be used for another vehicle component, depending on the system’s design. Grounding this terminal is crucial to complete the circuit and ensure proper operation of the entire system.

Connecting the ignition switch to the battery and ignition system

7 pin ignition switch wiring diagram

Start by securely connecting the main power terminal to the positive side of the battery. Use a high-quality cable that can handle the required current for the system. This ensures that your device receives proper power when turned on.

Next, link the terminal designated for the start function to the starter motor. This connection must be clean and tightly secured to avoid any interruptions when the vehicle is cranked. A reliable connection here ensures the starter motor operates correctly when the key is turned to the start position.

For the run terminal, wire it to the fuel pump and alternator. This allows the systems to remain powered while the engine is running. It’s important to use properly insulated wires to prevent short circuits and to ensure stable operation of the connected components.

  • Use appropriate fuses for each connection to protect the circuit from overloads.
  • Confirm that all wires are rated for the proper voltage and current draw.

Finally, ensure the ground connection is solid. This may involve attaching a wire to the vehicle’s metal frame or another stable ground point. Proper grounding is critical to avoid electrical interference and ensure the entire system functions correctly.
