Ensure each conductor is matched to the correct function by following standardized color codes for brake lights, turn indicators, and running lamps. Cross-referencing each pin with the control module prevents short circuits and signal failures.
Secure connections using insulated terminals and corrosion-resistant contacts to maintain consistent power delivery and signal integrity under vibration and exposure to moisture. Tight connections reduce voltage drop and avoid intermittent lighting issues.
Verify continuity and signal response after assembly using a multimeter or test light. Activating brakes and turn signals while observing corresponding lamps confirms proper routing and functionality of each line in the system.
Label each conductor clearly near the connector body to simplify future maintenance or replacement. Color-coded or numbered tags reduce the chance of cross-connection during installation or troubleshooting.
Complete Guide to 6 Wire Connector Setup for Vehicle Lighting Systems
Match each line to the correct function using standardized color codes for brake lamps, turn signals, and running lights. Ensure that each pin aligns with its corresponding terminal on the control unit to avoid shorts and flickering.
Secure all connections with corrosion-resistant terminals and use insulated crimp fittings to maintain reliable current flow under vibration and moisture exposure. Loose contacts can cause intermittent lighting failures and reduce signal clarity.
Test each conductor individually with a multimeter or test lamp to verify continuity and proper activation of brake, signal, and running circuits. Check both the vehicle side and the lamp assemblies for consistent operation.
Organize and label each line clearly near the connector body using colored sleeves or numbered tags. This prevents confusion during installation, troubleshooting, or replacement, especially in complex lighting setups with multiple circuits.
Maintain proper routing and strain relief for all connections to prevent accidental pull-out or abrasion. Keep lines away from sharp edges, moving parts, and heat sources to preserve long-term functionality and reduce maintenance needs.
Understanding Pin Functions and Color Codes for Tail and Brake Lights

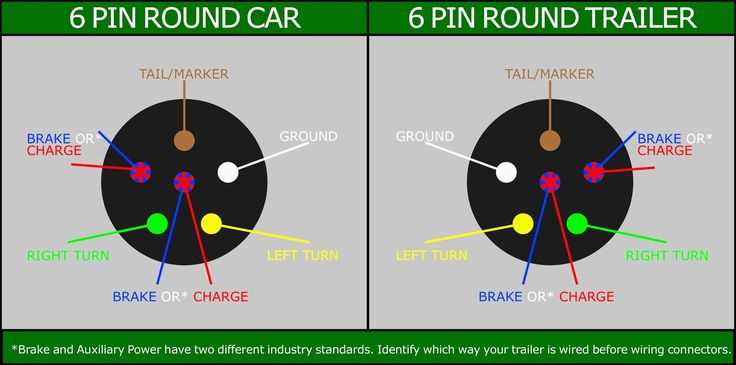

Identify each pin by function using the standard six-position configuration: left turn, right turn, tail lights, brake lamps, ground, and auxiliary. Correct assignment prevents signal crossovers and ensures consistent illumination.
Follow the recognized color coding for easy recognition: brown for tail lamps, red for brake circuits, yellow for left turn, green for right turn, white for ground, and blue for auxiliary. This alignment reduces troubleshooting errors during installation.
Check continuity and polarity with a multimeter before connecting to the control module. Misidentified pins can result in flickering signals or non-functioning brake lights, creating safety hazards on the road.
- Brown – tail and running lights
- Red – stop lamps
- Yellow – left signal
- Green – right signal
- White – ground
- Blue – auxiliary functions
Maintain secure connections using crimped terminals or locking sockets. Loose contacts can increase resistance, generate heat, and cause intermittent failures, affecting the visibility of signals during operation.
