Use a 5v switching component with optocoupler isolation to safely control devices up to 250V AC. Ensure the input pins match your microcontroller’s logic levels to prevent overvoltage.
Connect the coil terminals to a regulated 5v DC source and include a flyback diode across the coil to suppress voltage spikes that can damage transistors or microcontrollers.

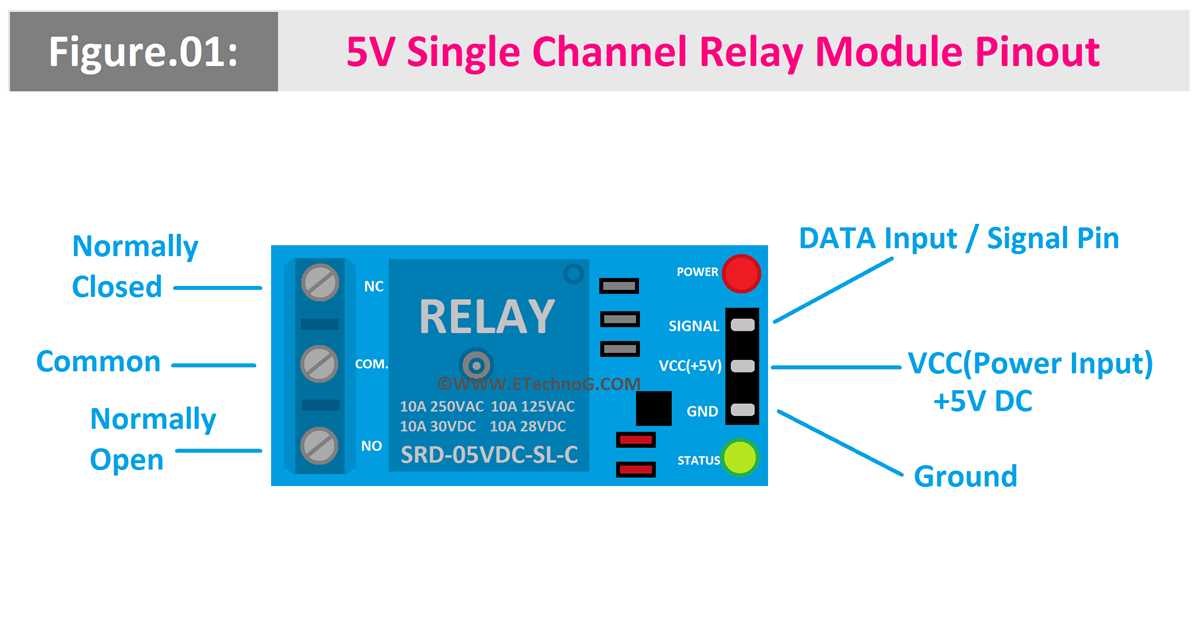

For load connections, choose normally open or normally closed contacts depending on whether you want the device to activate when power is applied or when de-energized. Verify the maximum current rating matches your load specifications.
Use short, thick jumper wires and solid connections to reduce resistance and prevent voltage drops. This is particularly important when switching motors or lamps that draw higher current.
Test the switching component with a multimeter before connecting sensitive electronics to ensure proper activation voltage and contact continuity. Avoid triggering with fluctuating input signals to prevent erratic behavior.
Complete guide to using a 5v switching component for controlling electronic devices

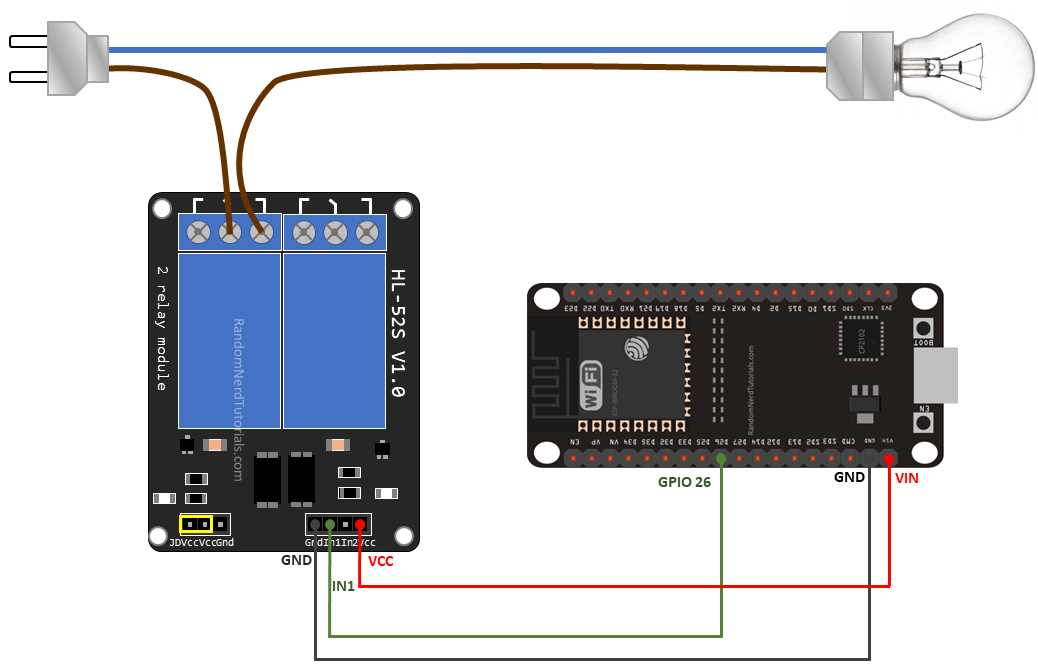

Connect the 5v coil terminals to a regulated DC source with a flyback diode across them to prevent voltage spikes from damaging transistors or controllers.
Ensure logic level compatibility between your microcontroller and input pins. A 5v logic signal should fully energize the coil without overloading the control device.
Select normally open or normally closed contacts according to whether the device should activate on signal presence or absence. Verify that the load current does not exceed the contact rating, typically 10A at 250V AC or 30V DC.
Use insulated jumper wires and solid connections for the high-current load to reduce resistance and heat buildup. Thin wires can cause voltage drops and overheating under continuous operation.
Include an LED indicator in series with a current-limiting resistor to visualize activation status. This helps identify faults and ensures the component triggers as expected before connecting sensitive electronics.
Test the switching component in isolation with a multimeter to confirm contact operation and coil resistance. Avoid rapid on-off cycles exceeding the specified frequency to prolong device life.
Consider heat dissipation when switching loads near maximum ratings. Mount the device on a non-conductive base and allow airflow to prevent thermal stress that could degrade contacts or the internal driver.
Follow safety precautions when controlling AC loads. Keep high-voltage connections separate from control circuitry and use protective fuses to minimize risks of short circuits or accidental overcurrent.
Choosing the right components for a 5v switching setup
Select a coil with a stable 5v rating and low internal resistance, ideally between 70 and 150 ohms, to ensure consistent activation without overloading the control source.
Choose contacts rated for your load type, whether AC or DC. For typical household devices, contacts rated 10A at 250V AC or 30V DC provide a safe margin while maintaining reliable operation.
Include a flyback diode across the coil terminals to prevent voltage spikes from reaching sensitive electronics. A 1N4007 diode is sufficient for most small 5v setups.
Opt for a driver transistor or MOSFET that can handle the coil current without heating excessively. A standard NPN transistor like 2N2222 or a logic-level MOSFET works well for switching small 5v loads.
Use low-tolerance resistors in series with LEDs for status indicators. Resistors in the range of 330–1kΩ prevent overcurrent while clearly showing the activation state.
Consider opto-isolation if the control source is sensitive. Opto-couplers provide separation between the low-voltage microcontroller and the high-current load, reducing the risk of damage.
Check the switching frequency limit of each component. Avoid continuous high-speed toggling beyond 1–2 Hz unless components are rated for higher frequencies to maintain longevity.
Ensure mechanical supports and insulated connectors for all high-current paths. Solid solder joints or crimped terminals reduce resistance and heat buildup while keeping the setup physically stable.
