Verify voltage and ground lines before connecting the device to the engine control unit. Incorrect polarity can cause inaccurate readings or permanent damage.
Identify signal and reference outputs using a multimeter. Ensure each terminal corresponds to either the main airflow data, temperature feedback, or auxiliary control line for precise monitoring.
Use heat-resistant sleeves or clips for all leads that run near hot engine components. This prevents insulation melting and accidental short circuits under high temperatures.
Keep leads separated from high-current circuits to avoid interference. Route the signal lines away from ignition coils, alternators, and battery terminals to maintain accurate measurement.
Test each connection under idle conditions before full load. Observe voltage fluctuations at each terminal to confirm correct installation and stable feedback to the control unit.
Secure connectors firmly using locking clips or screws rated for the engine environment. Loose contacts can create intermittent faults or trigger warning lights on the dashboard.
Document each lead assignment with labels or a reference chart. This simplifies troubleshooting and future service on the airflow monitoring system.
After assembly, perform a controlled operational check by varying engine speed and load. Confirm that each terminal provides consistent signals and that the system responds correctly to airflow changes.

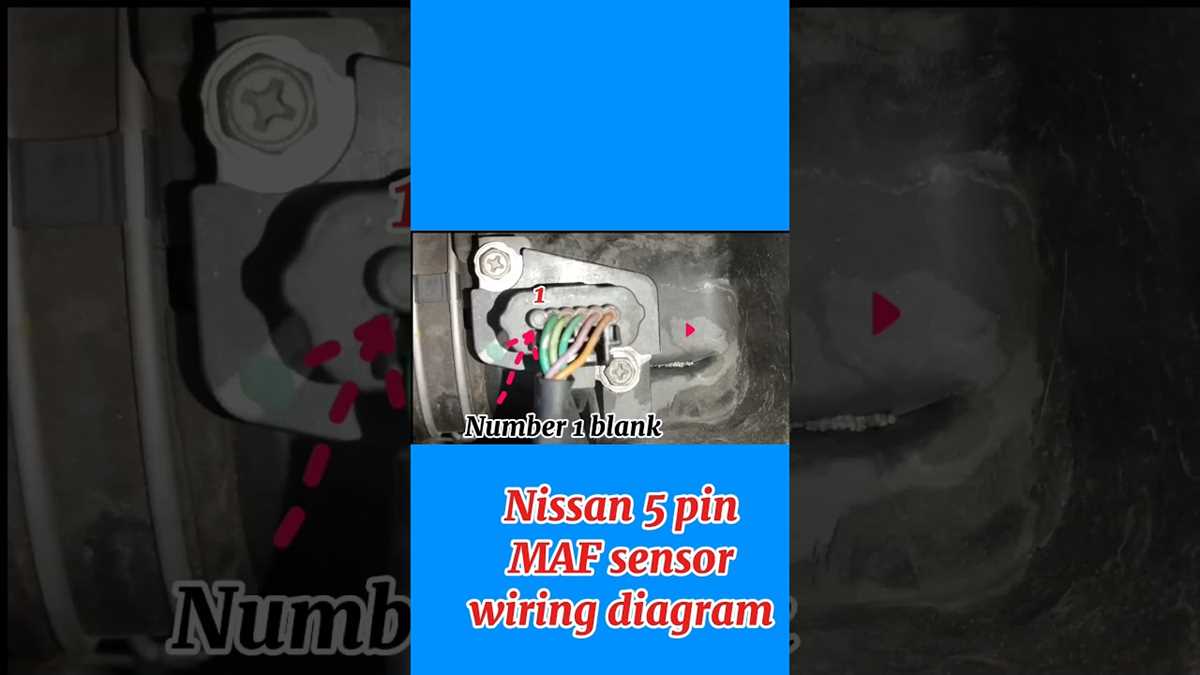

5 Lead Airflow Device Connection Guide
Confirm the main power input before attaching any terminals to prevent overvoltage damage. Use a digital multimeter to verify that the voltage matches the device specifications.
Identify signal outputs and reference contacts using continuity testing. Label each line according to its function, such as airflow measurement, temperature feedback, or auxiliary control, to avoid mistakes during installation.
- Primary power contact: Supplies voltage to the measurement module. Ensure a stable and clean connection directly from the battery or fuse box.
- Ground connection: Connect to a clean chassis point to maintain consistent reference voltage and prevent signal drift.
- Airflow output: Sends the main measurement signal to the engine control unit. Test for proper voltage variation when airflow changes.
- Temperature feedback: Monitors air intake temperature. Verify the resistance or voltage aligns with specifications at different engine temperatures.
- Auxiliary line: Provides additional functionality such as relay activation or diagnostic signals. Confirm isolation from high-current circuits to avoid interference.
Use insulated terminals and secure all connectors with clips or fasteners rated for engine vibrations. Loose connections can cause erratic readings or intermittent faults.
Route leads away from heat sources such as exhaust manifolds and turbo components. High temperatures can degrade insulation and affect signal integrity.
Test the assembly under varying engine loads to ensure each contact produces stable and accurate readings. Adjust connections immediately if signals fluctuate beyond normal tolerance.
Maintain a reference chart showing each terminal’s function and position. This simplifies troubleshooting and future maintenance without guessing or trial and error.
Identifying Each Lead and Its Role
Start by labeling all five terminals according to their function: main power, ground, airflow output, temperature feedback, and auxiliary signal. Correct labeling prevents cross-connections and ensures accurate operation.
Test continuity for each contact with a multimeter to confirm internal connectivity. This step distinguishes the primary output from reference and control leads, reducing installation errors.
Use colored sleeves or tags on each connection to simplify identification in tight engine bays. Assign consistent colors for power, ground, and signal paths to streamline future diagnostics.
Verify voltage and resistance at each terminal under idle and load conditions. The main output should vary with airflow changes, while the reference and temperature lines must remain within specified tolerances.
Document each lead’s role in a reference chart or service sheet. Maintaining this information allows quick troubleshooting and prevents misconnection when servicing or replacing components.
