Use a stable 9V supply to power the timing module, ensuring pulse consistency for sequential activation of output nodes. Connect the timing resistor between pins 7 and 8 to control frequency precisely.
Adjust the capacitor value between the control pin and ground to modify pulse duration. Smaller capacitance produces faster switching while larger capacitance lengthens the interval between activations.
Wire the decade counter outputs to LEDs in series with 220-ohm resistors to prevent overcurrent. Each output will illuminate sequentially as pulses are received, creating a clear visual pattern.
Include a reset line from the counter to ground through a pushbutton or transistor switch for manual cycle restart. This helps maintain correct sequencing during testing and adjustments.
Verify connections with a multimeter before applying power. Check continuity for all nodes and ensure there are no shorts between adjacent pins, especially around the timing IC and sequential module.

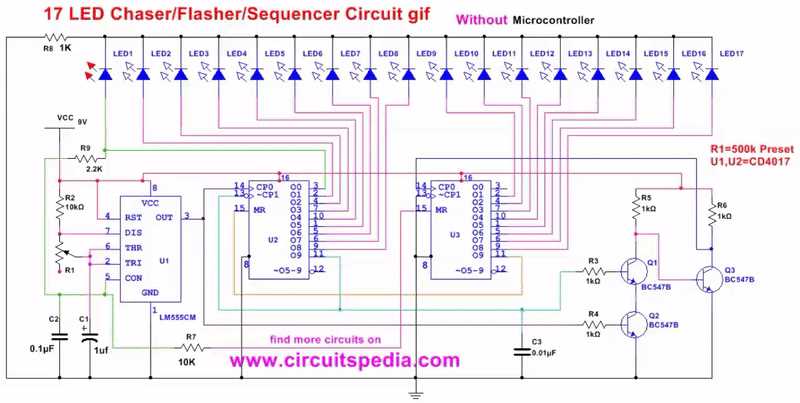

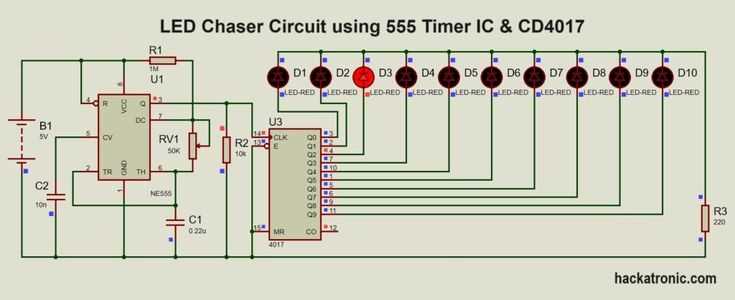

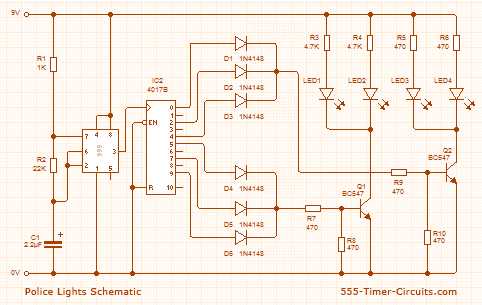

Complete Guide to Wiring and Connecting 4017 and 555 Timer Circuits for Projects
Start by placing the timing IC on a breadboard with pins 1 and 8 connected to the positive and negative rails. Insert a 10kΩ resistor between pins 7 and 8, and a 100nF capacitor between pins 5 and ground to stabilize pulse generation. This setup ensures the oscillator produces consistent square waves for triggering sequential modules.
Link the counting module outputs to LEDs through 220Ω resistors to prevent overload. Connect the reset pin to a pushbutton that momentarily connects to the negative rail, allowing manual restart of the sequence. Each LED should light in turn, following the pulse frequency set by the timing IC.
Measure voltage at each node with a multimeter after wiring to confirm continuity. Adjust the capacitor value on the oscillator IC to fine-tune the timing interval between LED activations. Ensure no adjacent pins are shorted and verify that the supply remains stable throughout testing.
Setting Up 555 Timer for Clock Pulses
Use a stable 9V DC source to power the timing IC. Connect pin 1 to ground and pin 8 to the positive rail. Place a 10kΩ resistor between pins 7 and 8 to control the charge rate of the capacitor for predictable pulse generation.
Choose the capacitor value between pins 6 and 2 to adjust the pulse width:
- 100nF for short intervals under 100ms
- 1µF for intervals around 1 second
- 10µF for longer timing over 5 seconds
Wire pin 3 output directly to the clock input of the counting module using a current-limiting resistor if LEDs are connected. This ensures the sequential activation follows the timing pulse without overloading the IC.
Test pulse frequency with a digital multimeter in frequency mode or an oscilloscope. Adjust the resistor or capacitor slightly if the interval deviates from the desired rate. Document the values used for reproducibility in future projects.
Include a bypass capacitor of 100nF near the power pins of the timing module to suppress voltage spikes. This prevents false triggering and stabilizes pulse consistency, especially when multiple outputs are connected.
Optional fine-tuning can be done by adding a variable resistor in series with the timing capacitor. This allows on-the-fly adjustments of pulse duration for testing LED sequences or other sequential components without rewiring the setup.
