To properly connect a four-terminal electrical component in an ignition system, identify each terminal’s role and the correct connections to avoid circuit damage. The four terminals are crucial for controlling the vehicle’s power flow, triggering the motor and engaging the necessary components.
Start by locating the terminal for the power supply, which usually connects directly to the battery. Next, ensure the starter motor connection is correct by attaching the appropriate terminal for the motor’s power flow. The third connection often serves as the ground or neutral, while the fourth terminal directs power back to the vehicle’s electrical system.
Common errors in making these connections include misidentifying the power source or improperly grounding the system, which can result in malfunction or failure to engage. Ensure the terminals are clean and corrosion-free before making any connections, and always verify connections with a multimeter before testing the system’s operation.

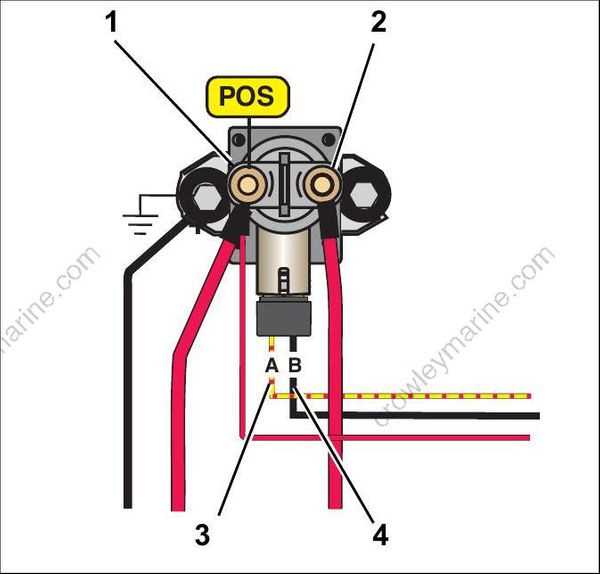

4 Wire Starter Solenoid Wiring Setup
Ensure that each terminal is correctly identified before connecting any cables. The key to successful installation is connecting the power terminals, the motor lead, and the ground correctly. Mistakes in this process can prevent proper motor operation and cause electrical malfunctions.
The first terminal should be connected directly to the power supply. This is typically the positive terminal coming from the battery. It’s crucial to secure this terminal tightly to avoid any loose connections that could cause sparks or power loss.
The second terminal connects to the motor, allowing the engine to turn when the ignition is activated. This connection must be solid, as any interruption in the power supply to the motor will result in the engine not starting properly.
The third terminal usually connects to the ground. Make sure the ground is attached securely to the chassis or a designated ground point. Without proper grounding, the system will not complete the circuit, and the starter motor will fail to operate.
The fourth terminal serves as the control terminal for activating the motor. This is often connected to the ignition switch or relay. This connection must be done precisely to ensure the motor turns on when the ignition is activated. Misplacing this terminal can lead to the system not turning on or malfunctioning during use.
When making connections, use clean, corrosion-free terminals to ensure strong, uninterrupted current flow. Any build-up of dirt or corrosion on the terminals can create resistance, leading to poor performance or complete failure.
Once everything is connected, test the system with a multimeter to verify that power is reaching the motor and other components. Use the multimeter to check for continuity between the terminals and ensure there are no short circuits.
Finally, before turning the system on, double-check all connections. Ensure that the terminals are tightly secured and insulated to prevent accidental shorts. A small mistake in this step can lead to costly repairs or potentially hazardous situations, so caution is always necessary.

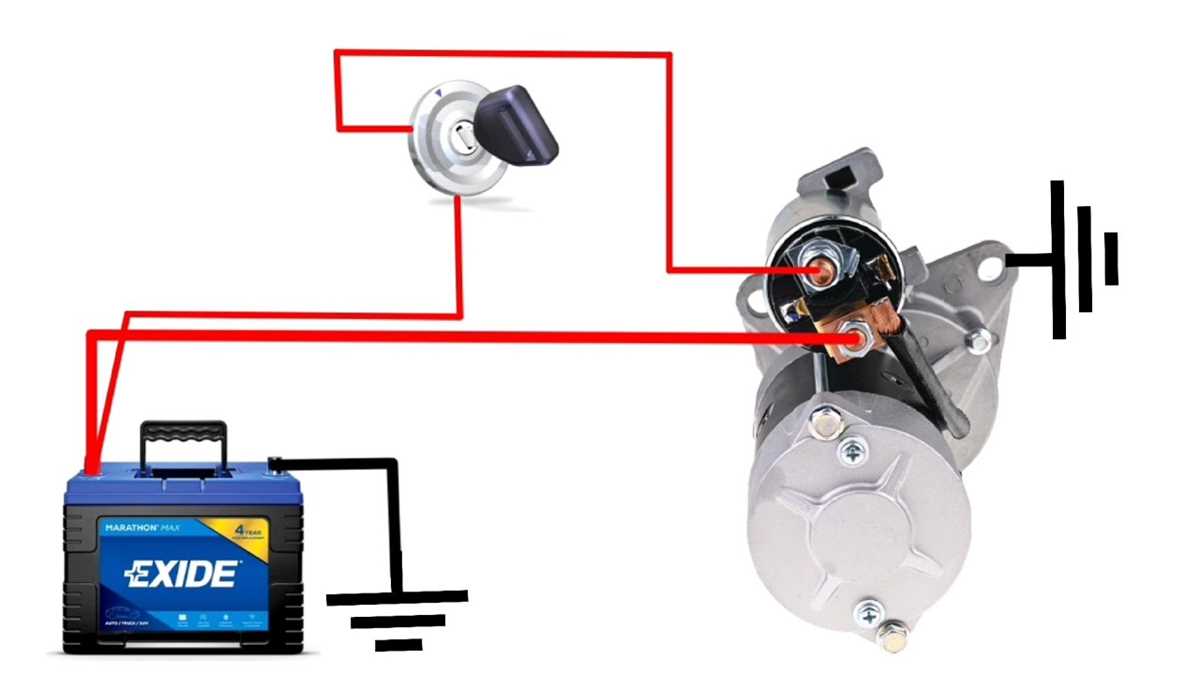

How to Identify and Connect the Four Wires in a Starter Solenoid
Begin by identifying the key terminals on the component. The first terminal is the power input from the battery. This is typically the largest terminal, often marked with a “+” sign or the word “BATT.” Ensure that the battery terminal is securely attached, as this will provide the current necessary to activate the motor.
The second terminal is the motor output. This terminal is where the power flows to the motor to initiate rotation. It is important to confirm that this connection is made correctly to avoid starting issues. The third terminal typically connects to the ground; this helps complete the circuit, ensuring the proper return of current. Finally, the fourth terminal is used for activation, linking to the ignition or relay system. This terminal controls the flow of electricity that powers the starter motor. Double-check all connections for secure placement before testing the system to prevent any electrical failures.
