Connect the hot line to the black lead first, ensuring the power source is turned off before handling any conductors. Use a voltage tester to confirm zero current.
Attach the neutral connection to the white conductor and tighten all screw terminals securely. Loose connections can cause flickering or overheating.
For the grounding path, connect the green or bare conductor to the metal housing or grounding terminal. This step prevents potential electrical hazards and ensures system safety.
Use wire nuts rated for 4-conductor assemblies to join all leads inside the junction box. Verify that no copper is exposed outside the connectors to maintain insulation integrity.
Label each conductor during installation if multiple switches or circuits are involved. Clear identification avoids cross-connection and simplifies future maintenance.
Test the assembly after completing connections by restoring power and activating the switch. Observe that all bulbs illuminate correctly without sparks, noise, or unusual heat.
Follow color codes strictly and verify terminal ratings to match the supply voltage and load. Overloading terminals can damage components or create fire risks.
4 Wire Light Fixture Connection Guide
Connect the hot feed to the black lead first and secure it with a rated connector. Confirm the source is de-energized with a tester before handling any conductors to prevent electric shock.
Join the neutral line to the white lead using a properly sized connector, ensuring all strands are fully enclosed. Improper contact can cause flickering and reduce lifespan of the bulbs.
Attach the green or bare grounding conductor directly to the metallic frame or grounding screw. This path provides a safe discharge for stray currents and prevents hazards during operation.
Check all terminal screws and connections before restoring power. Activate the switch to verify each lamp illuminates consistently without sparks, overheating, or irregular flickering.

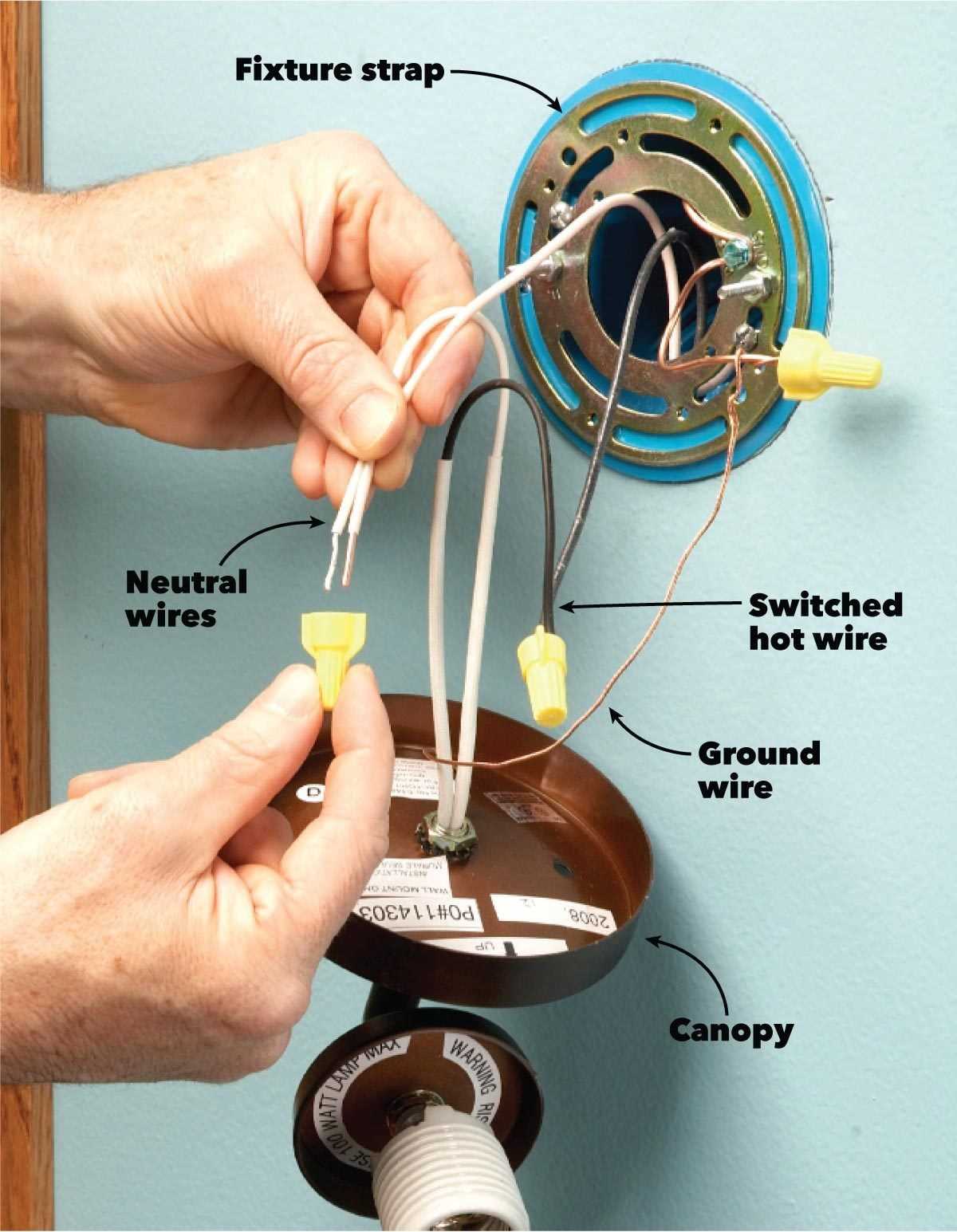

Identifying Each Wire and Its Function in a 4 Wire Fixture
Start with the hot lead, typically black, which carries the active voltage from the breaker panel. Always verify de-energized status with a tester before connecting to terminals to avoid electrical hazards.
The neutral conductor, usually white, completes the return path for current and must be securely joined to the corresponding terminal. Loose connections here can trigger flickering or intermittent operation.

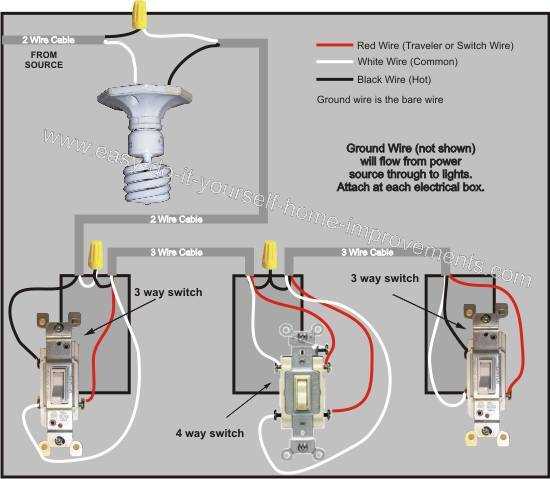

The red line serves as a traveler for multi-way switching setups, allowing independent control from two or more locations. Label it clearly when connecting to prevent confusion during installation or maintenance.
Green or bare metallic strands provide grounding, attaching directly to the metallic frame or designated grounding screw. This path ensures safety by redirecting stray current away from users and sensitive components.
When handling multiple conductors, use color-coded connectors and avoid mixing leads. Organize each path systematically to reduce the risk of misconnection and ensure stable, long-term operation of all circuits.
After all connections are secured, inspect for exposed strands or loose terminations. Test functionality with a voltage tester and toggle any switches to confirm that each pathway operates independently and safely without short circuits.
