Connect the neutral wire directly to the terminal marked for ground return to prevent potential voltage imbalances. Ensure the two hot leads are tightened securely to the respective power terminals to maintain full load capability.
Verify the grounding wire is properly clamped to the chassis before applying power. Loose connections can create heat buildup and trigger circuit breakers unexpectedly.
Use color-coded conductors to match each terminal: black and red for live, white for neutral, and green for protective earth. This reduces installation errors and ensures consistent power distribution.
Check for corrosion or paint on terminal contacts before attaching any conductors. Clean surfaces improve conductivity and lower resistance at high current points.
Tighten terminal screws with a torque screwdriver to the manufacturer’s specifications. Over-tightening may damage the lugs, while under-tightening can result in arcing under load.
Test continuity between neutral and ground to confirm there are no accidental shorts. Proper isolation prevents nuisance trips and maintains appliance longevity.
Complete Guide to 4 Conductor Appliance Installation and Connections

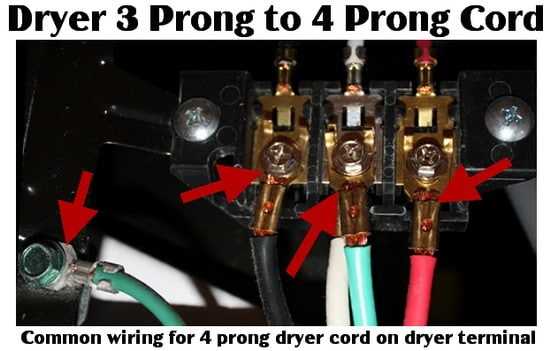

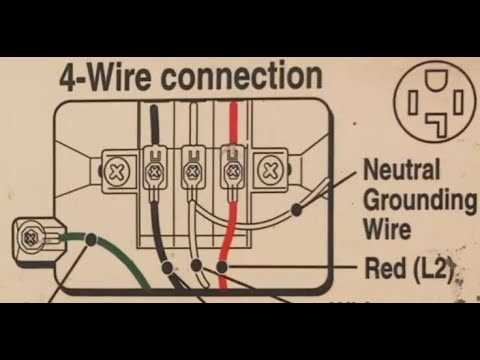

Attach the two hot leads directly to the L1 and L2 terminals on the appliance connection block. Ensure both screws are tightened to the specified torque to handle full amperage without overheating.
Connect the neutral conductor to the center terminal marked for neutral, confirming that it makes firm contact with the appliance’s bonding point. A loose connection here can cause erratic operation or circuit trips.
Secure the protective earth to the green grounding lug on the appliance frame. This wire must be continuous and free from paint or corrosion to maintain a safe path for fault current.
Route conductors carefully to prevent sharp bends or pinching. Use strain relief clamps to keep the leads stable under vibration and reduce the risk of wear over time.
Verify each conductor using a continuity tester before energizing. Check L1 to black, L2 to red, neutral to white, and ground to green, confirming no shorts exist between live terminals and earth.
After installation, power the appliance briefly to monitor voltage at each connection. Ensure consistent readings and absence of sparking, then re-tighten terminals if minor heating occurs during initial operation.
Identifying Each Conductor and Its Role in the Appliance Connection

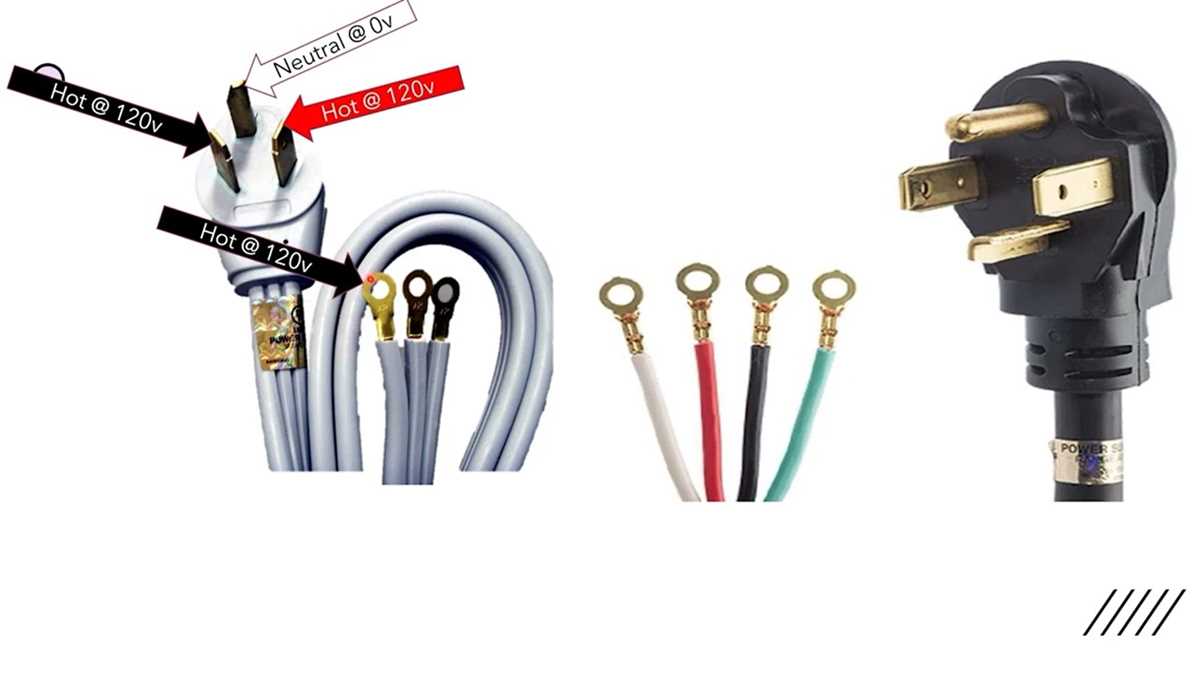

Start by labeling each lead according to function. The two power conductors carry 120 volts each to provide the 240-volt supply, the neutral completes the circuit and stabilizes voltage for internal controls, and the grounding lead protects against faults. Confirm color coding: black and red for live, white for neutral, green for ground.
Before securing terminals, test continuity and placement. Use a multimeter to verify each conductor connects to the correct point without resistance or shorts. Proper identification ensures the appliance operates safely and prevents overload on any single line, reducing fire risk and maintaining compliance with electrical standards.
