Connect travelers carefully: For a four-location control configuration, run two insulated conductors between the intermediate toggles. Label each line clearly to avoid misrouting during installation. Use copper conductors rated for at least 15 amps to maintain safe current handling.
Maintain consistent polarity: Ensure that the incoming live feed is attached to the common terminal of the primary controller. Misplacing the feed can cause erratic operation and potential electrical hazards. Confirm connections with a non-contact voltage tester before energizing.
Position intermediates correctly: Place the dual-function toggles in accessible locations and keep them within reach of the associated lighting zones. Align the traveler wires consistently with each toggle to reduce confusion and simplify troubleshooting if circuits behave unexpectedly.
Secure and insulate joints: Use wire nuts or push-in connectors rated for multi-strand wires. Wrap exposed sections with electrical tape, especially around terminal screws, to prevent accidental shorts. Test each control point individually before finalizing the assembly.
Label each terminal: Mark each wire at both ends using color-coded tape or permanent markers. This prevents cross-connections during future maintenance and ensures quick identification of travelers, commons, and load lines. Proper labeling reduces installation errors and improves safety compliance.
4 Pole Control Configuration
Connect the two intermediate toggles with four-conductor cables, ensuring that the travelers are not swapped. Use wire nuts rated for 600V for all connections, and mark the incoming line with black tape to distinguish it from the load conductor. Maintain consistent orientation on all terminals to avoid cross-feeding that can cause malfunction or shorts.
For multi-point illumination setups, position the initial and final toggles at each end of the circuit and route the conductors through the intermediates. Always test continuity with a voltage tester before energizing, and confirm that each toggle correctly controls the fixture from every location. Employ color-coded wires to simplify troubleshooting and future maintenance.

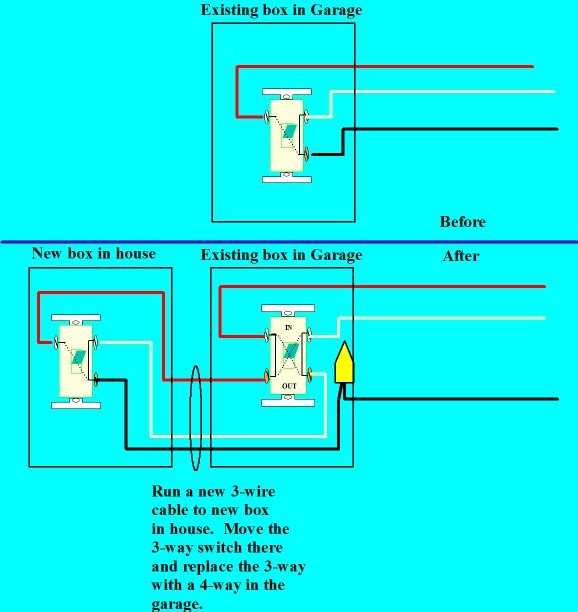

When upgrading from standard two-location controls, replace the intermediates with compatible four-pole units, and verify that the grounding is continuous throughout. Avoid splicing more than necessary; every additional joint increases resistance and potential failure points. Secure all junction boxes and leave at least 6 inches of free conductor for safe adjustments during inspection.

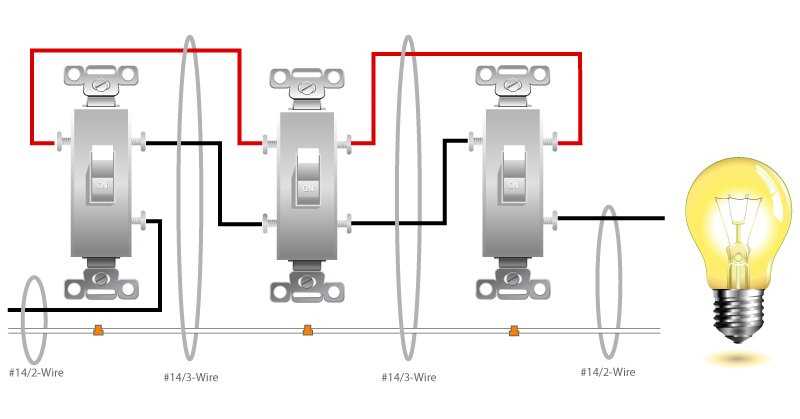

Connecting a 4-Position Toggle Between Two 3-Point Controls
Run a 14/3 cable between the two 3-point controls, ensuring black, red, and white conductors are intact. Mark the white conductor with black tape at both ends to indicate it carries a live current instead of neutral.
At the first 3-point control, attach the incoming hot line to the common terminal. Connect the black and red conductors to the traveler screws, keeping the order consistent with the other control to prevent cross connections.

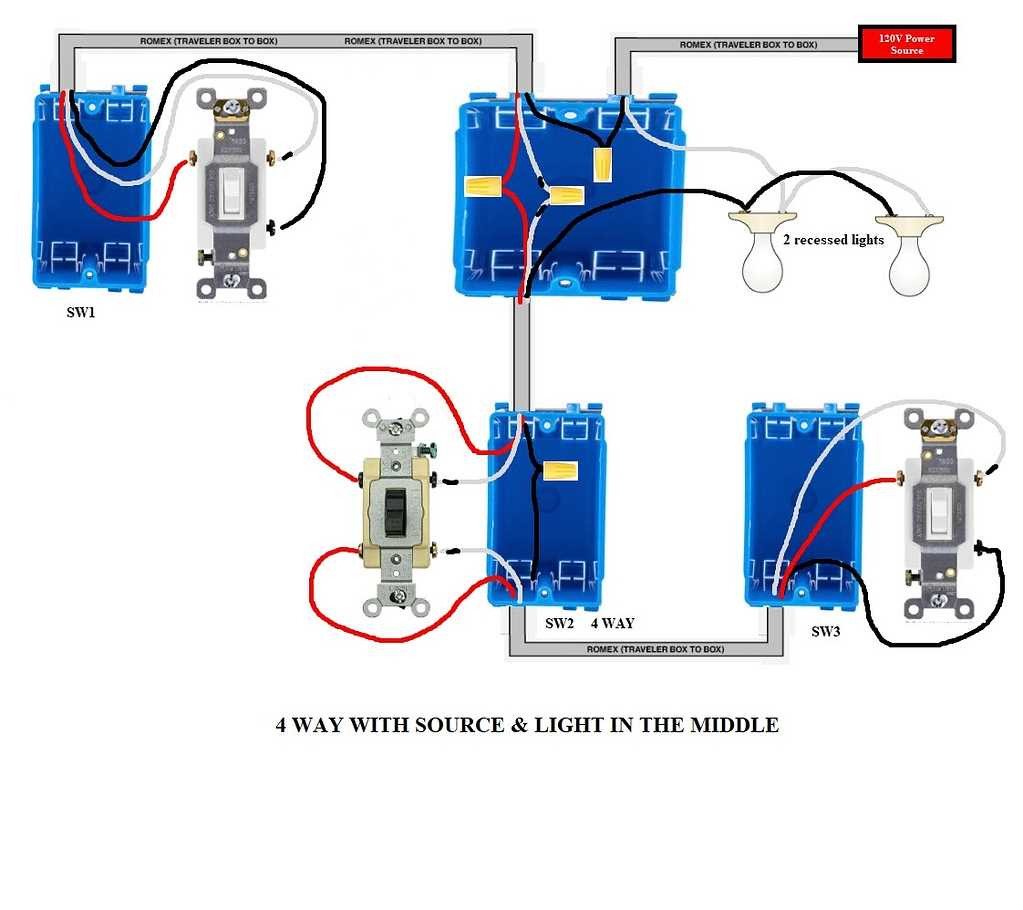

Install the 4-position toggle in the junction box midway between the 3-point controls. Connect the black and red travelers from one 3-point device to one pair of terminals on the 4-position device, and the travelers from the second 3-point device to the opposite pair. Orientation of the toggle terminals matters; use the manufacturer’s labeling to avoid misalignment.
Ensure the neutral conductors bypass the 4-position device, connecting directly between the 3-point units. Ground each device using bare copper or green-coated wire, attaching it to the grounding screw or bus in each box.
Test the connections before final assembly. One 3-point device should toggle the load on and off, while the other 3-point control and the 4-position device can change the state from either location. Confirm that all travelers switch correctly without shorts or flickering.
- Double-check all screw torque to prevent loose connections.
- Label the cables for future maintenance.
- Use a voltage tester to verify no unintended current flows through disconnected terminals.
Once confirmed, secure all devices in their boxes, attach faceplates, and restore power. The system now allows control of the light from three points, maintaining a consistent and safe circuit layout.
