For any automation or control system involving multiple devices, it’s common to interface a set of switches to control high-power loads with low-power signals. A 4-switch configuration can significantly simplify this task, allowing you to control four separate circuits from one microcontroller or processing unit. When designing such a setup, it’s important to consider the proper connection strategy to ensure safe and reliable operation.
To wire this setup correctly, you must ensure each switch is linked to its own corresponding pin on the control unit. It’s also critical to understand the voltage requirements for the connected devices to avoid overloading or damaging components. Utilize the correct pinout configuration for the chosen relay and carefully establish each control signal pathway to facilitate proper operation. Typically, this involves connecting common, normally open, and normally closed terminals for each relay, ensuring the setup is effective for switching tasks.
Understanding the connections between the switches and their corresponding control inputs is also key. The control unit should be able to send an activating signal to each individual relay when required. Be aware of the voltage and current ratings for each switch and load to avoid issues such as overheating or system failure. If you are building a system for automation, ensuring proper isolation between low and high-voltage sections is critical for safety. Proper grounding and isolating the circuits will help prevent electrical faults that could otherwise damage your system.

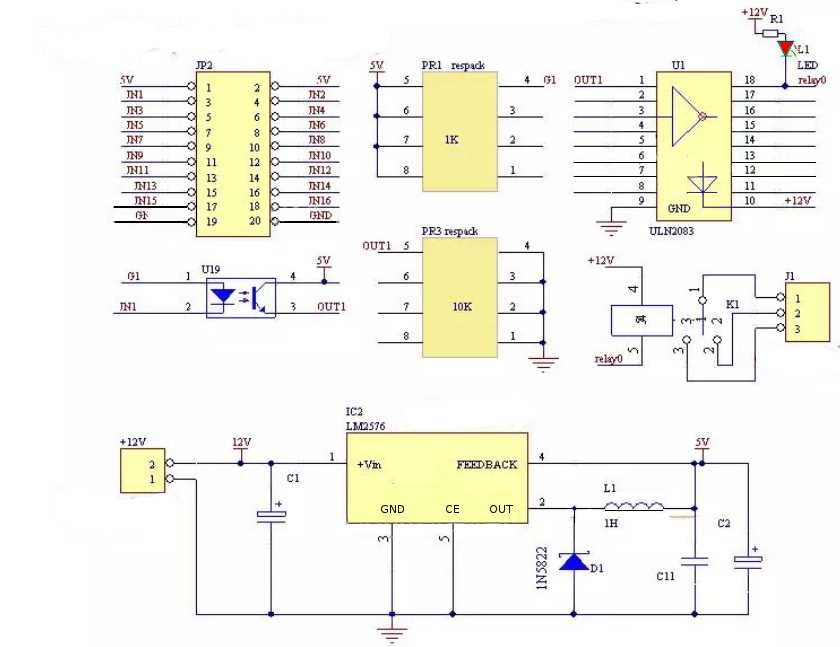

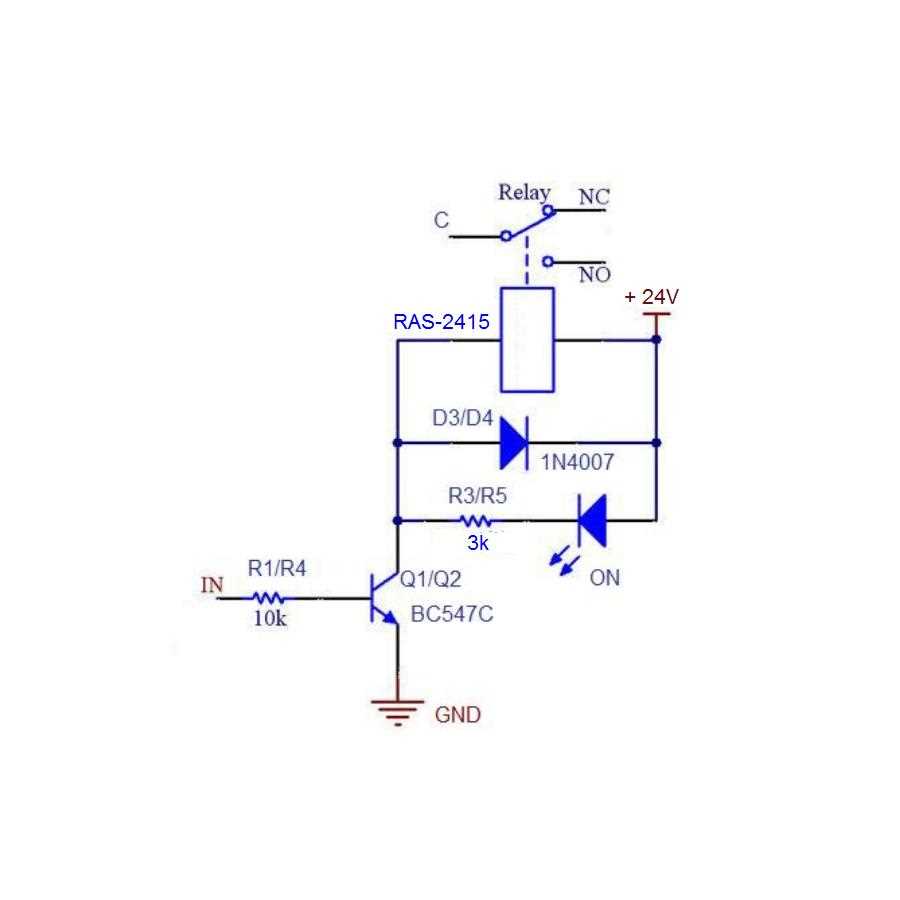

4 Relay Module Circuit Diagram
To effectively wire a system using four independent switches, the first step is to determine the voltage and current requirements of each device being controlled. Each switch should be properly matched with its load specifications. Ensure that the power supply can handle the total load of all connected devices without overloading. If the voltage of the control unit is lower than the load voltage, consider using a transistor or MOSFET as an intermediary.
For the physical layout, connect each switch to a separate control pin of the microcontroller. This enables independent control over each switch. Typically, a common terminal is shared across all switches, while each individual switch controls its corresponding normally open (NO) or normally closed (NC) terminal, depending on the operation required. This arrangement allows flexibility in controlling multiple devices from a single source.
To avoid interference and ensure smooth operation, it’s necessary to include a flyback diode across each switch. This diode will help dissipate any voltage spikes generated when switching inductive loads, protecting your microcontroller and other sensitive components. Additionally, the ground connection should be common for all parts of the system to prevent ground loops, which can cause erratic behavior.

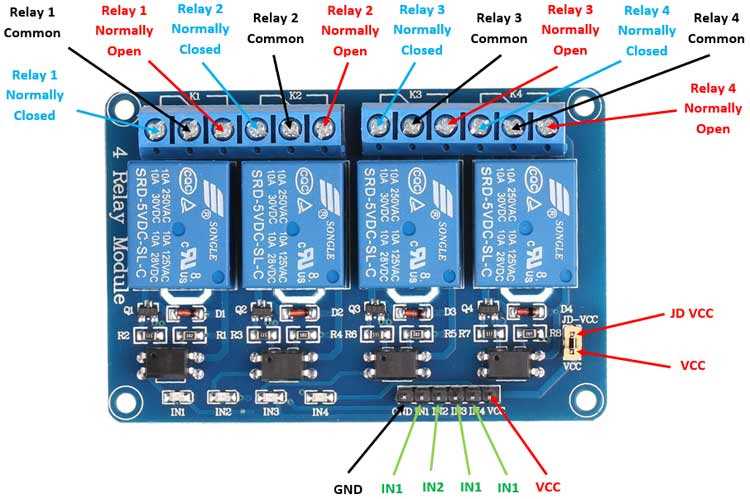

Be aware of the pinout for each switch. Most switches have a set of pins labeled “COM” (common), “NO” (normally open), and “NC” (normally closed). The “COM” pin is connected to the device you want to control, while the “NO” or “NC” pin is used to define whether the connection will be made when the switch is activated or deactivated.
The power supply for the switches must be stable and capable of providing the required voltage for the control circuitry. It’s important to note that the current draw for the switching components should not exceed the rated capacity of the control pins on the microcontroller. A relay driver circuit can be used to amplify the control signals if needed, ensuring reliable operation without overloading the microcontroller’s output pins.
Once the switches are wired correctly, test the system incrementally. Begin by verifying that each switch can independently control its connected load. If you encounter any issues, check the pin connections for correct wiring and ensure that the power supply is stable and properly regulated.
Finally, pay attention to safety concerns when working with high-voltage systems. Isolate low-voltage control circuits from high-voltage sections to prevent electrical shock. Always ensure proper insulation for high-voltage components and use fuses or circuit breakers where applicable. By following these guidelines, you can successfully design a system capable of controlling multiple devices with a minimal control interface.
How to Connect a 4 Relay Module to a Microcontroller
Start by ensuring that your microcontroller has enough available output pins to control each switch independently. Typically, a 4-channel control unit will need at least 4 GPIO pins. Each pin should correspond to a specific switch input for accurate control. You may also need to connect a common ground between the microcontroller and the switching interface to ensure proper signal communication.
Next, connect the input pins of the switching unit to the microcontroller’s GPIO pins. For each switch, one GPIO pin on the microcontroller will be used to control its activation. For example, if using GPIO pins 2, 3, 4, and 5, connect each pin to the corresponding input terminal on the control interface. Make sure these pins are set to output mode in your code.
Then, connect the VCC and GND pins of the control unit to a stable power supply, ensuring that the voltage matches the specifications of the switching interface. For example, many control units work with 5V or 3.3V logic, so be sure to check the specifications before powering up. A reliable power source will help avoid malfunction or damage to components.
When connecting the switches to the loads, ensure that each load is properly rated for the voltage and current required. The normally open (NO) or normally closed (NC) terminals on the control unit will be used to control the flow of electricity to the load. Choose the correct configuration based on whether you want the load to be powered when the switch is closed or open.
For added protection, place a flyback diode across inductive loads to prevent voltage spikes when switching. This will safeguard both the microcontroller and the switches from potential damage. The diode should be connected in reverse polarity across the load terminals to allow it to dissipate excess voltage.
Once the hardware connections are complete, configure the microcontroller’s output pins in the code. For each switch, write a simple digital write function to toggle the output pin HIGH or LOW, depending on whether you want to activate or deactivate the connected load. Test each switch to verify that it functions as expected before proceeding to control multiple loads simultaneously.
Lastly, ensure that your control unit has proper heat dissipation, especially if it is switching high-power loads. Heat sinks or cooling fans may be necessary to prevent overheating. Proper safety measures should always be followed when dealing with electrical systems to avoid shorts or fires, and consider using fuses for additional protection.
