Verify the voltage rating and neutral configuration of the existing receptacle before attempting any modifications. Ensure the appliance and source are compatible with a three-wire setup to avoid overloading.
Disconnect power at the breaker and use a reliable tester to confirm no live current is present. Maintain separation between grounding and neutral paths to prevent potential short circuits or shocks during conversion.
Label each conductor clearly: typically, two hots, one neutral, and one ground. When reducing to a three-wire system, connect the ground and neutral according to local electrical codes, avoiding any shared connections that could compromise safety.
Use approved connectors and terminal blocks rated for the amperage of the circuit. Tighten all fasteners to manufacturer specifications to maintain consistent contact, as loose connections are a primary cause of heat buildup and failure.
Test continuity and polarity after completing the modification. Ensure all devices operate correctly, and confirm the absence of unexpected voltage between neutral and ground before re-energizing the circuit.
Identifying Wire Functions and Outlet Types
Confirm the role of each conductor before making any modifications. Typically, one line carries the neutral, two serve as hot conductors, and one functions as a ground. Accurate identification prevents shorts and ensures devices receive correct voltage.
Inspect the outlet housing carefully. Older models often feature separate ground terminals, while newer units combine grounding with the neutral. Note the manufacturer markings to match each conductor correctly.
Use a multimeter to measure voltage and continuity. Verify that each hot line is providing the expected load, the neutral shows low resistance, and the ground has an uninterrupted path to the panel.
Label the conductors as hot, neutral, and ground immediately after testing. This reduces errors during conversion and ensures that subsequent connections remain consistent and code-compliant.
Recognize outlet variations by shape and screw placement. Three-terminal receptacles differ from four-terminal models, affecting how connections are reassigned when consolidating lines.
Double-check amperage ratings on both the outlet and connected appliance. Matching the current capacity prevents overheating and extends the service life of the connection.
Document the layout before disassembly. Photograph or sketch conductor positions and terminal arrangements. This reference ensures accurate reconnection and simplifies troubleshooting after installation.
Methods to Convert Four-Conductor to Three-Conductor Connections

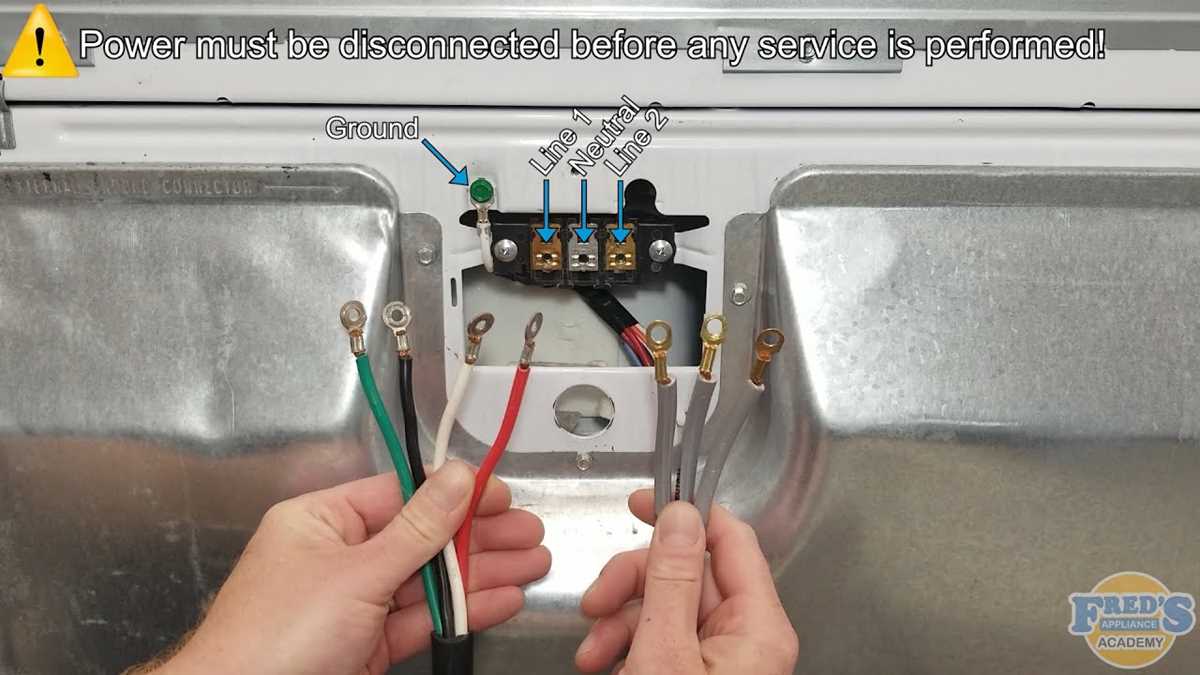

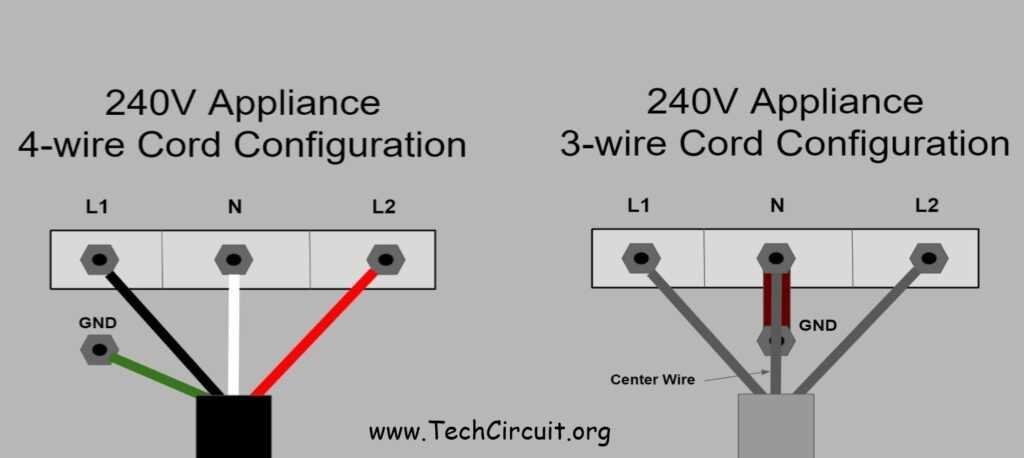

Connect the neutral and ground together at the appliance terminal. This method allows the unit designed for a four-conductor line to operate safely with a three-conductor feed. Ensure the bonding screw is properly secured to maintain continuity.
Use a three-wire cord rated for the device’s amperage. Avoid generic replacements; choose conductors with correct insulation and temperature ratings. This prevents overheating and reduces the risk of electrical failure.
Label each line clearly after modification. Assign one as neutral and two as hot lines to match the appliance’s internal configuration. This simplifies future inspections and maintenance.
Consider installing a dedicated grounding path back to the panel if the existing system relies on metal conduit. Running a separate ground wire ensures compliance with current safety codes and reduces shock hazards.
- Alternative approaches include:
- Using a conversion kit provided by the appliance manufacturer.
- Reconfiguring terminal connections according to the appliance manual.
- Installing a four-to-three adapter approved for residential use.
Always test continuity and voltage after completing the conversion. Verify that the neutral and ground are bonded correctly, and each hot line supplies proper voltage. Conduct a load test to confirm reliable operation under normal conditions.
Safety Precautions and Verification After Conversion
Ensure the main breaker is turned off before starting any inspection or adjustment. Verify with a voltage tester that no current is present in the feed lines to prevent accidental shock.
Check that the neutral and grounding conductors are securely bonded at the appliance terminal. Loose connections can lead to arcing, overheating, or risk of electrical fires during operation.
Use a multimeter to measure line voltage and continuity after completing the modification. Confirm that each hot line delivers the correct voltage and that the neutral-ground connection maintains proper continuity. Document readings for future reference.
Perform a test run with the appliance under normal load conditions. Observe for unusual sounds, flickering indicators, or overheating at the terminals. If any irregularities appear, shut off power immediately and recheck connections before resuming use.
